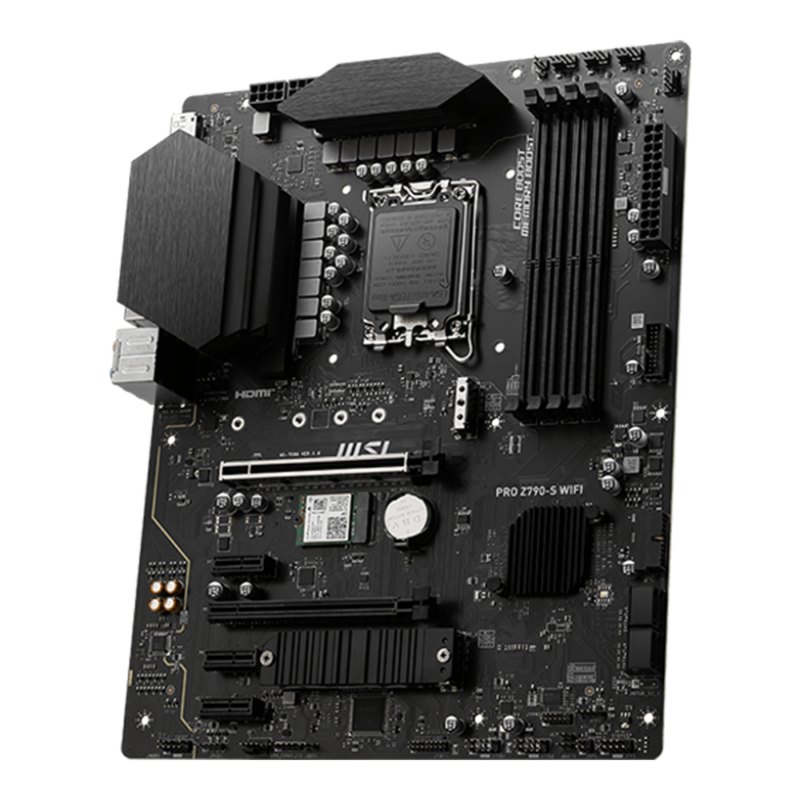

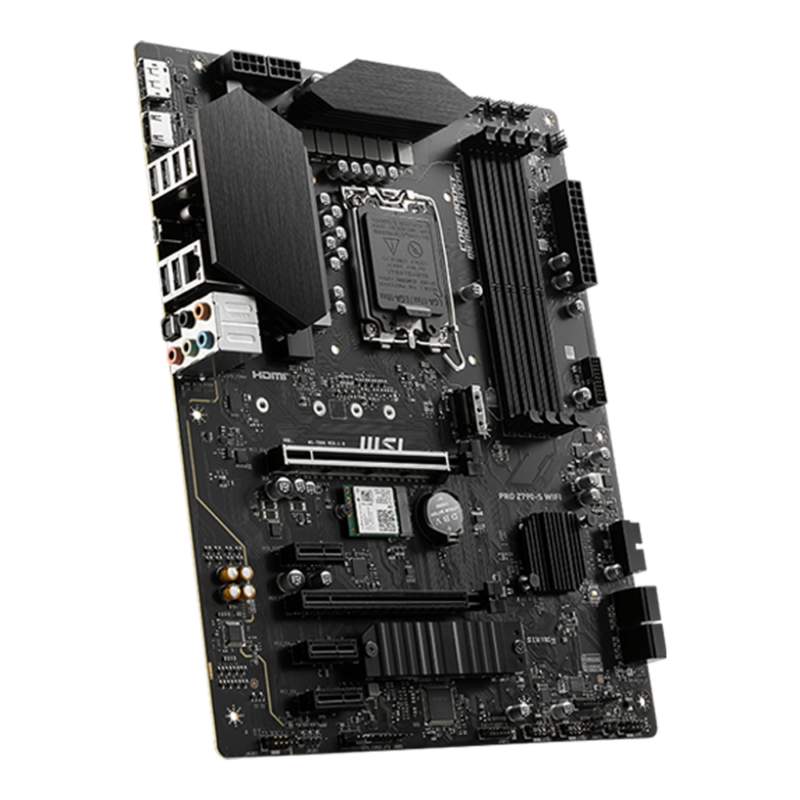

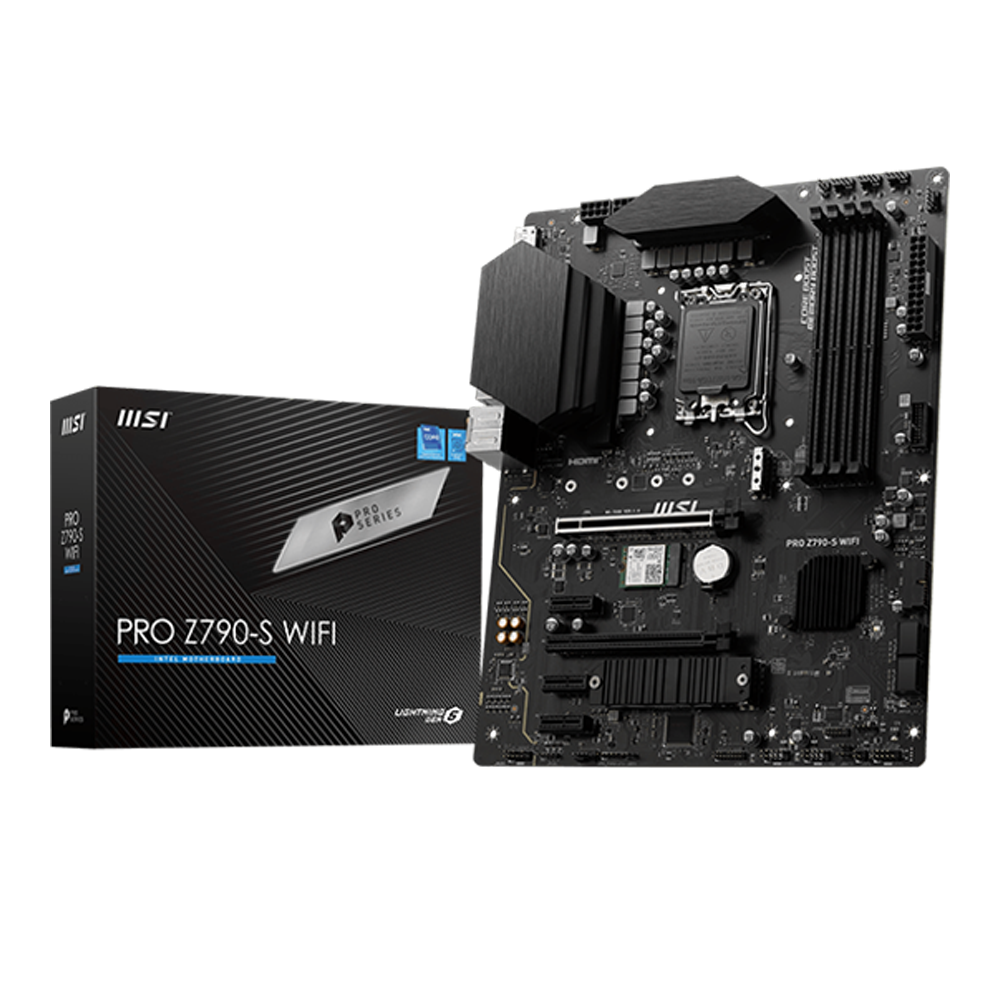

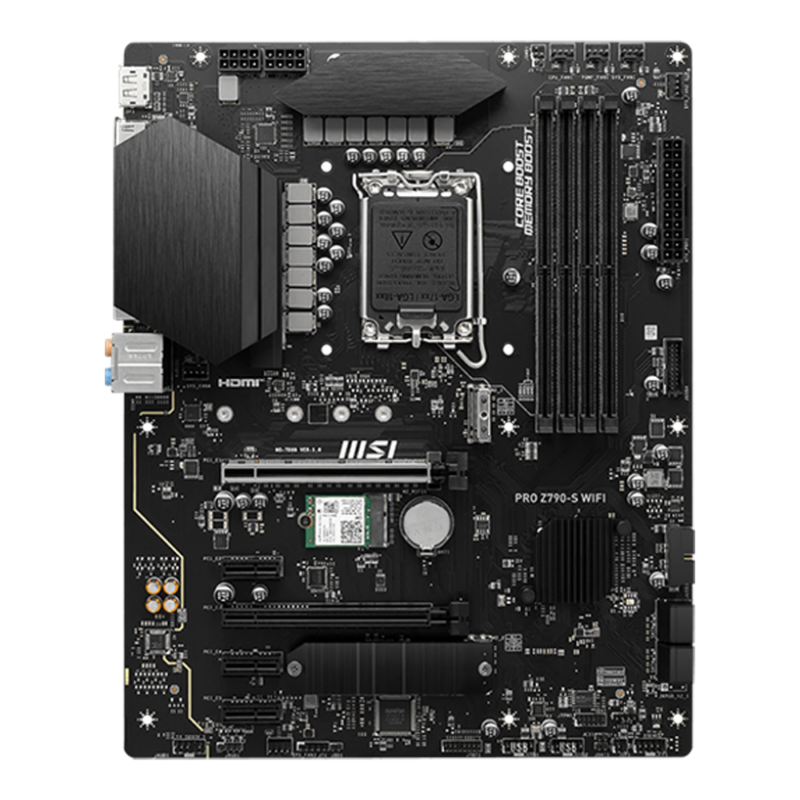

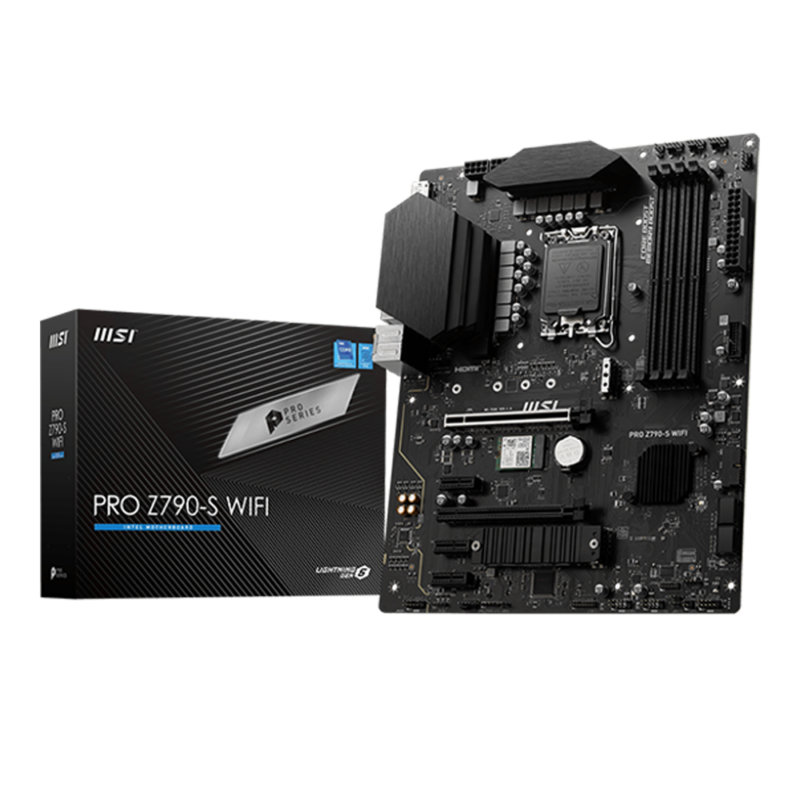

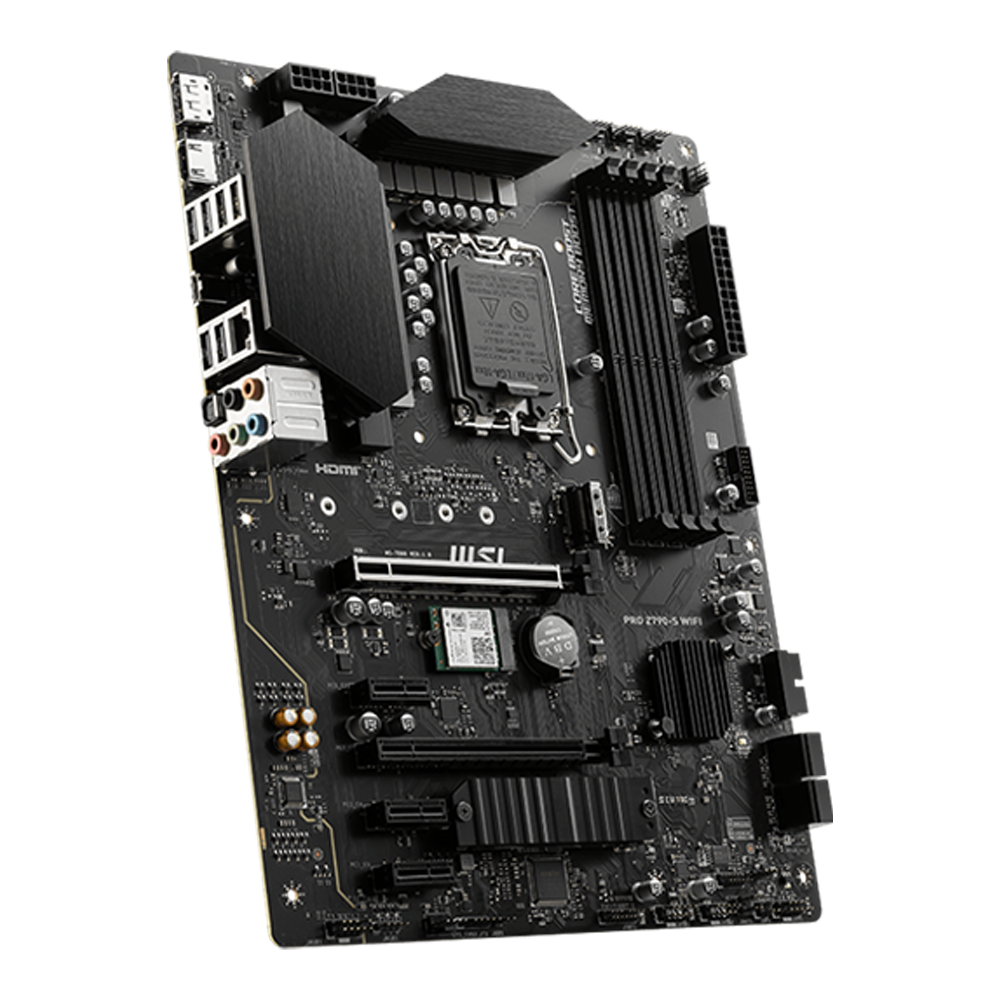

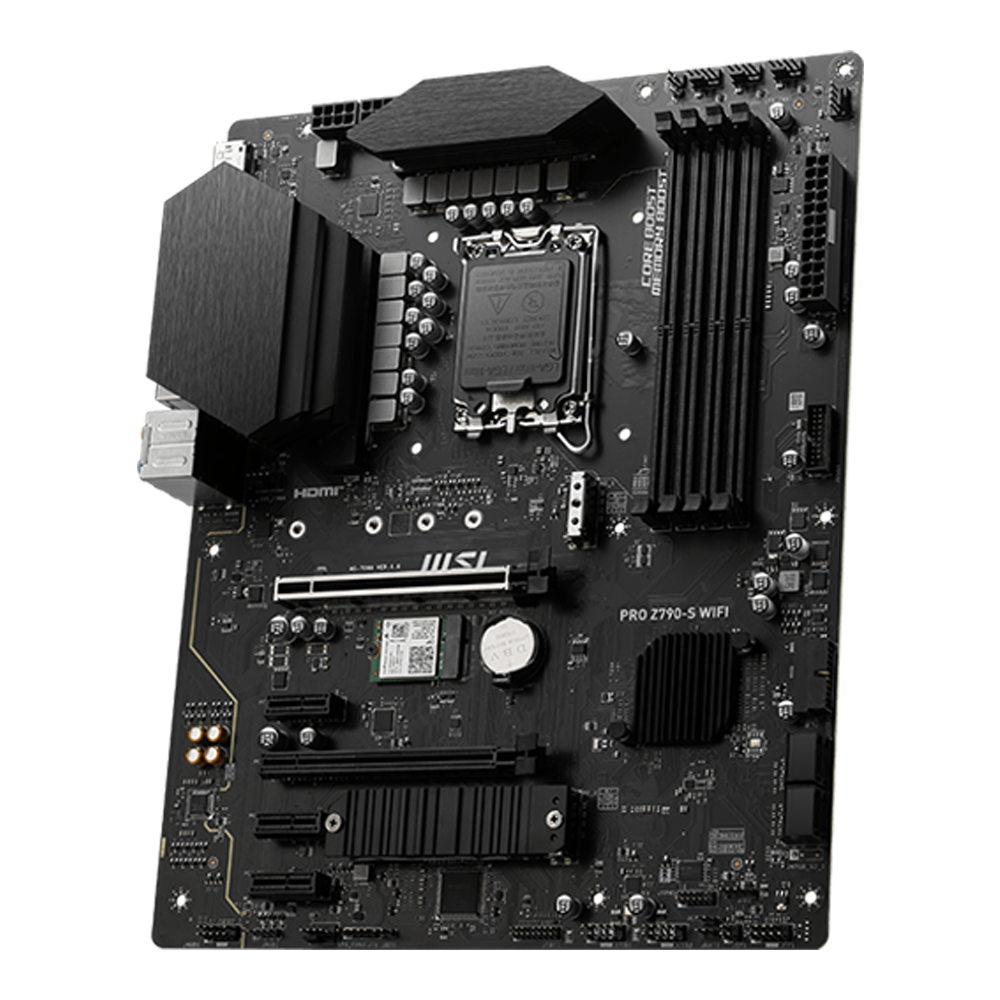

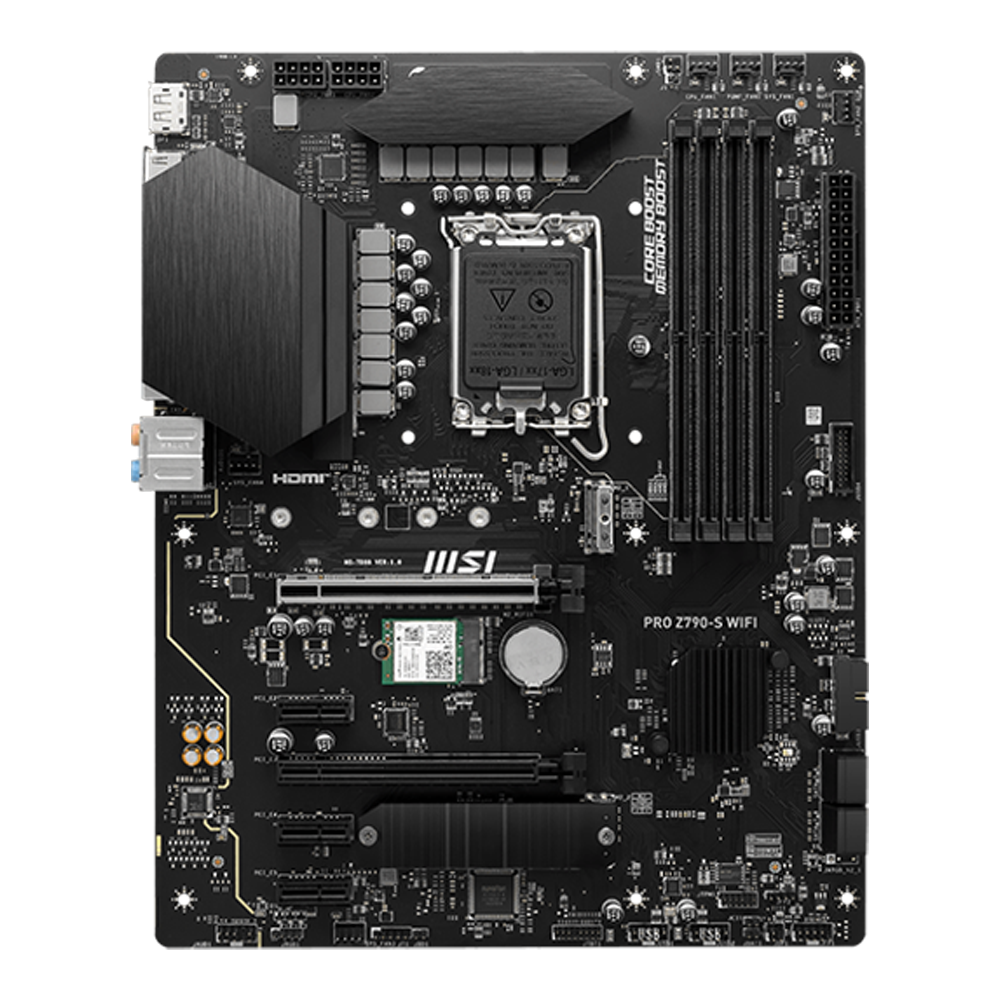

PRO Z790-S WIFI

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
  • Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Brand

MSI
Model

Z790-S
Chipset

Intel Z790 Chipset
Socket

LGA 1700
Memory Channel

Dual Channel DDR5
DIMM Slots

4
Max Memory

256 GB
Expansion Slots

2x PCI-E x16 slot
3x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA Connector

4x SATA 6G
M.2 Slot

4
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

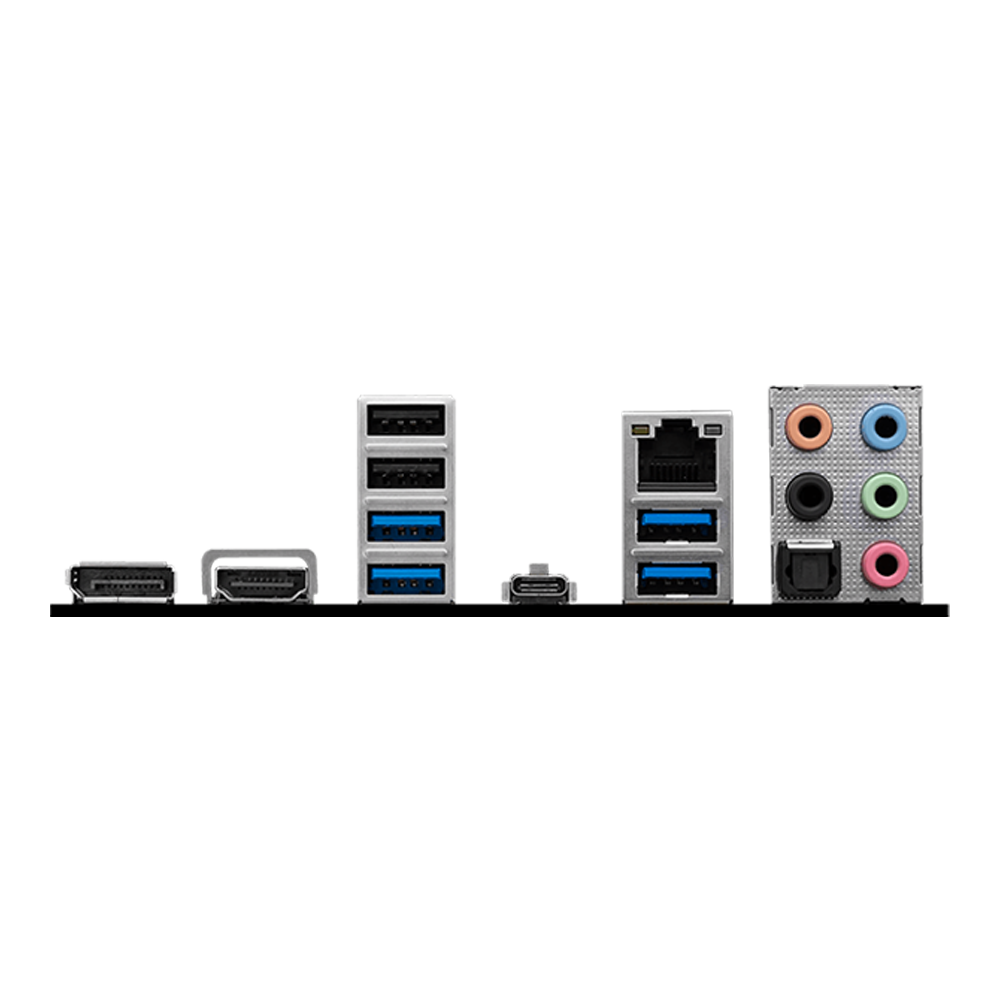

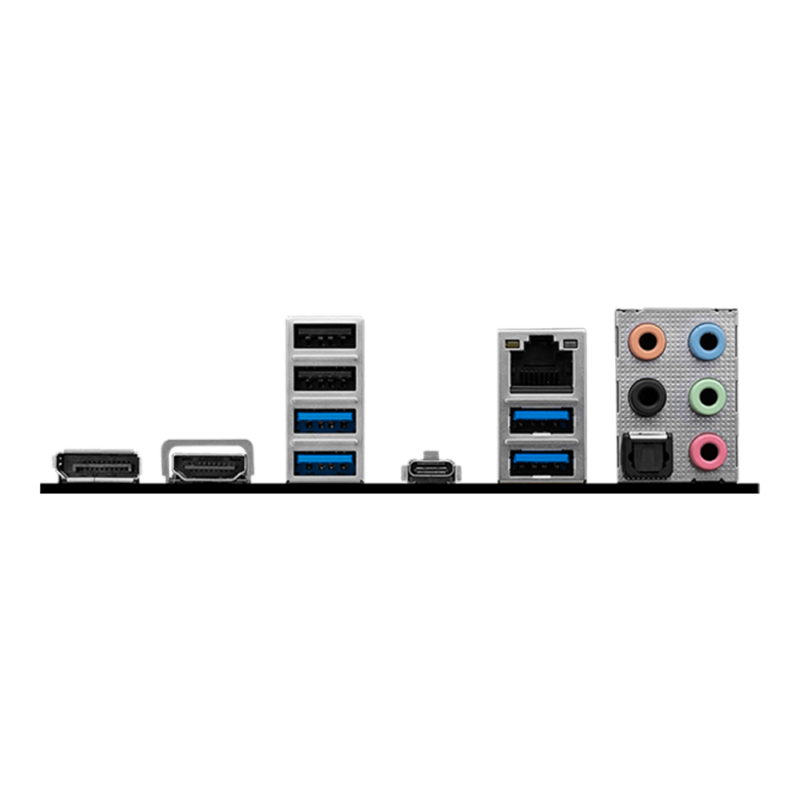

USB Ports

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O Ports

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
Graphic

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN

Realtek RTL8125BG 2.5Gbps LAN
Wireless LAN and Bluetooth

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Accessories

2 x SATA cables
2 x M.2 clips
2 x WIFI Antennas
1 x WIFI Bracket
1 x IO Shield
1 x Quick installation guide
1 x Color cable stickers sheet
Operating System

Supports Windows 10 64-bit and Windows 11 64-bit
Form Factor

ATX (243.84 mm x 304.8 mm)
Warranty

1 Year
