Brand

MSI

Model

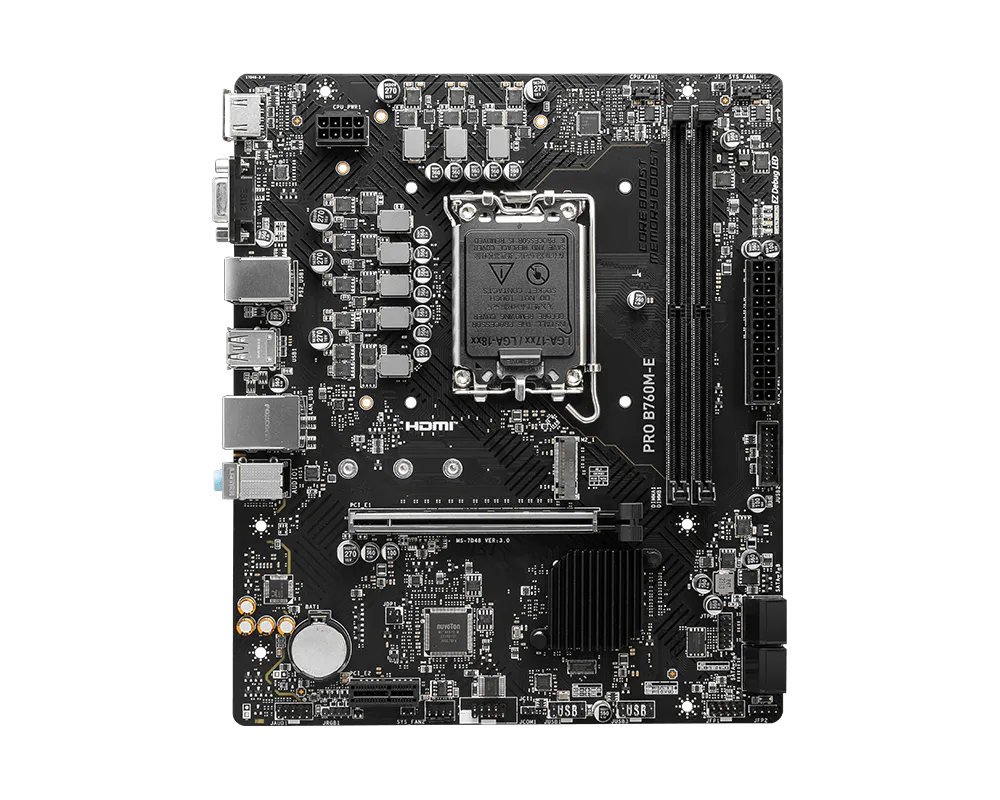

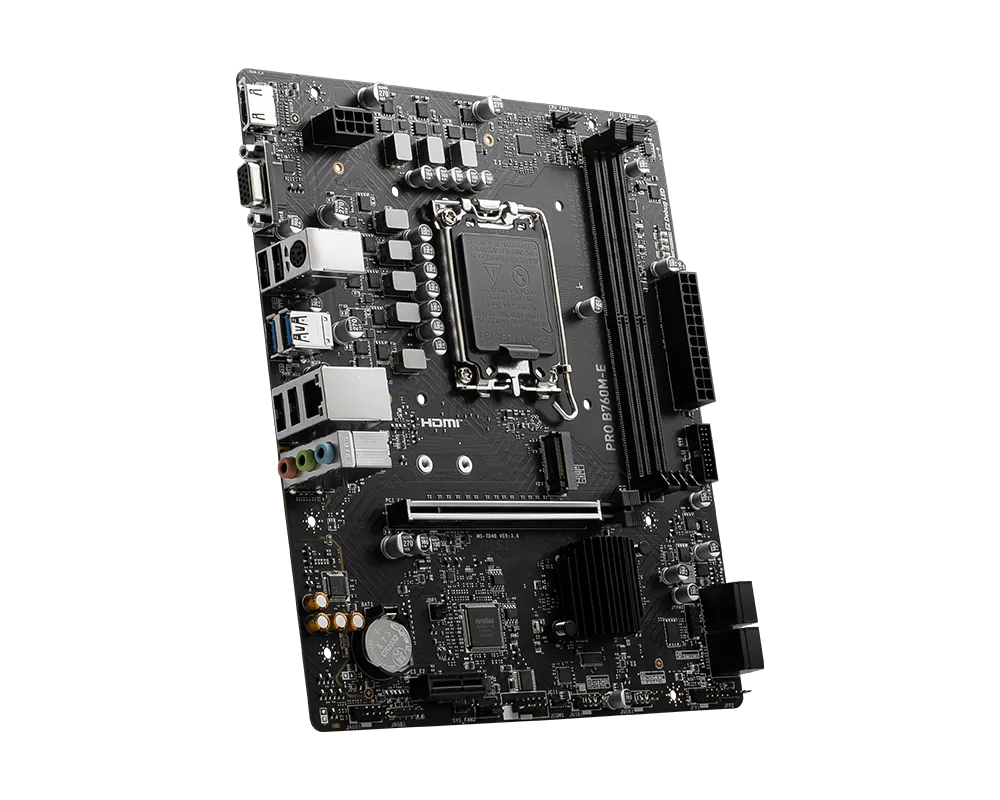

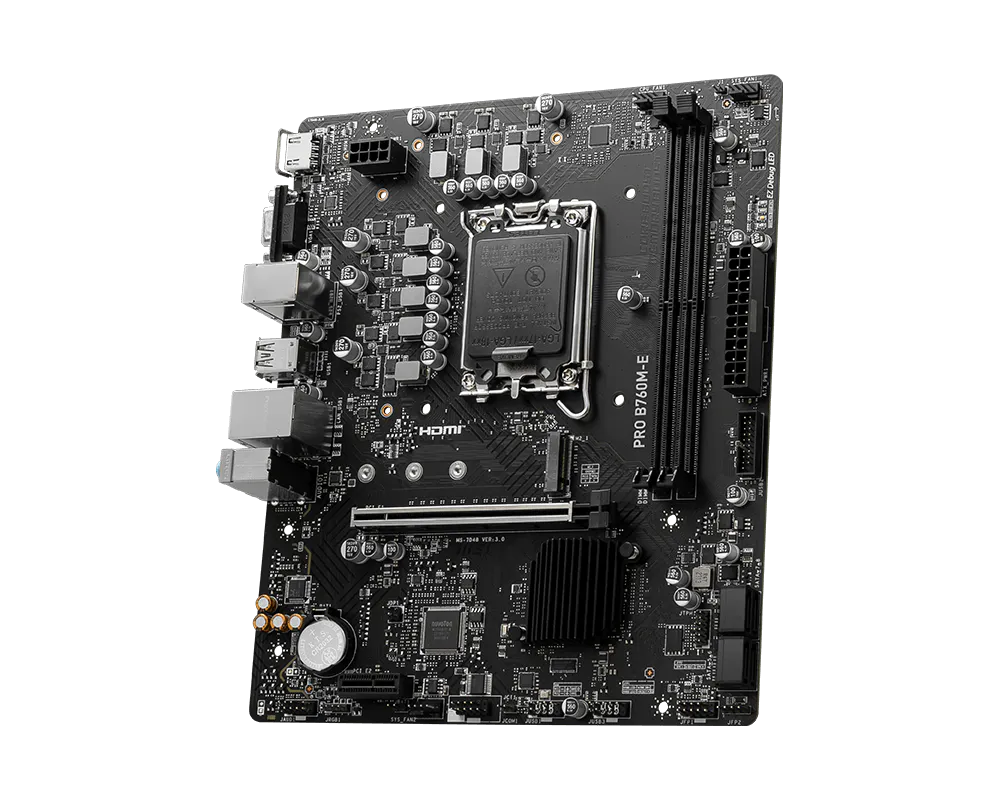

PRO B760M-E

Chipset

Intel B760

Socket

LGA 1700

Memory Channel

Dual Channel DDR4

DIMM Slots

2

Max Memory

64 GB

Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

SATA Connector

4x SATA 6G

M.2 Slot

1

Raid

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

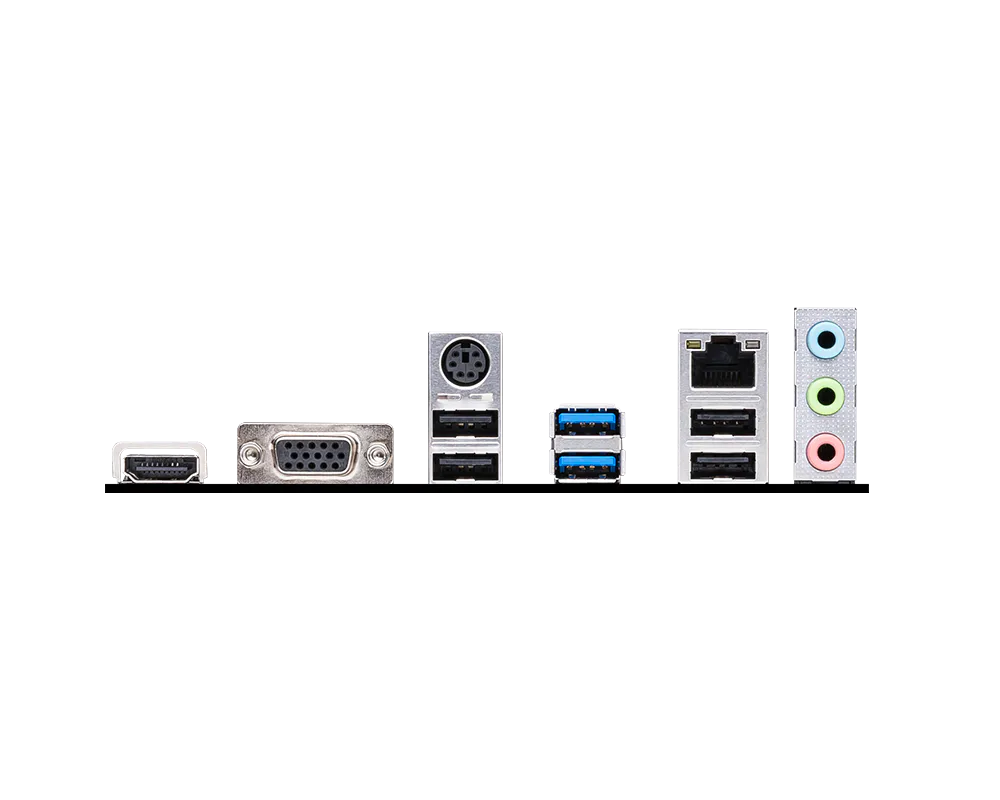

USB Ports

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

VGA Port

1 (Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz)

HDMI

1 (Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz)
Depends on processor graphics support

LAN

Realtek RTL8111H Gigabit LAN

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports

Operating System

Supports Windows 10 64-bit and Windows 11 64-bit

Form Factor

Micro-ATX

PCB Dimension (LxW)

200mmx236.16mm

Warranty

1 Year
