Brand

MSI
Model

B760M Project Zero
Chipset

Intel B760
CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory Channel

Dual Channel DDR5
DIMM Slots

4
Max Memory

256 GB
Memory Support

DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Expansion Slots

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA Connector

4x SATA 6G
M.2 Slot

2x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Raid

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

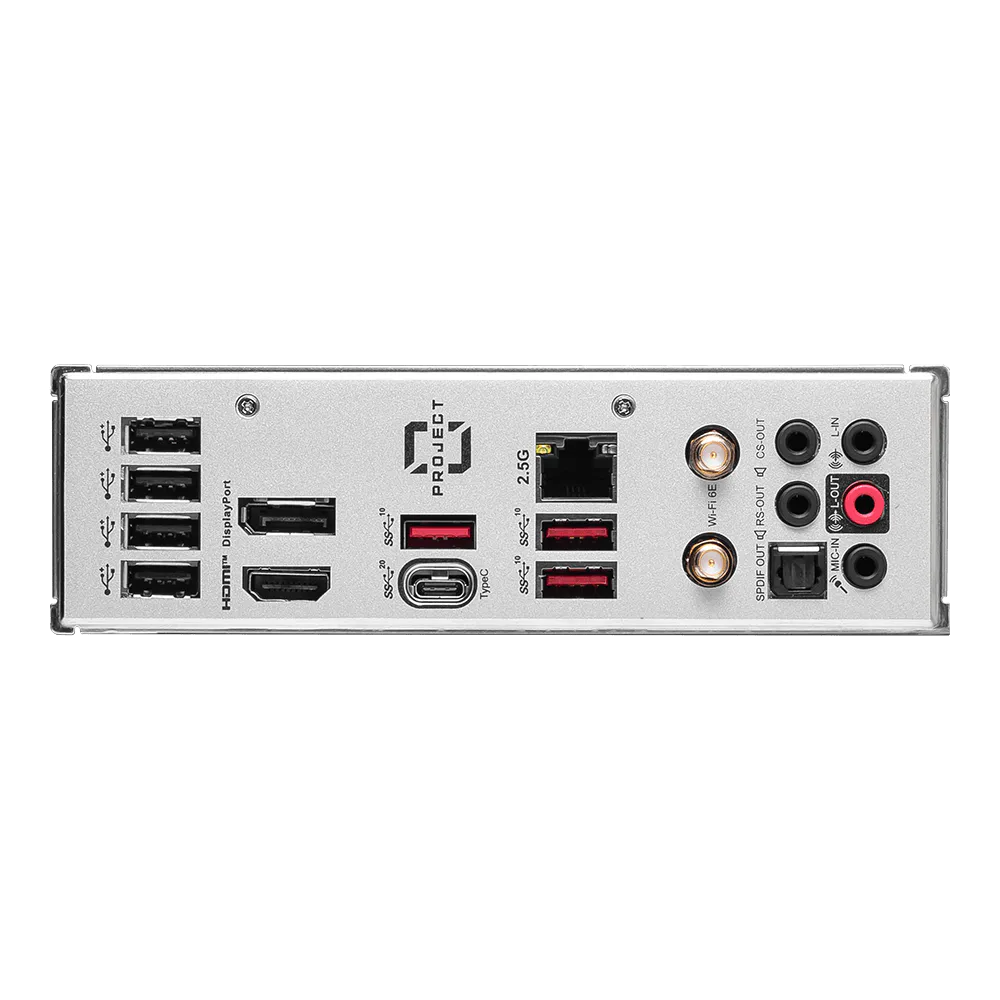

USB Ports

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
DisplayPort

1 (Support DP 1.4, maximum resolution of 4K 60Hz)
HDMI

1 (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz)
LAN

Realtek® 2.5Gbps LAN
Wireless LAN

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth

Ver. 5.3
Audio

Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED Features

4x EZ Debug LED
Operating System

Supports Windows 10 64-bit and Windows 11 64-bit
Form Factor

Micro-ATX
PCB Dimension (LxW)

243.84mmx243.84mm
Warranty

1 Year
