Brand

Gigabyte
Model

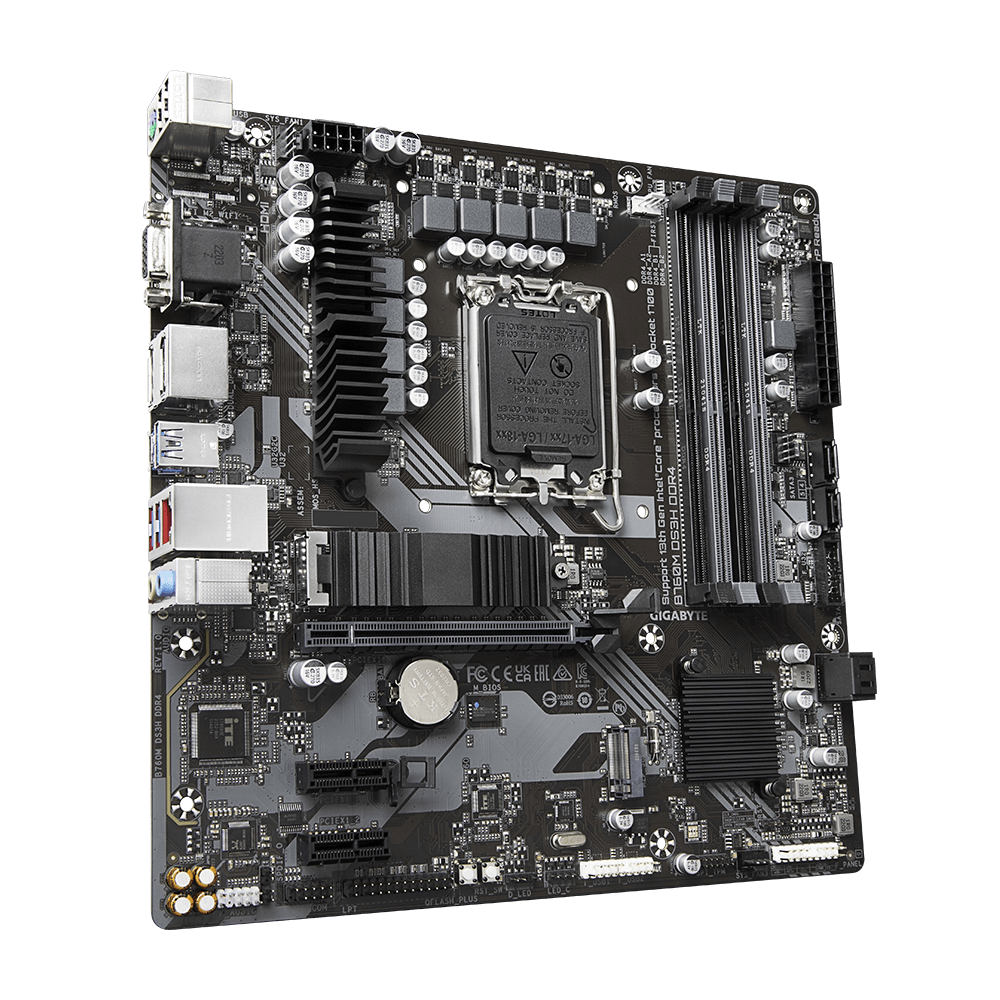

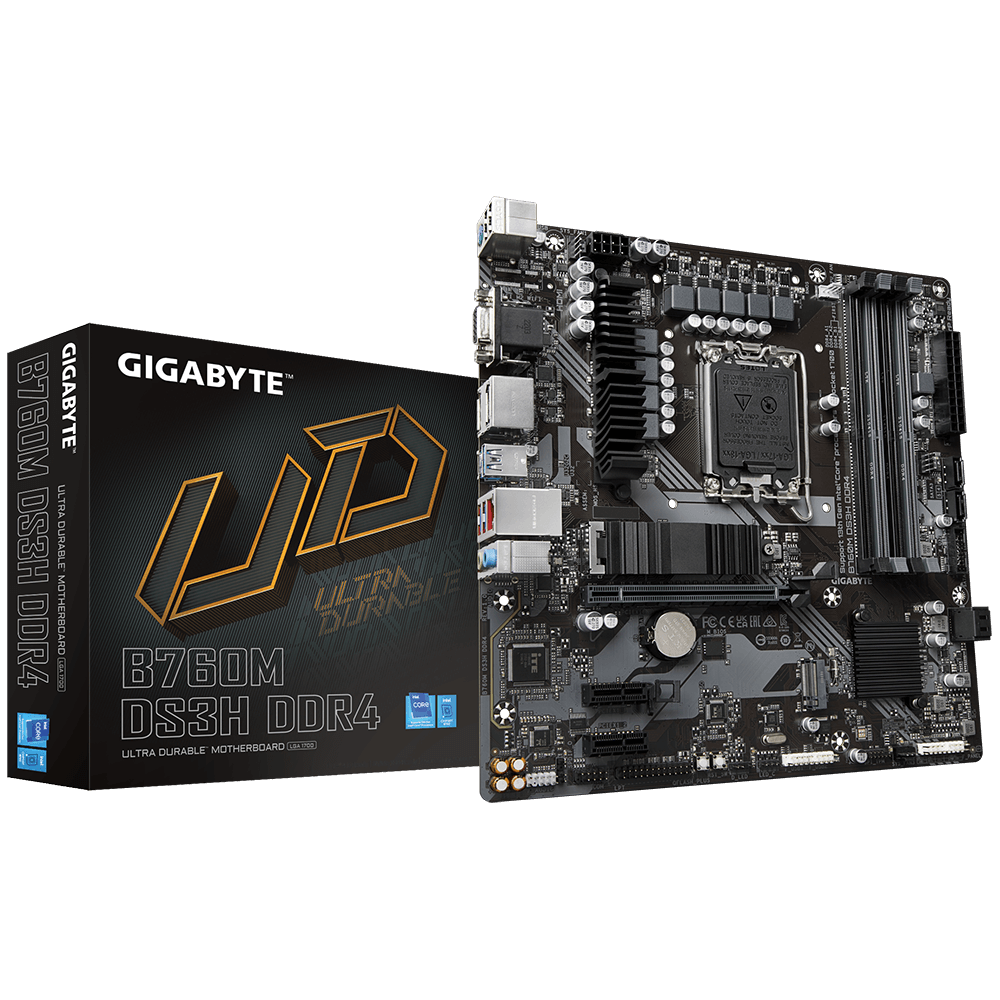

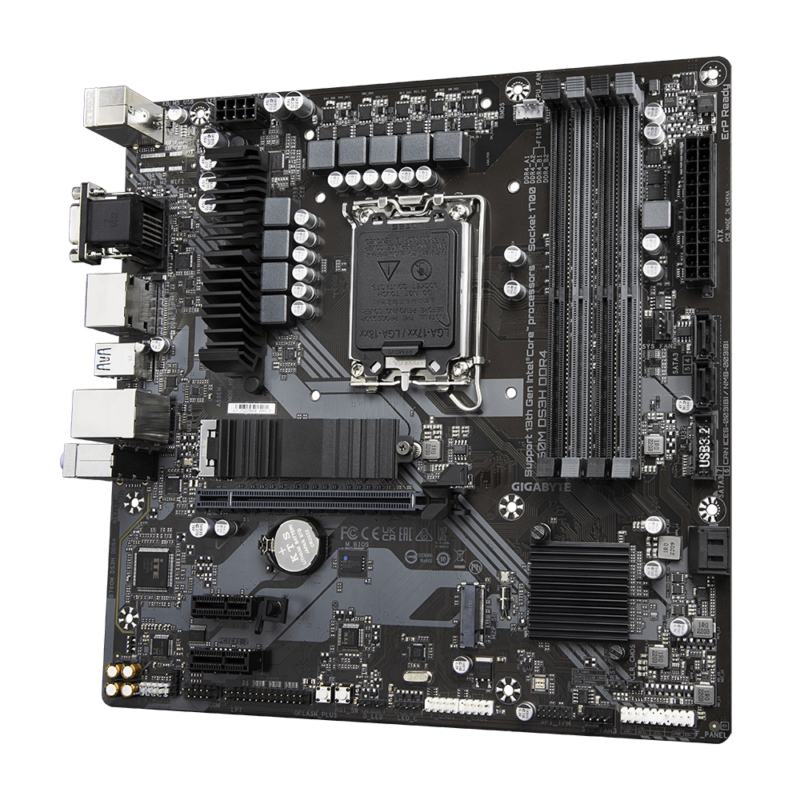

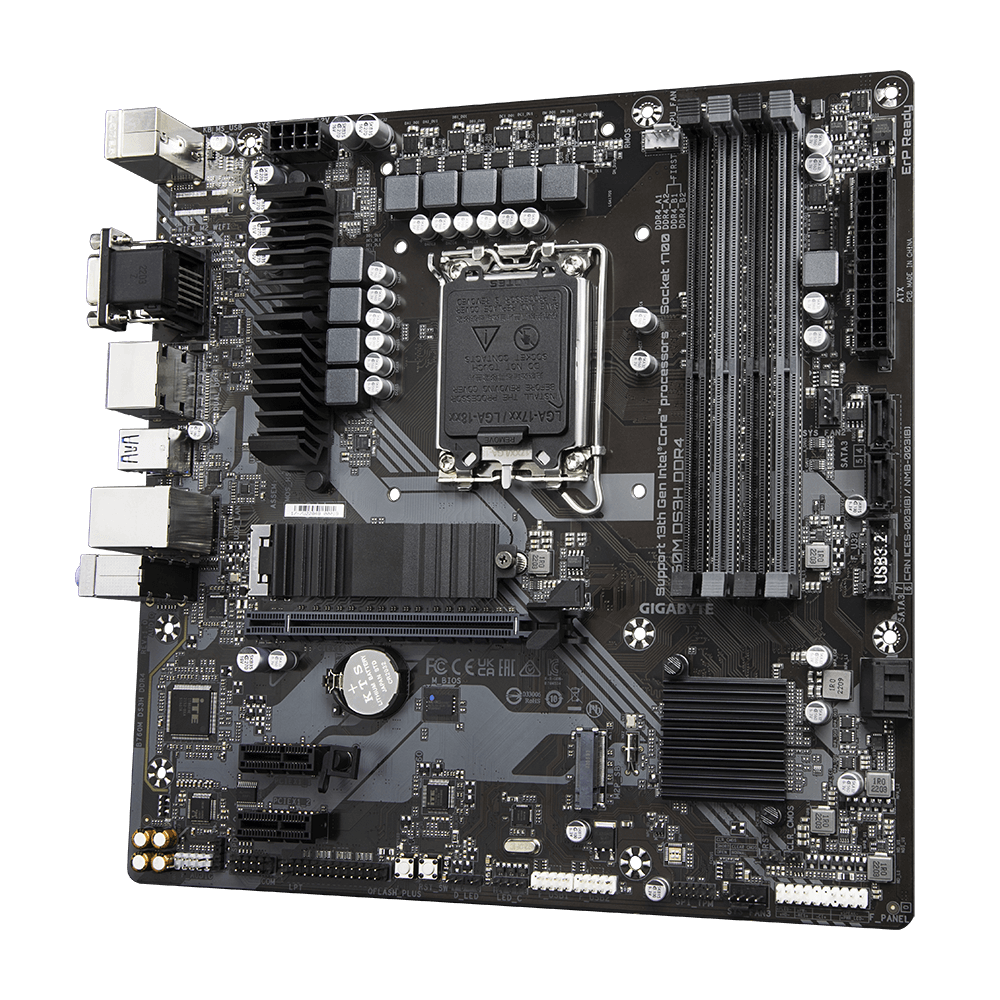

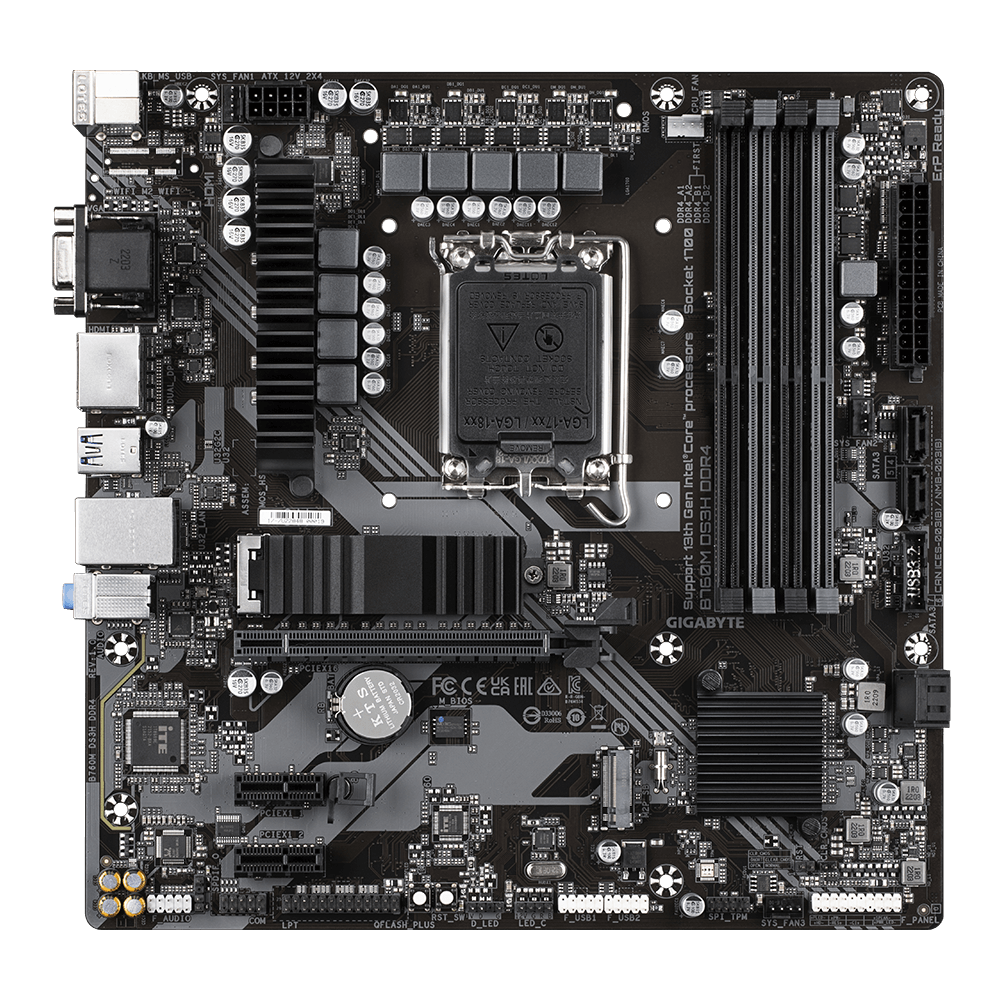

B760M DS3H
Chipset

Intel B760 Express Chipset
Socket

LGA1700
Memory Channel

Dual Channel DDR4
DIMM Slots

4
Max Memory

Up to 128 GB
Expansion Slots

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Onboard Graphics

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
USB

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty

1 Year
