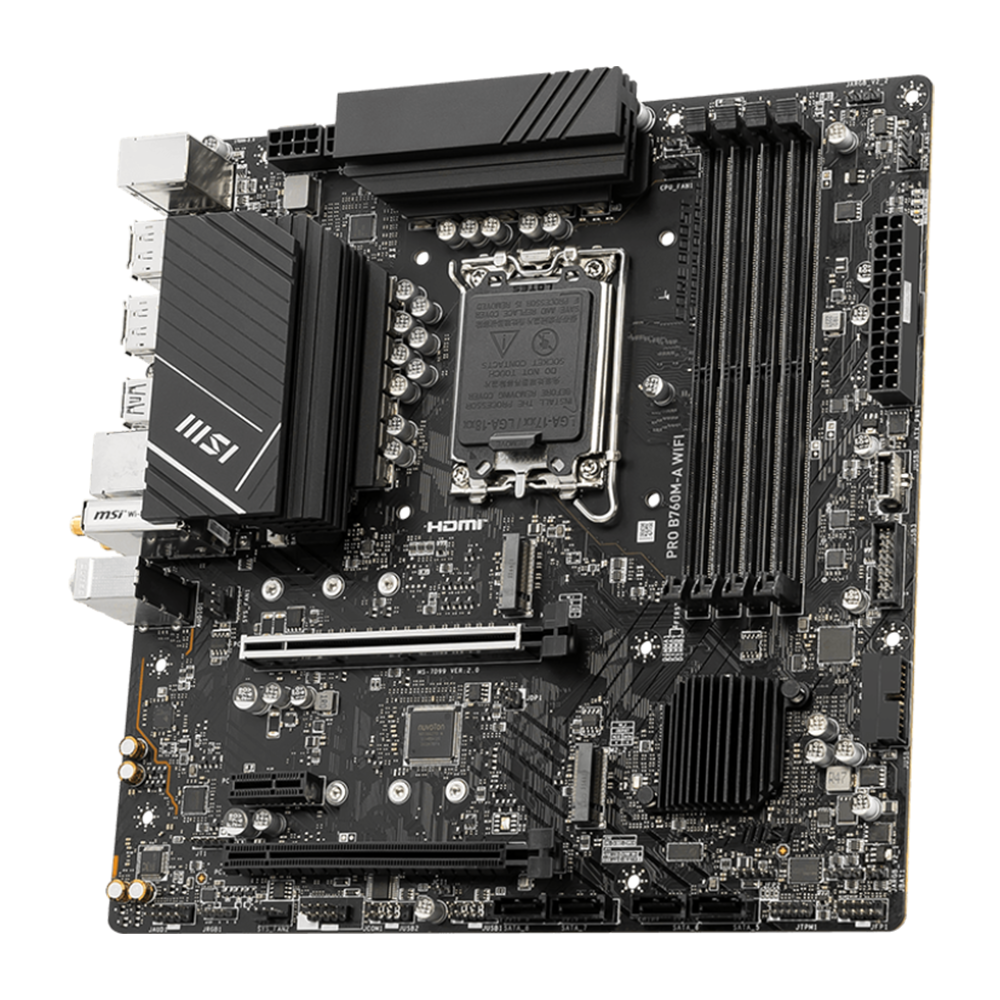

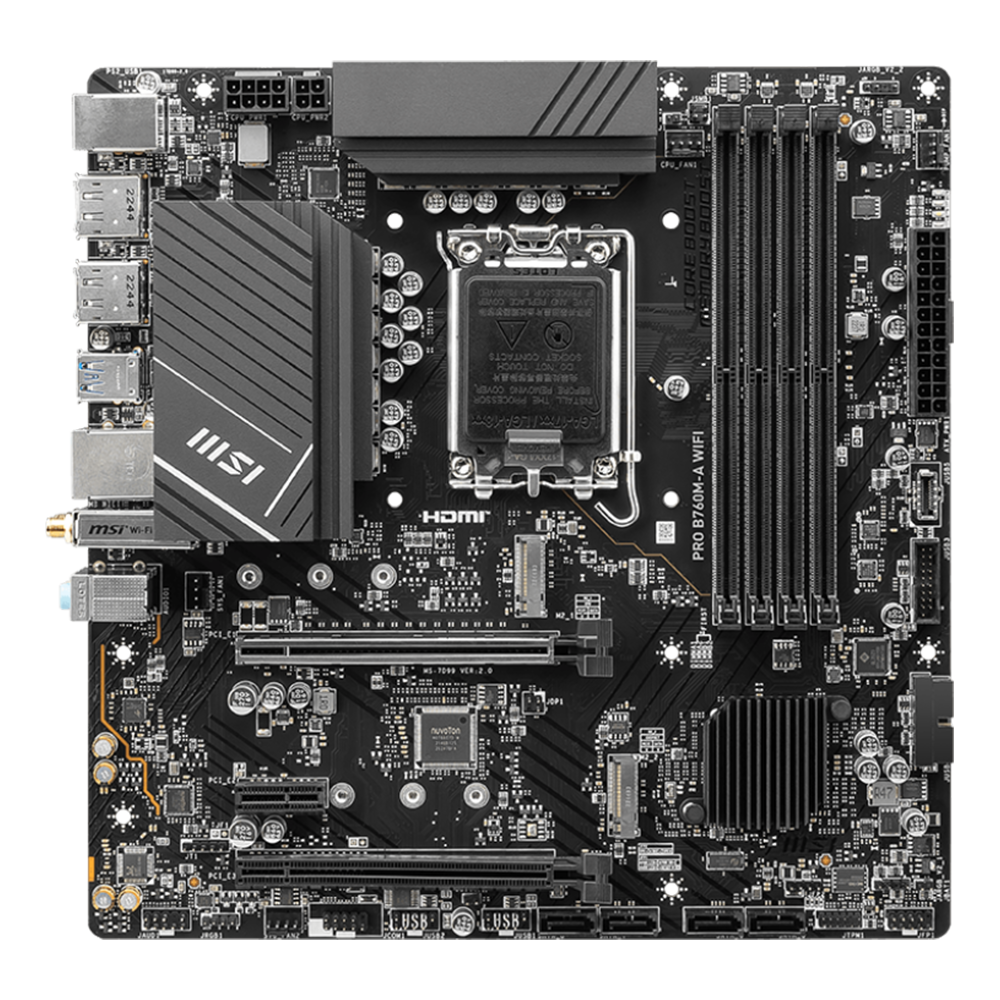

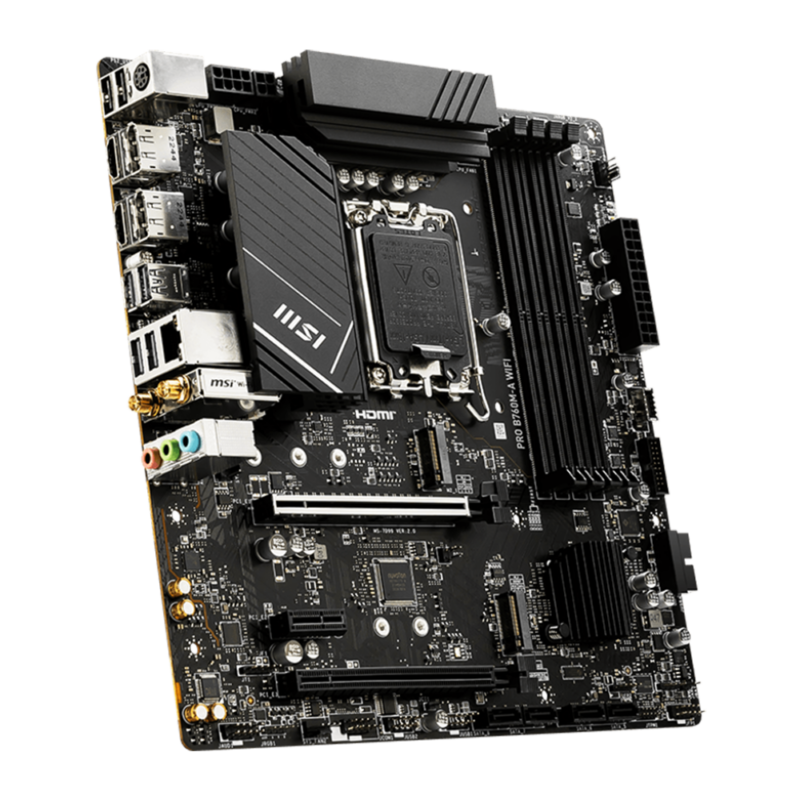

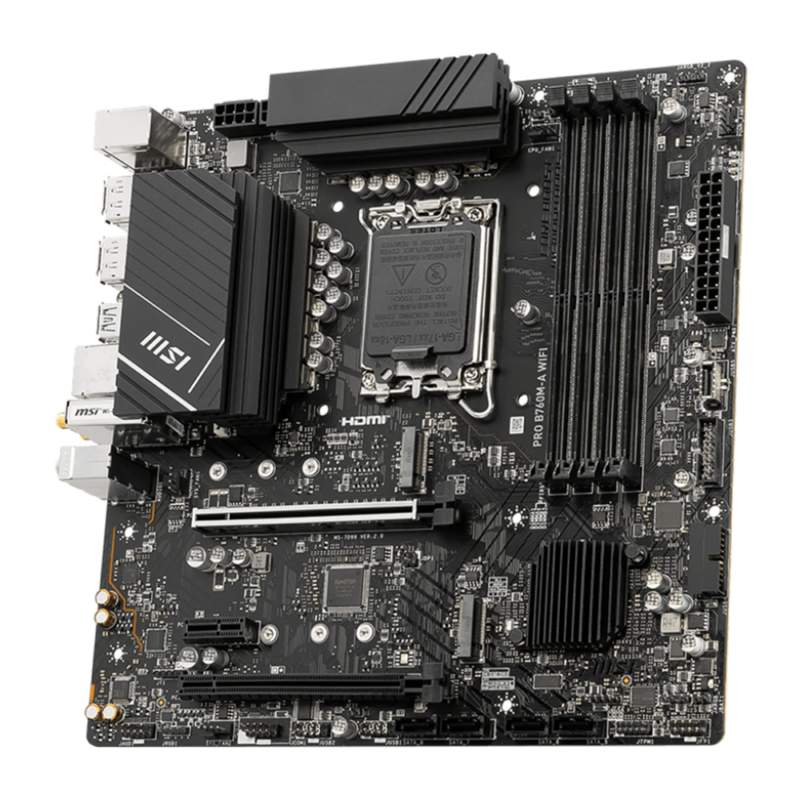

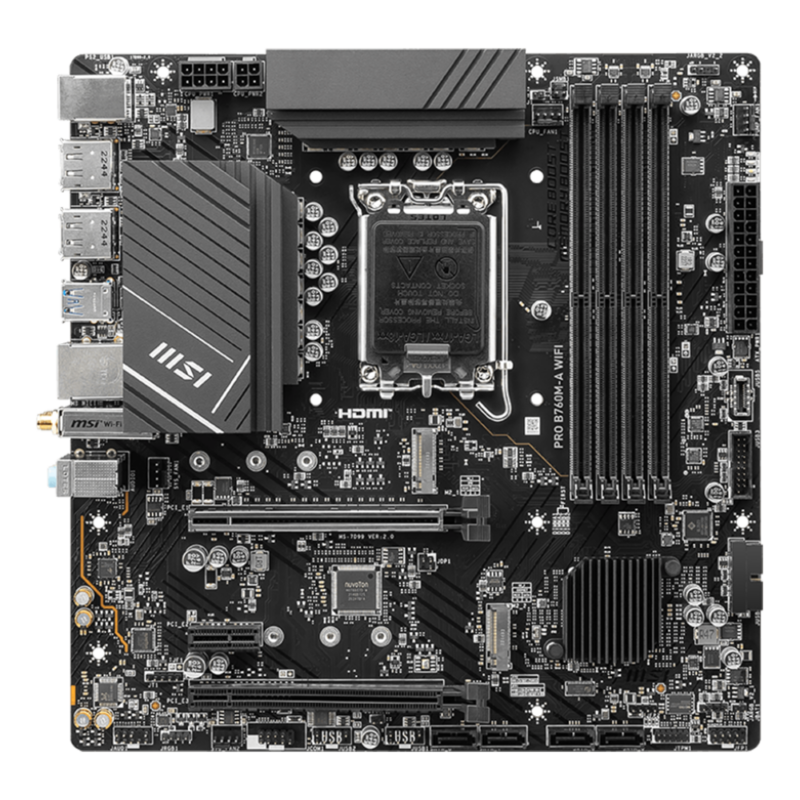

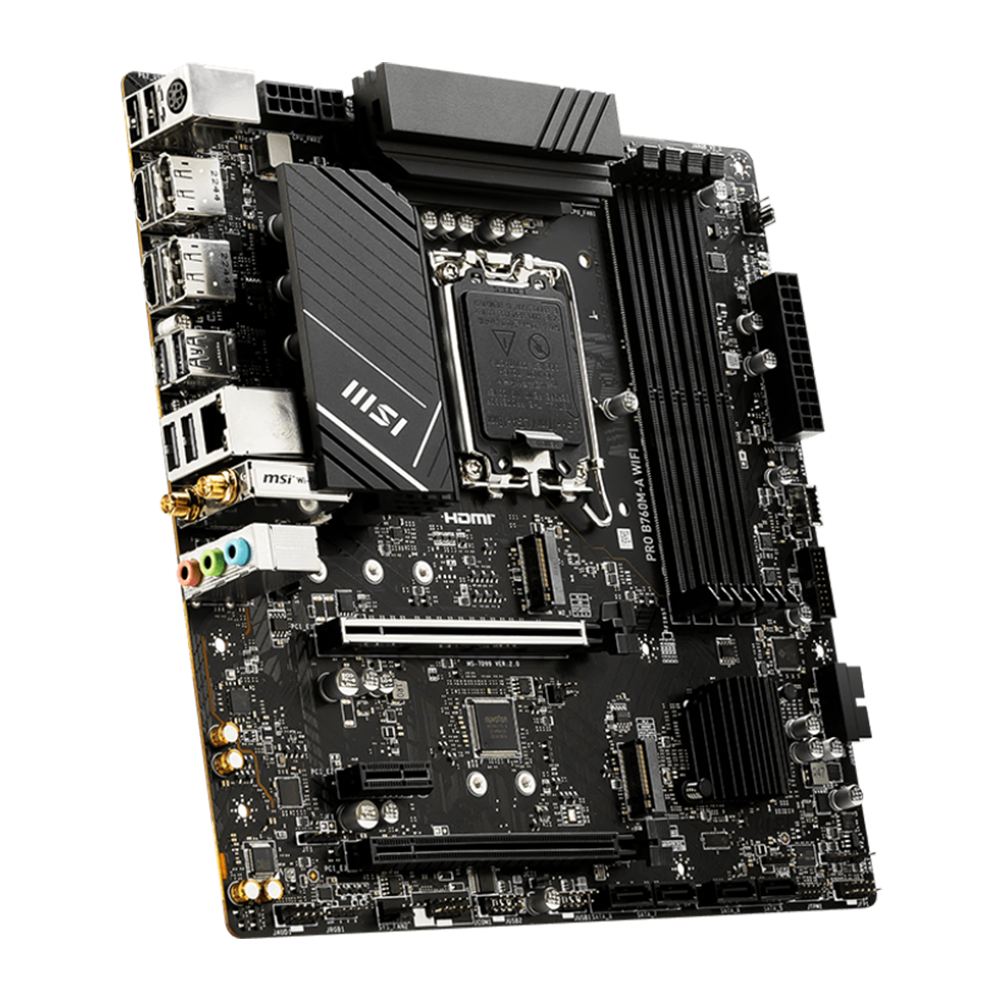

  • MSI Pro B760M-A WIFI, DDR5, 13th Gen Motherboard
Brand

MSI
Model

PRO B760M-A
Chipset

Intel B760
Socket

LGA 1700
Memory Channel

Dual Channel DDR5
DIMM Slots

4
Max Memory

192 GB
Expansion Slots

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA Connector

4x SATA 6G
M.2 Slot

2
Raid

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

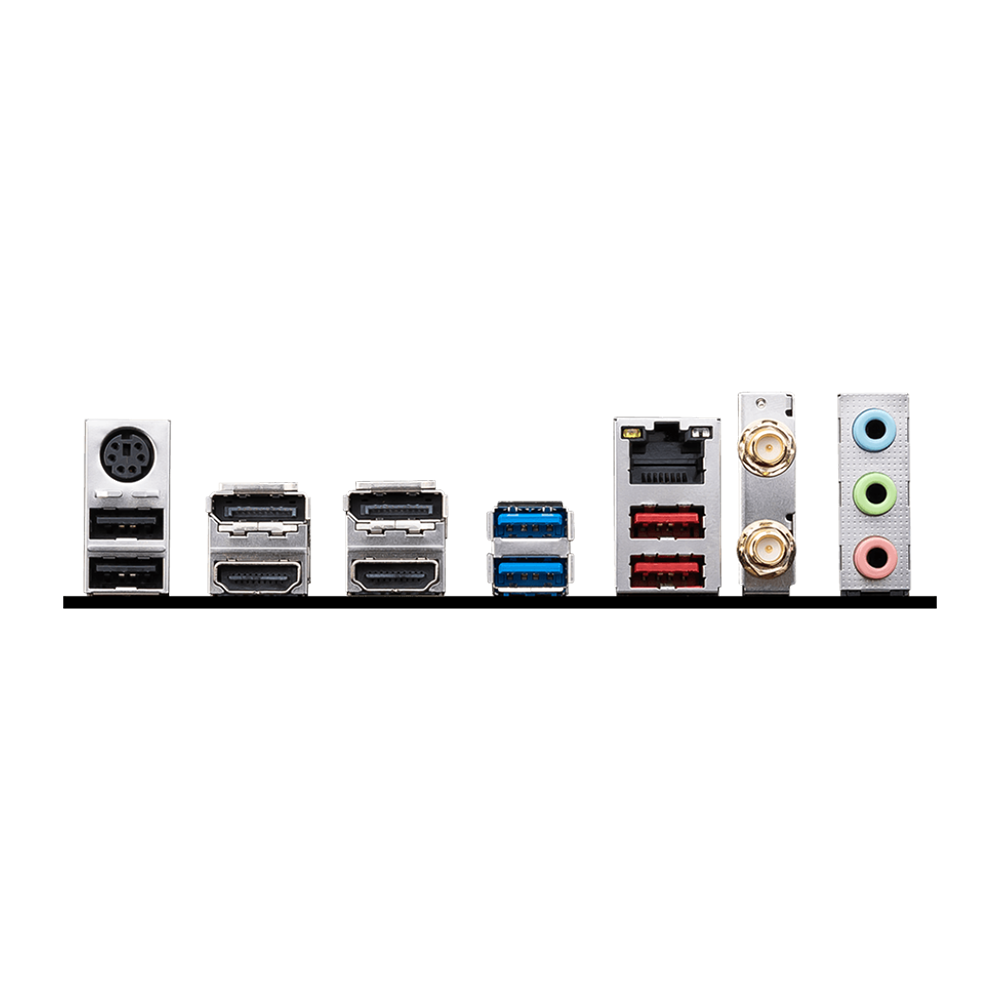

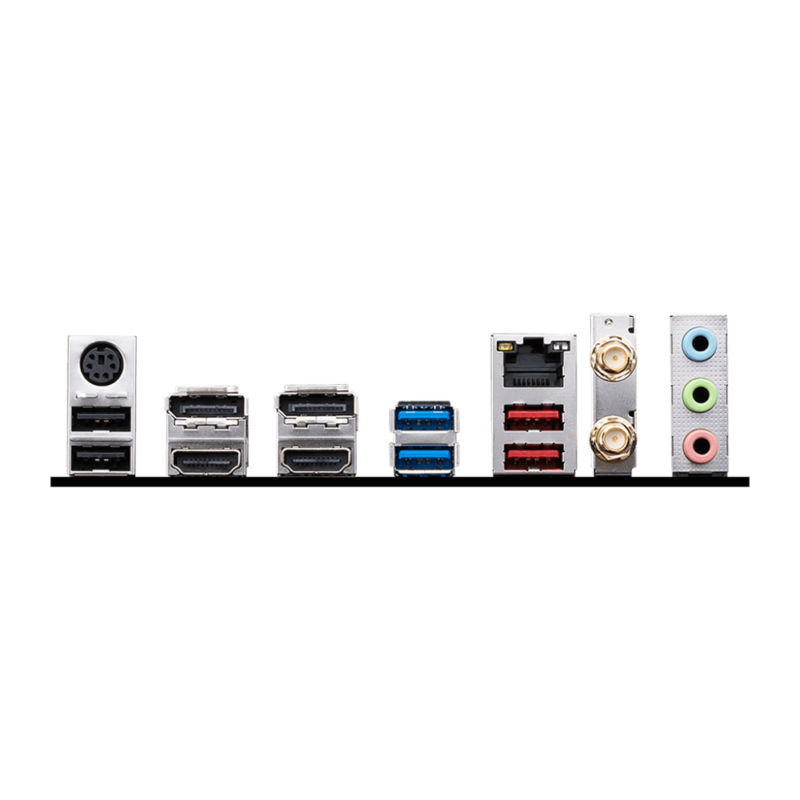

USB Ports

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
DisplayPort

2 (Support DP 1.4, maximum resolution of 4K 60Hz)
Graphics specifications may vary depending on the CPU installed
HDMI

2 (Support HDMI™ 2.1, maximum resolution of 4K 60Hz)
Graphics specifications may vary depending on the CPU installed.
LAN

Realtek® RTL8125BG 2.5G LAN
Wireless

Intel® Wi-Fi 6E
(The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax)
Bluetooth

5.3, FIPS, FISMA
Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
Operating System

Supports Windows 10 64-bit and Windows 11 64-bit
Form Factor

Micro-ATX
PCB Dimension (LxW)

243.84mm x 243.84mm
Warranty

1 Year
