Brand

MSI
Model

A520M-A PRO
Chipset

AMD A520
Socket

AMD AM4
CPU Support

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Memory Support

2x DDR4 memory slots, support up to 64GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
DIMM Slots

2
Max Memory

Up to 64 GB
Onboard Graphics

1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
Support HDCP 1.4 & 2.3
1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
Maximum shared memory of 16 GB
Storage Interface

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Raid Support

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio

1x Realtek® RTL8111H Gigabit LAN controller
Internal I/O Ports

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper

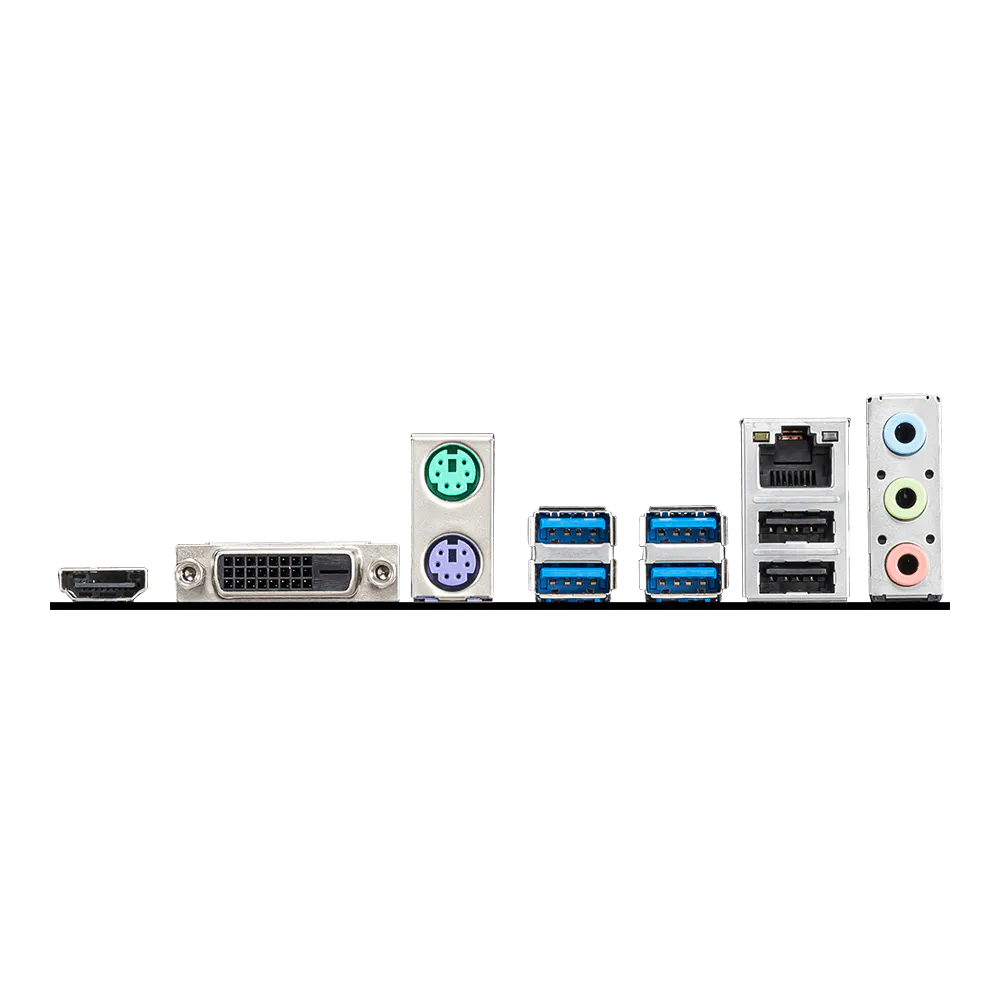

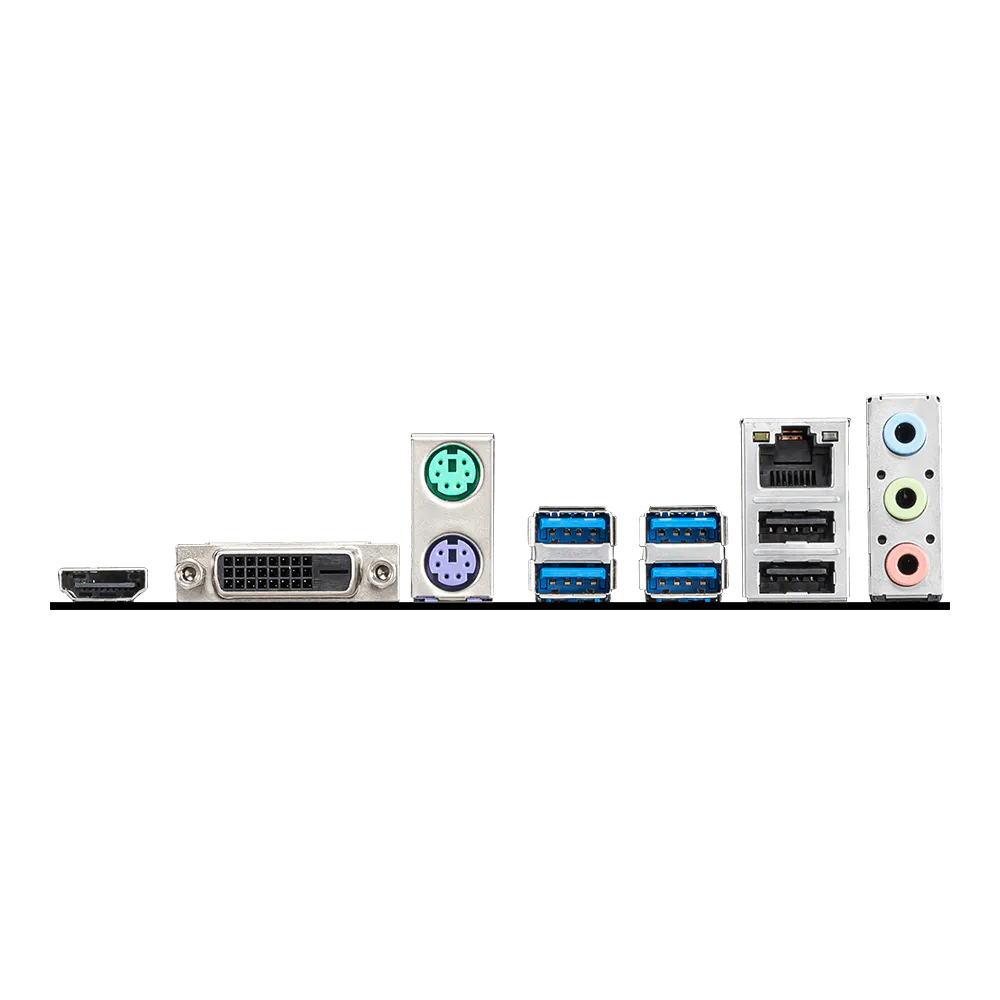

Back Panel Ports

LAN port
HDMI™
DVI-D
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0 Ports
Audio Connectors
Form Factor

Micro ATX Form Factor; 23.6cm x 20 cm
Warranty

1 Year
