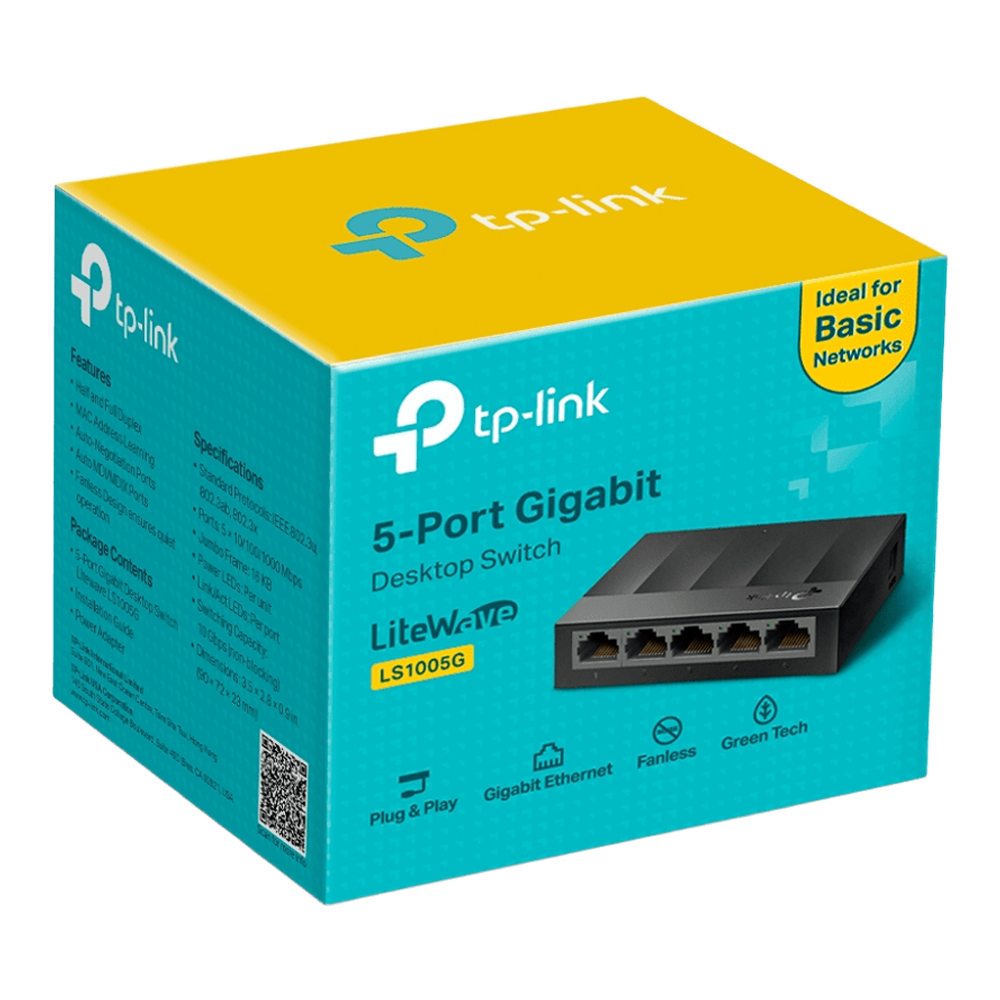

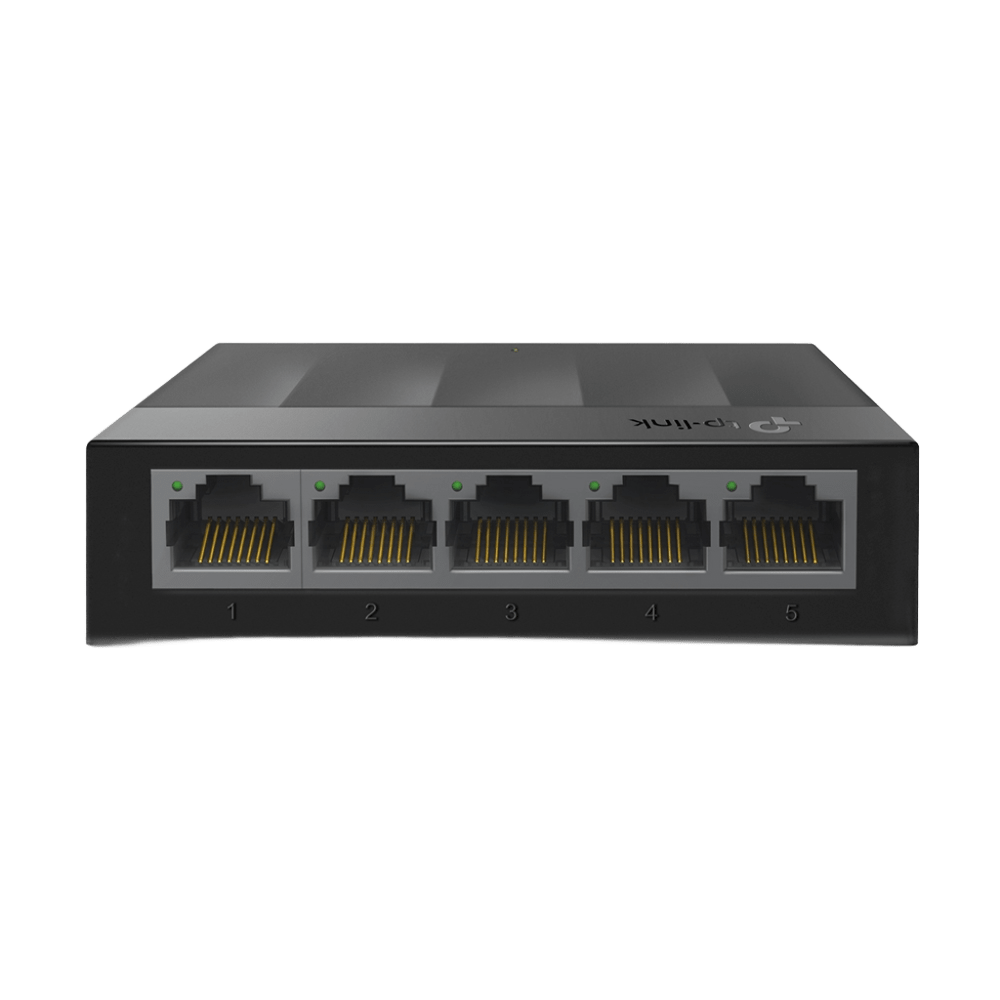

LS1005G

5-Port 10/100/1000Mbps Desktop Switch
  • 5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Plastic casing, desktop or wall-mounting design
  • Plug and play, no configuration needed
  • Fanless design ensures quiet operation
Brand

TP-Link
Model

LS1005G
Interface

5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity

Fanless
Power Supply

External Power Adapter (Output: 5VDC/0.6A)
Physical Security Lock

Yes
Dimensions ( W x D x H )

3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max. Power Consumption

3.7W
PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
• PoE Power Budget: 150 W
Max. Heat Dissipation

12.617 BTU/h
Type

Desktop
Packet Buffer Memory

1.5 Mbit
Jumbo Frame

16KB
Switching Capacity

10 Gbps
Packet Forwarding Rate

7.4 Mpps
MAC Address Table

2 K
Quality of Service

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control
Advanced Features

Green Technology
802.3X Flow Control
Back Pressure
Transmission Method

Store and Forward
Certification

CE, FCC, RoHS
Environment

Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
