Brand

Plustek

Model

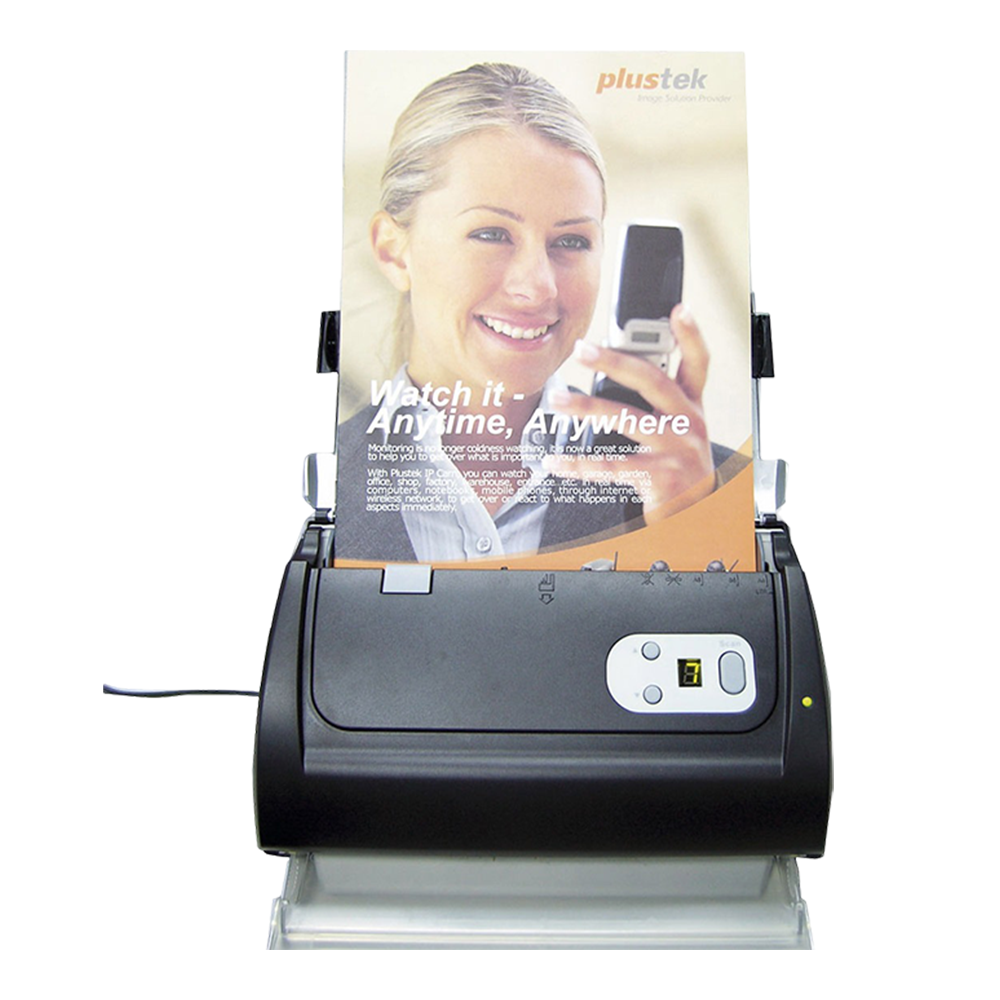

SmartOffice PS286 Plus

Type

Sheet-Feed ADF Scanner

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Hardware Resolution

600 x 600 dpi

Scan Modes (Bit Depth)

Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit

ADF Capacity

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight

Scan Speed

25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait)
8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
6 ppm/ 6 ipm (Color mode, 300 dpi, A4 Portrait)25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait)
8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
6 ppm/ 6 ipm (Color mode, 300 dpi, A4 Portrait)

Scanning Area

Max. 216 x 2500 mm (8.5” x 98.42”)
Min. 13.2 x 13.2 mm (0.52” x 0.52”)

Acceptable Paper Sizes (W x L)

Max. 220 x 2500 mm (8.66” x 98.42”)
Min. 50.8 x 50.8 mm (2” x 2”)

Acceptable Paper Weight (Thickness)

50 to 105 g/㎡ (14 to 28 Lbs)

Daily Duty Scan ( Sheets )

1500

Roller Lifetime (Scans)

100,000

Pad Lifetime (Scans)

20,000

Buttons

3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable

Power Supply

24 Vdc/ 0.75 A

Connectivity

USB 2.0

Net Weight

1.66 Kgs, 3.66 Lbs

Dimensions s (W x D x H)

263 x 128 x 148 mm (10.36" x 5.02" x 5.83")

Protocol

TWAIN Compliant

System Requirements

Windows 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x/ 15.x

Hardware Requirements

Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024×768 or greater

Built-in OCR

Plustek DocAction
Plustek DocTWAIN
Plustek MacAction
Plustek ICA
