Compact and with versatile network features.
The SmartOffice PN30U is the network-compatible* further development of the successful model PS30D. The compact scanner not only has an improved retraction mechanism with reversible wheels and an ultrasonic sensor, but also has improved image processing. Key feature of the new scanner is its extensive possibilities in network environments. Once integrated into the local Windows network, the device can be accessed from any workplace. Furthermore, functions such as scanning in FTP or network folders are available.

Ideal for businesses with high digitisation needs that store their documents on networks.

Scan at the touch of a button.
Already included is the Plustek DocAction and MacAction software. In combination with this and the two one-touch function keys, up to 9 different scan profiles can be retrieved, or configured user-specifically. In addition to searchable PDF files, Microsoft Office file formats and image formats such as JPG and TIFF can be generated. In addition, it can be defined whether to store the file in a local or network folder, to the printer, via email, via FTP, or to a cloud folder.

Product features:
• Fast scanning with 30 ppm/60 ipm in colour, greyscale and black and white
• ADF template capacity up to 50 sheets and 4000 pages daily volume.
• Scan documents up to 5080mm in length
• Built-in ultrasonic sensor to prevent multiple insertion
• Improved transport mechanism for optimal template transport.
• Windows network sharing for all Windows users on the network*
• Improved image processing for perfect results
• TWAIN compatible.

* Note: Network function only for Windows networks

Brand

Plustek

Model

SmartOffice PN30U

Type

Sheet-Feed ADF Scanner

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Hardware Resolution

600 x 600 dpi

Scan Modes (Bit Depth)

Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit

ADF Capacity

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.

Scan Speed

30 ppm/ 60 ipm (Grayscale mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 200 & 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area

Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)

Acceptable Paper Sizes (W x L)

Max: 220 x 5080 mm (8.66” x 200”)
Min: 63.5 x 50.8 mm (2.5” x 2”)

Acceptable Paper Weight (Thickness)

50 to 105 g/㎡ (14 to 28 Lbs)

Daily Duty Scan ( Sheets )

4000

Buttons

3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.

Power Supply

AC adapter: 24 Vdc/ 0.75 A

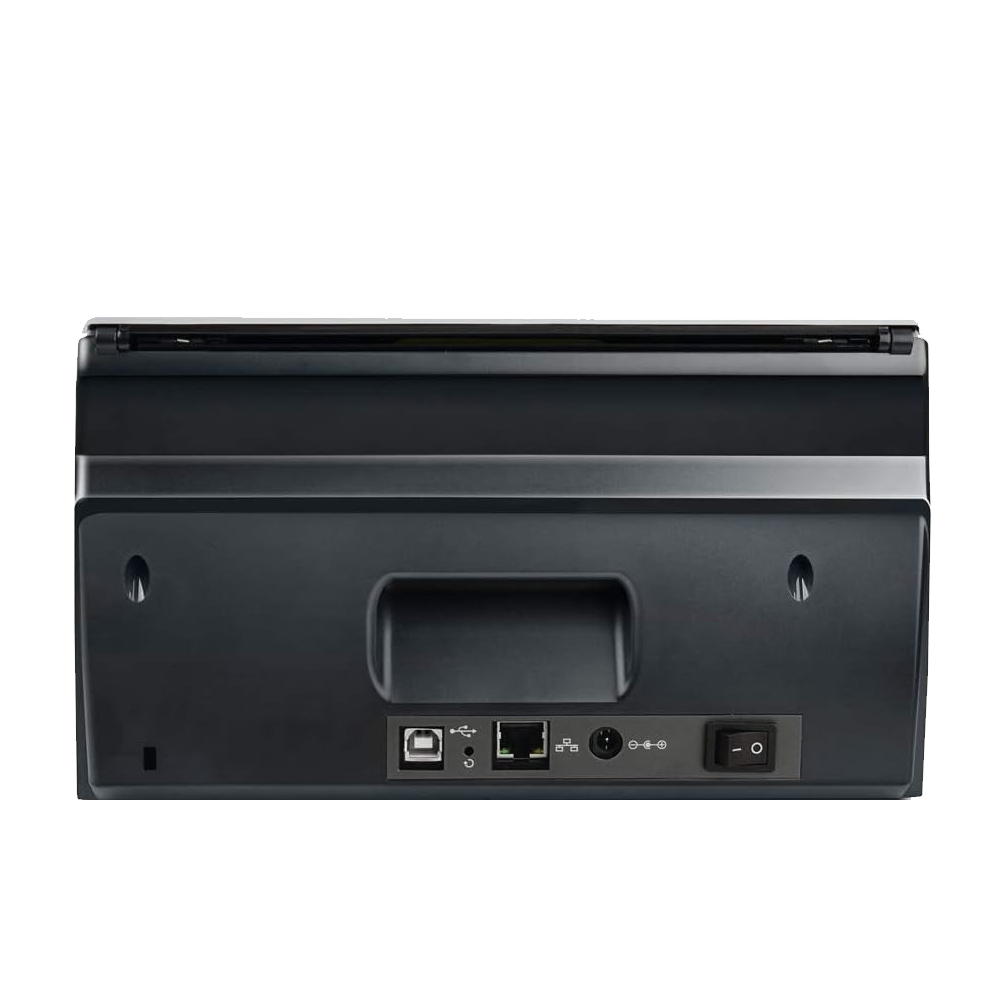

Connectivity

USB 2.0
RJ45 LAN (only support Windows)

Weight

1.66 Kgs (3.66 Lbs)

Dimensions s (W x D x H)

263 x 128 x 148 mm (10.36" x 5.02" x 5.83")

Protocol

TWAIN Compliant

System Requirements

Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.8.x/ 10.9.x/ 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x
Linux compatibility is only available for system integrators.

Hardware Requirements

Windows Recommended: 2.8 GHz Intel Core i5 Processor with 4 CPU Cores or higher

Built-in OCR

Plustek OCR (For Windows)

Warranty

1 Year
