Brand

Plustek

Model

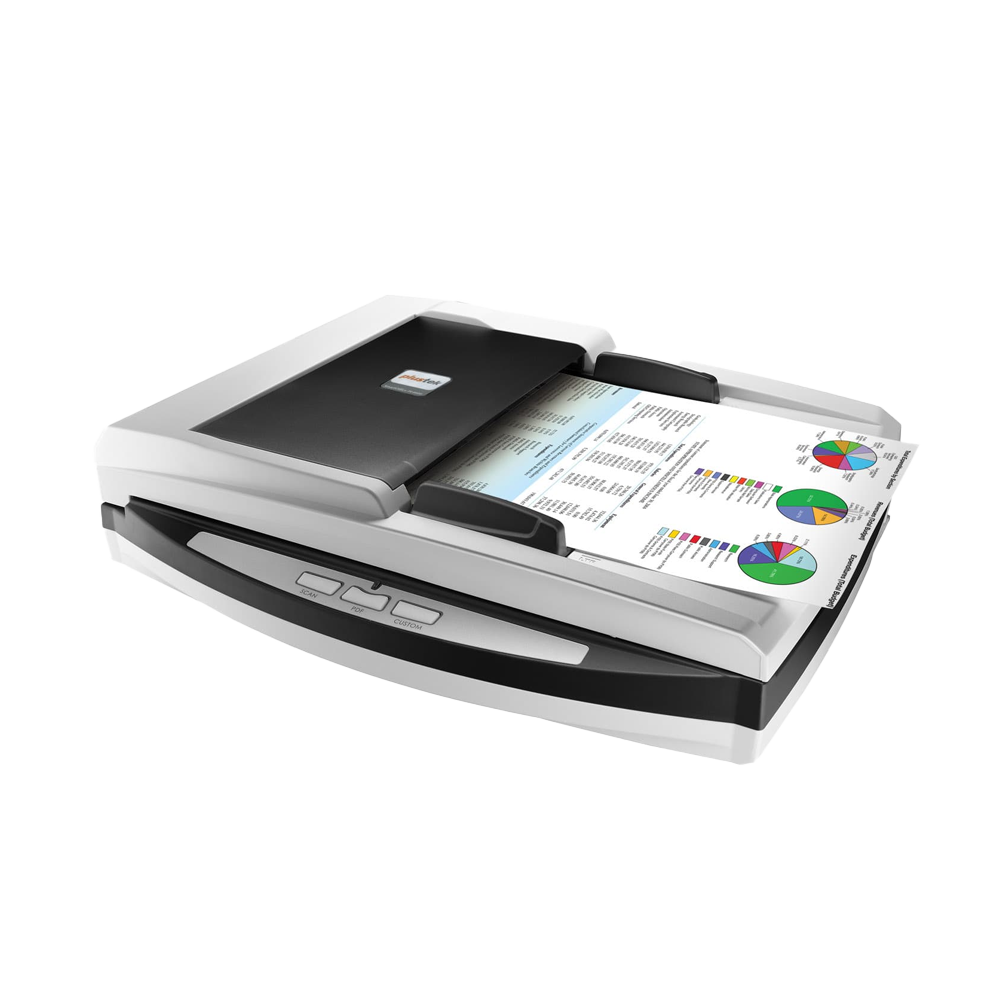

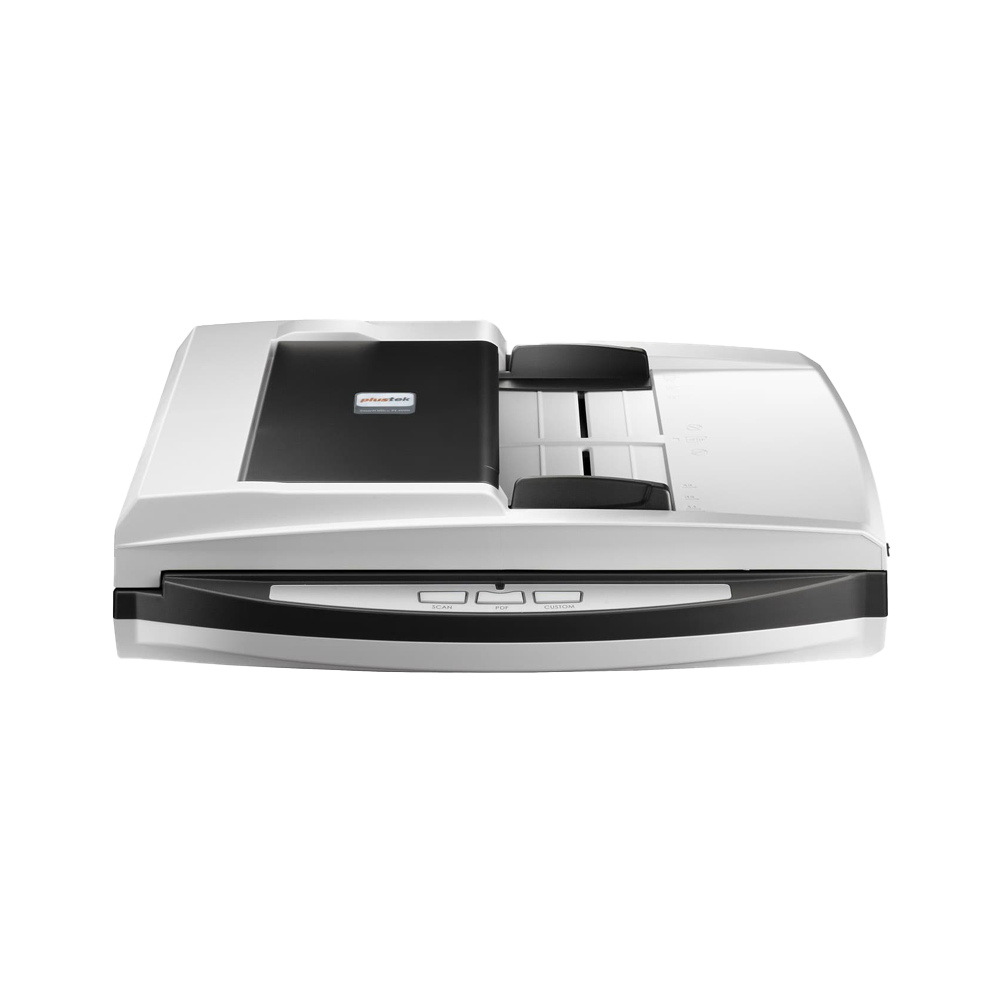

SmartOffice PL4080

Type

Flatbed

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Hardware Resolution

Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi

Scan Modes (Bit Depth)

Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit

ADF Capacity

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Card)
Note: Maximum ADF capacity varies, depending upon paper weight.

Scan Speed (ADF)

40 ppm/ 80 ipm (Color, Grayscale, B&W mode, 200 dpi, A4 Portrait)
26 ppm/ 52 ipm (Color, Grayscale, B&W mode, 300 dpi, A4 Portrait)

Scanning Area

Flatbed: Max=216 x 297 mm (8.5” x 11.69”) Min = 12.7 x 12.7 mm (0.5” x 0.5”)
ADF: Max = 216 x 356 mm (8.5” x 14”) Min = 12.7 x 12.7 mm (0.5” x 0.5”)

Acceptable Paper Sizes (W x L)

Flatbed: Max = 216 x 297 mm (8.5” x 11.69”) Min = 12.7 x 12.7 mm (0.5” x 0.5”)
ADF: Max = 220 x 356 mm (8.66” x 14”) Min = 90 x 50.8 mm (3.55” x 2”)

Acceptable Paper Weight (Thickness)

50 to 120 g/㎡ (14 to 32 Lbs)

Daily Duty Scan ( Sheets )

3000

Roller Lifetime (Scans)

100000

Pad Lifetime (Scans)

50000

Buttons

Scan、PDF、Custom

Power Supply

24 Vdc/ 0.75 A

Connectivity

USB 2.0

Weight

3.98 Kgs (8.77 Lbs)

Dimensions s (W x D x H)

418 x 326 x 101 mm (16.45" x 12.83" x 4")

Protocol

TWAIN Compliant

System Requirements

Windows XP / Vista / 7 / 8 / 10 / 11

Hardware Requirements

Windows Recommended: 2.8 GHz Intel Core i5 Processor with 4 CPU Cores or higher

Built-in OCR

Plustek OCR

Warranty

1 Year
