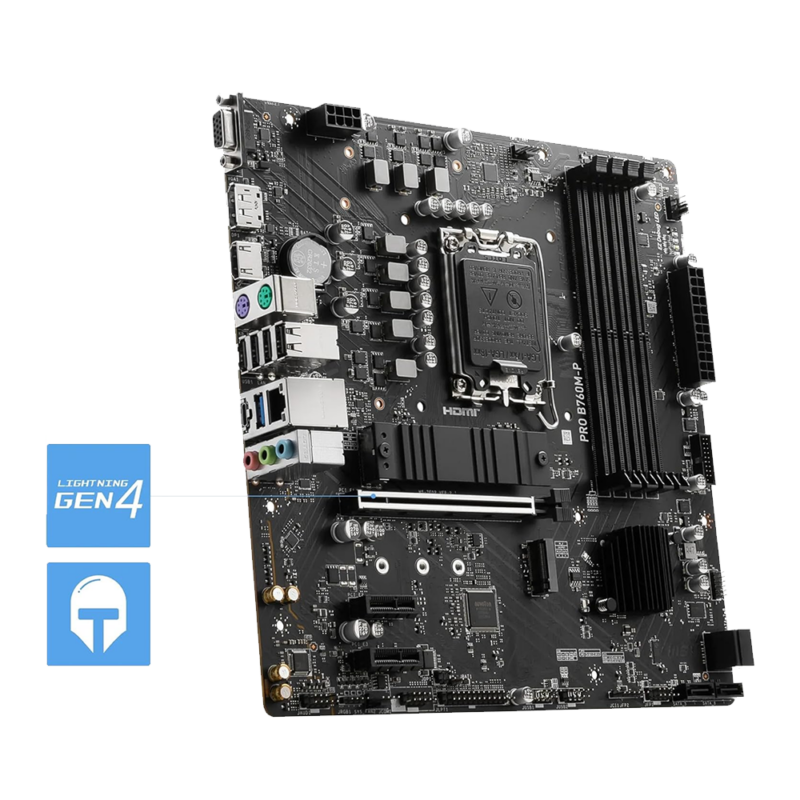

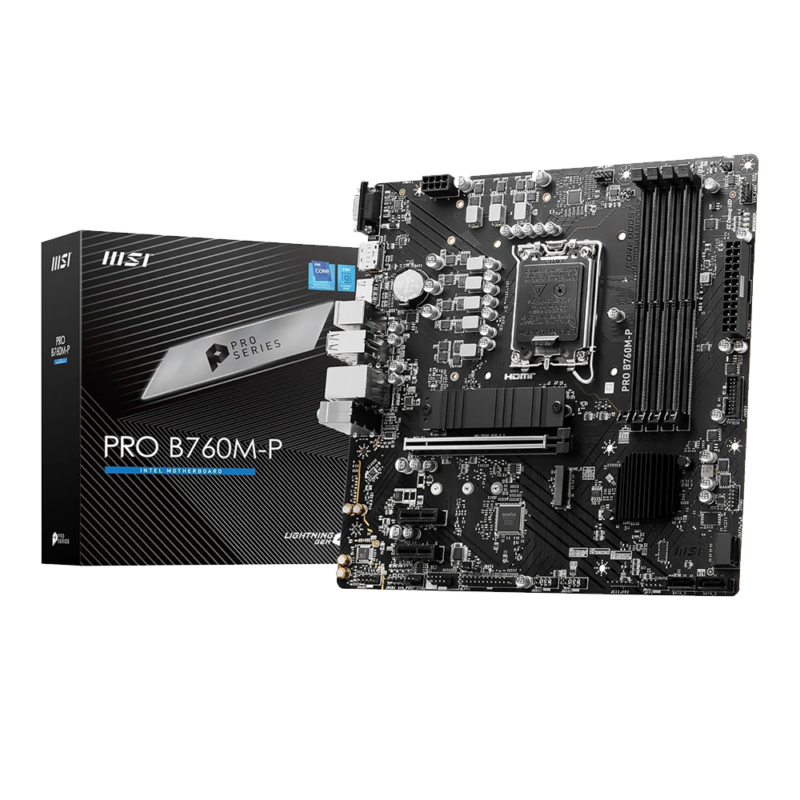

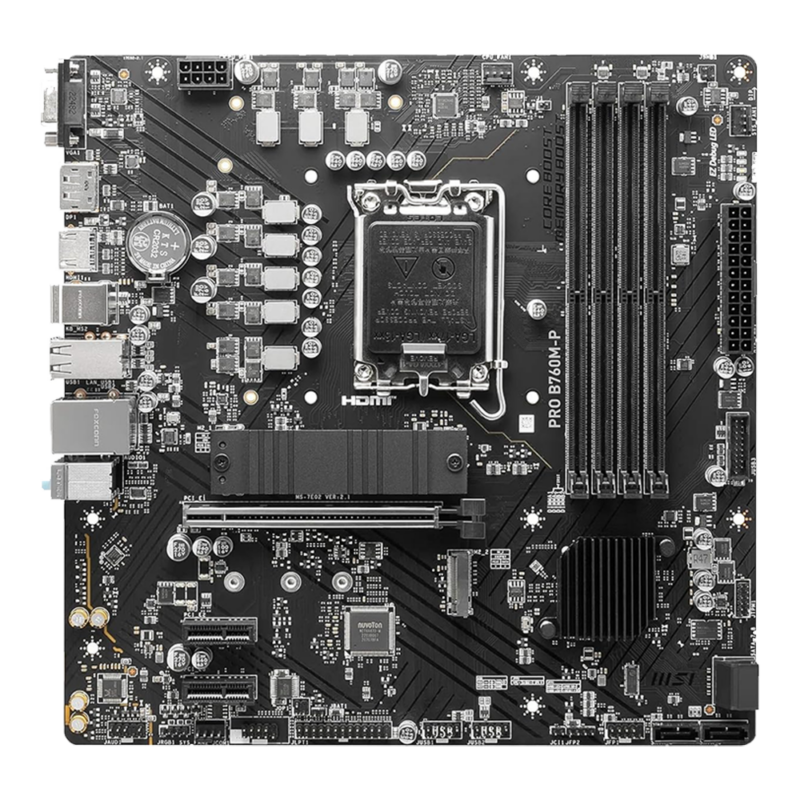

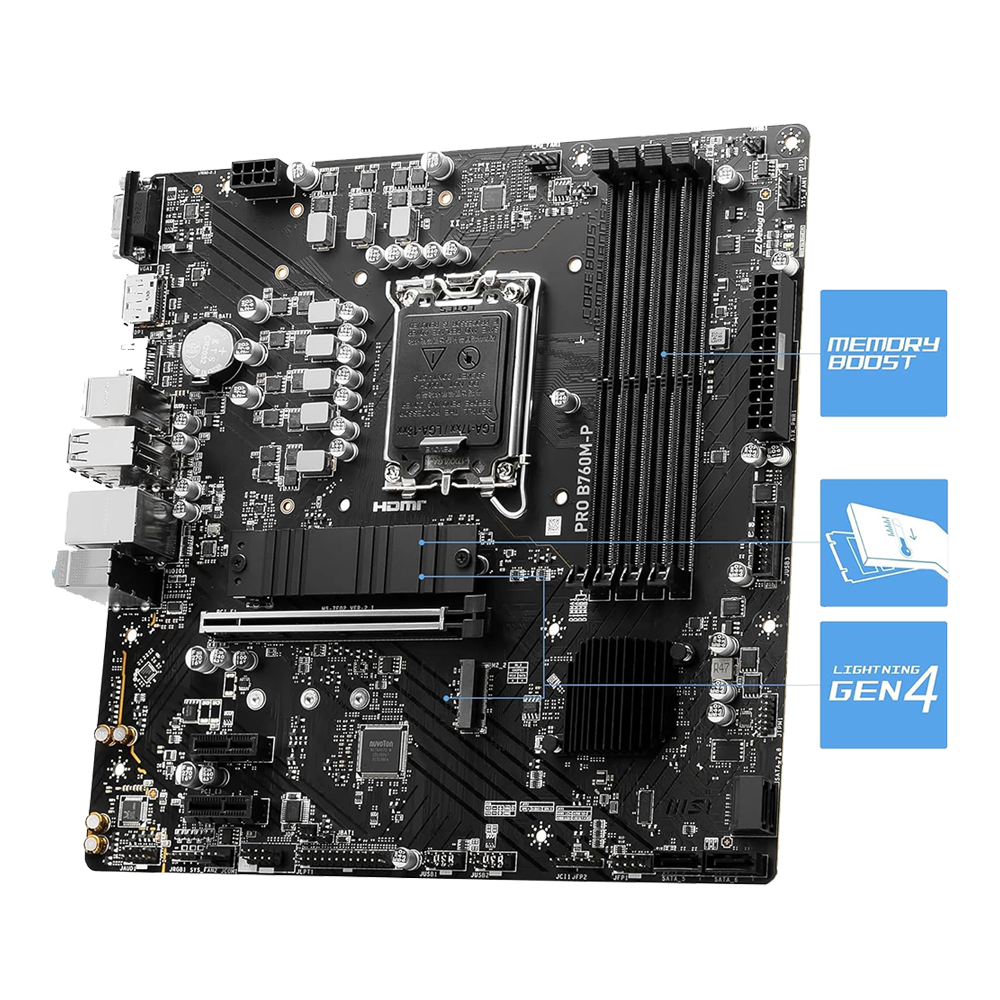

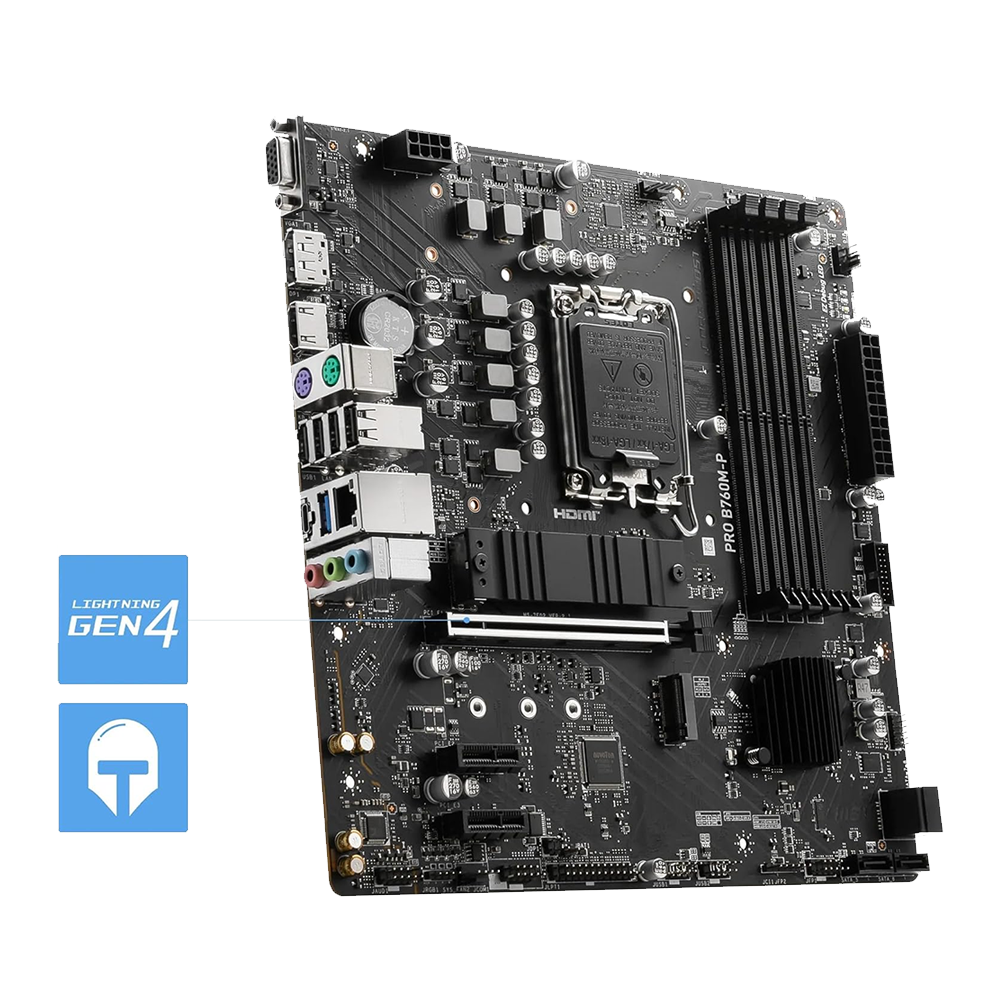

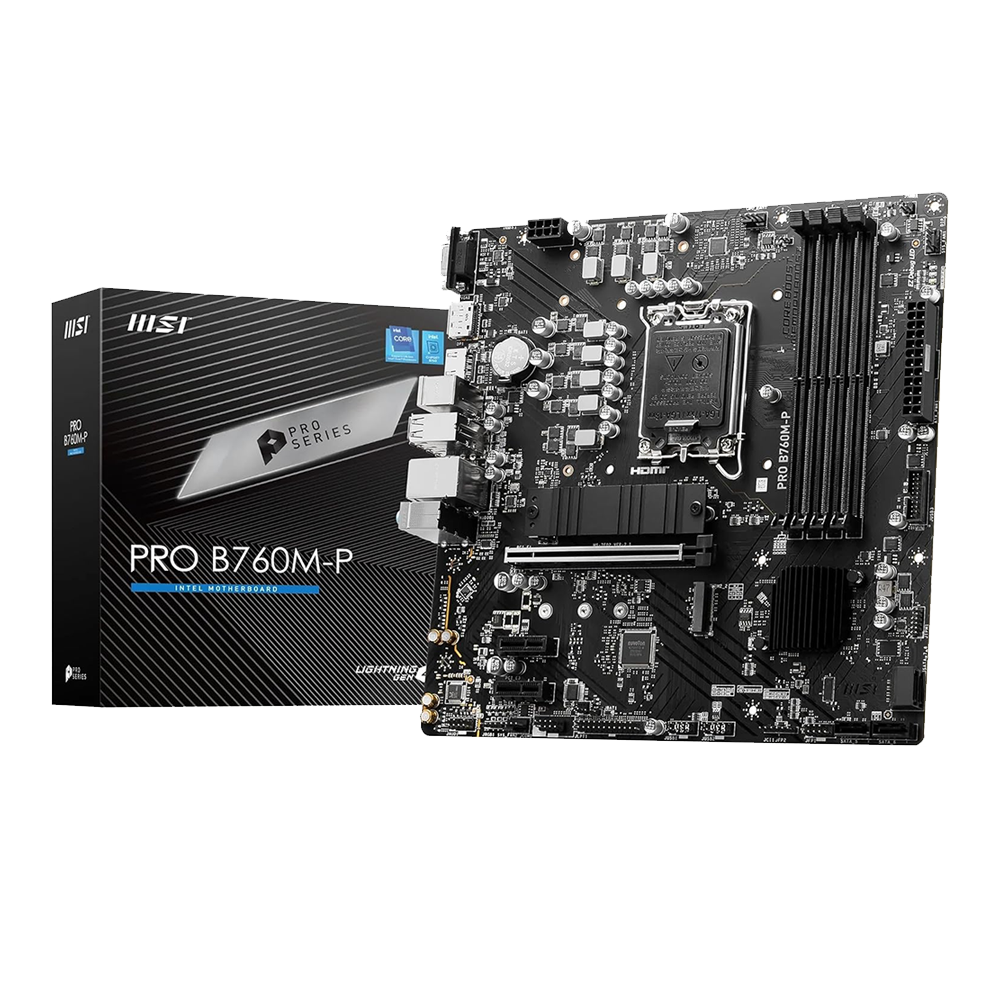

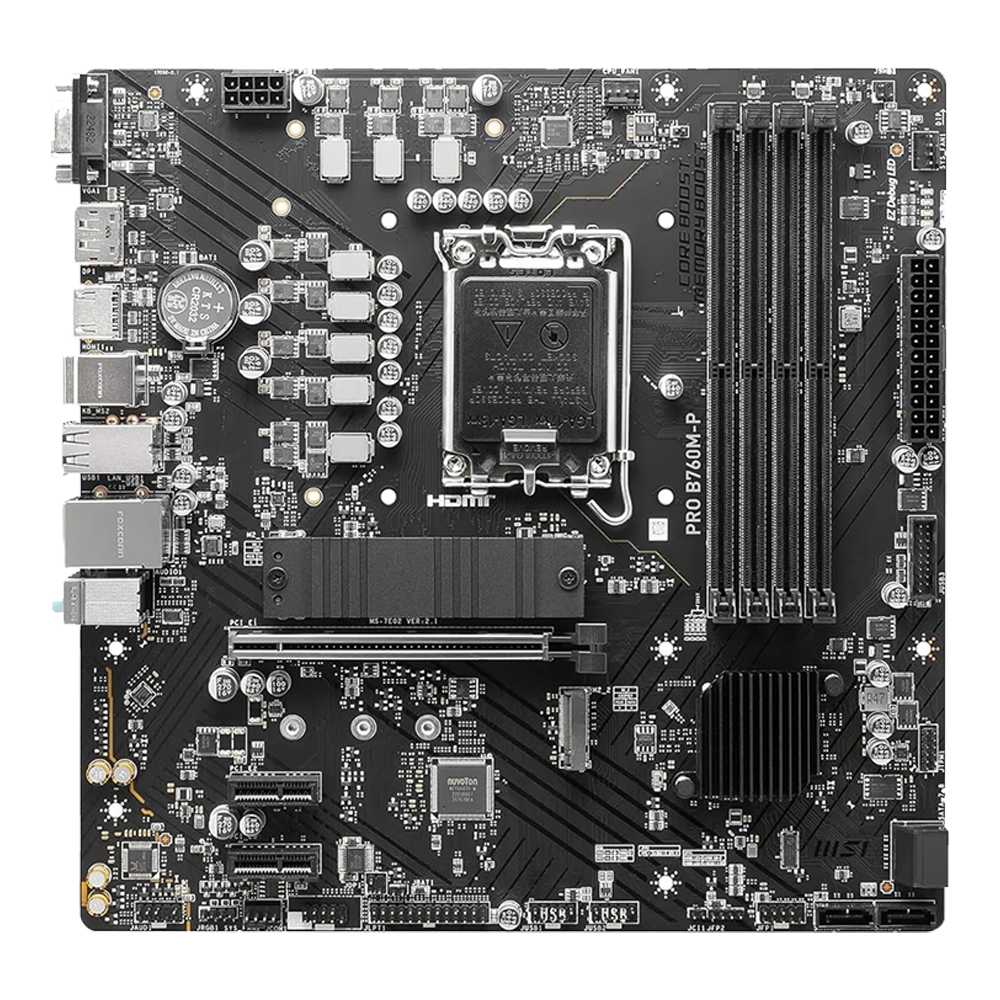

Brand

MSI
Model

PRO B760M-P
Chipset

Intel B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Socket

LGA 1700
Memory Channel

Dual Channel DDR5
DIMM Slots

4
Max Memory

256 GB
Expansion Slots

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
SATA Connector

4x SATA 6G
M.2 Slot

2
Raid

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Ports

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Rear)
Onboard Graphics

1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
LAN

Realtek® RTL8111H Gigabit LAN
Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED Feature

4x EZ Debug LED
Back Panel Ports

VGA
DisplayPort
HDMI™
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Operating System

Supports Windows 10 64-bit and Windows 11 64-bit
Form Factor

Micro-ATX
PCB Dimension (LxW)

243.84mm x 243.84mm
Warranty

1 Year
