Brand

MSI
Model

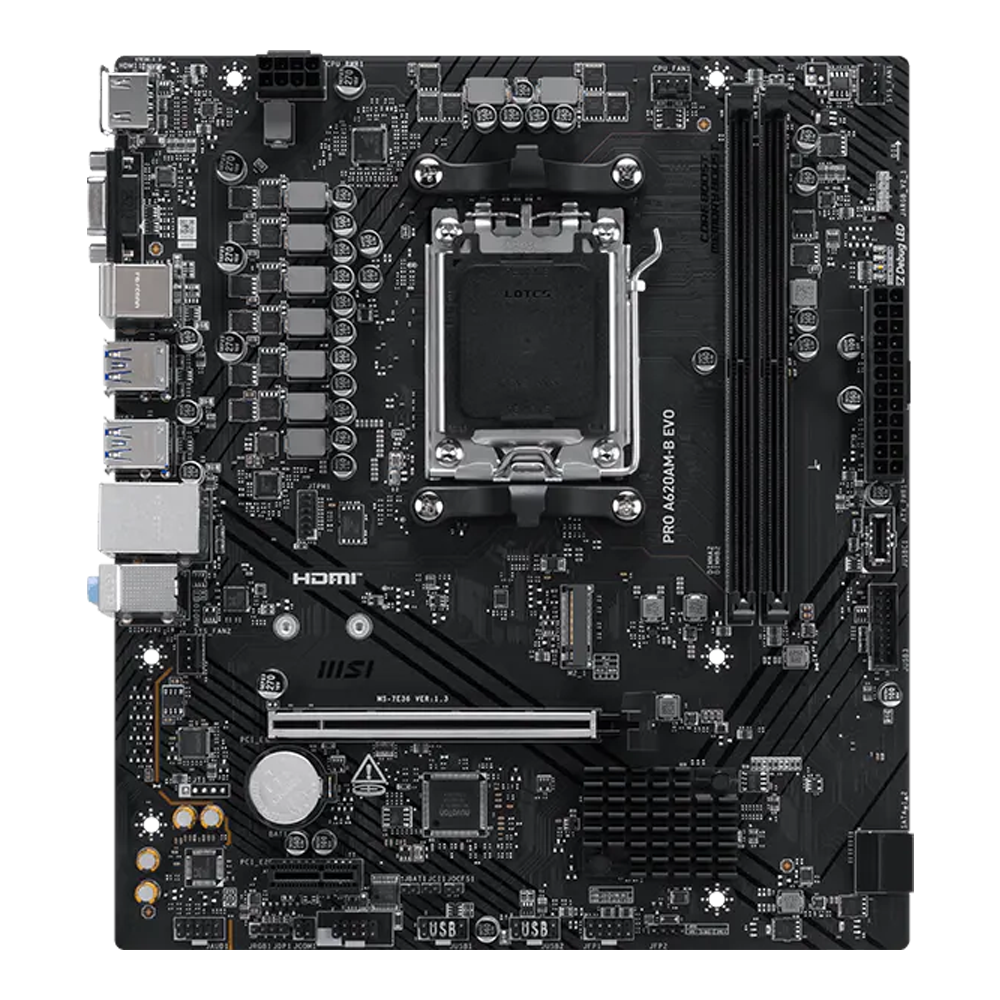

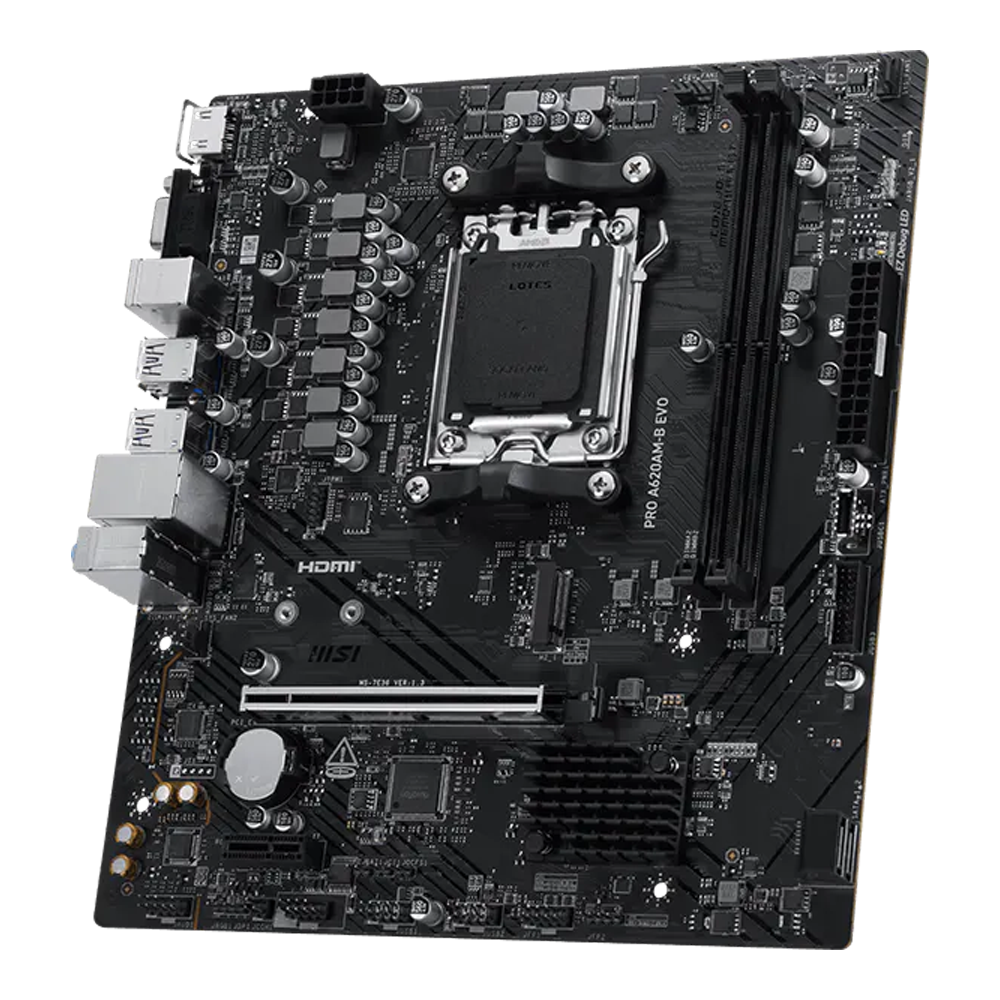

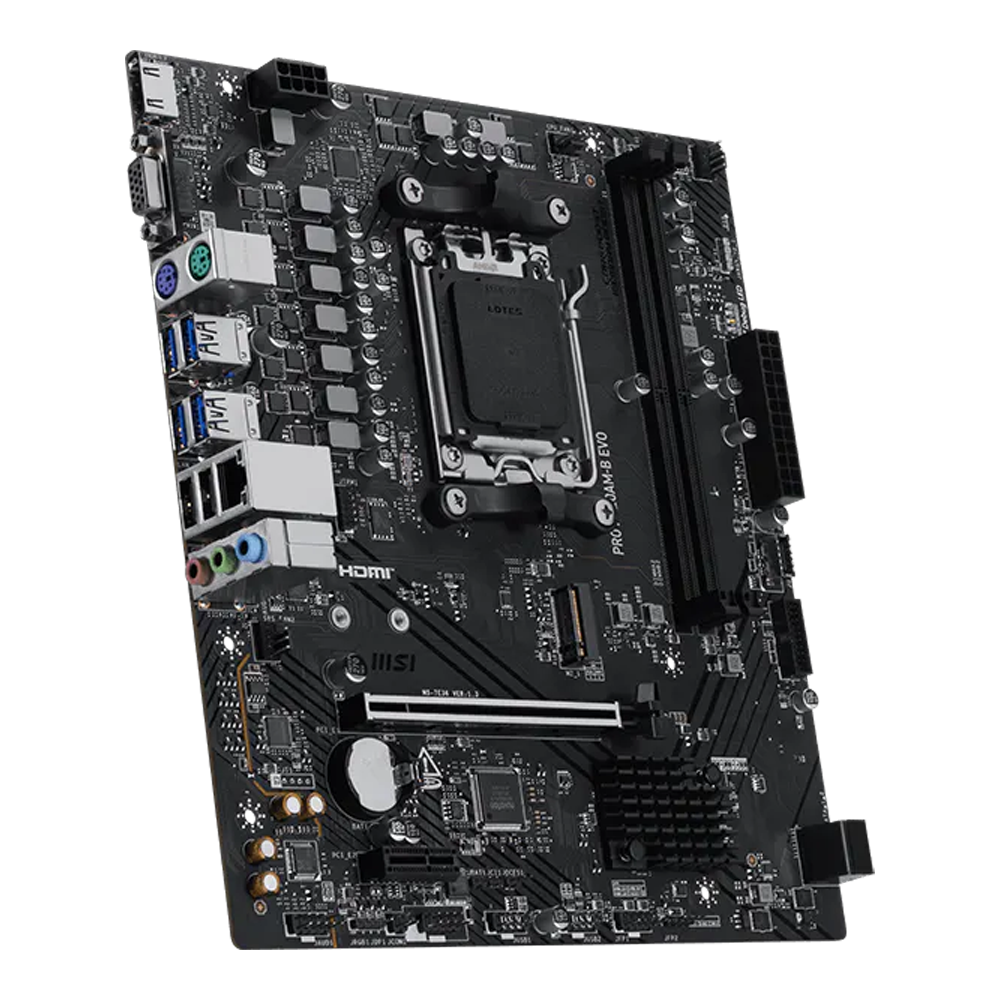

MSI Pro A620AM-B EVO
Chipset

AMD A620A
Socket

AM5
Memory Channel

Dual Channel DDR5
DIMM Slots

2
Max Memory

128 GB
Memory Support

DDR5 6800 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Max. overclocking:
• 1DPC 1R Max speed up to 6800+ MT/s
• 1DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Expansion Slots

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA Connector

2x SATA 6G
M.2 Slot

1
RAID

Supports RAID 0 and RAID 1 for SATA storage devices

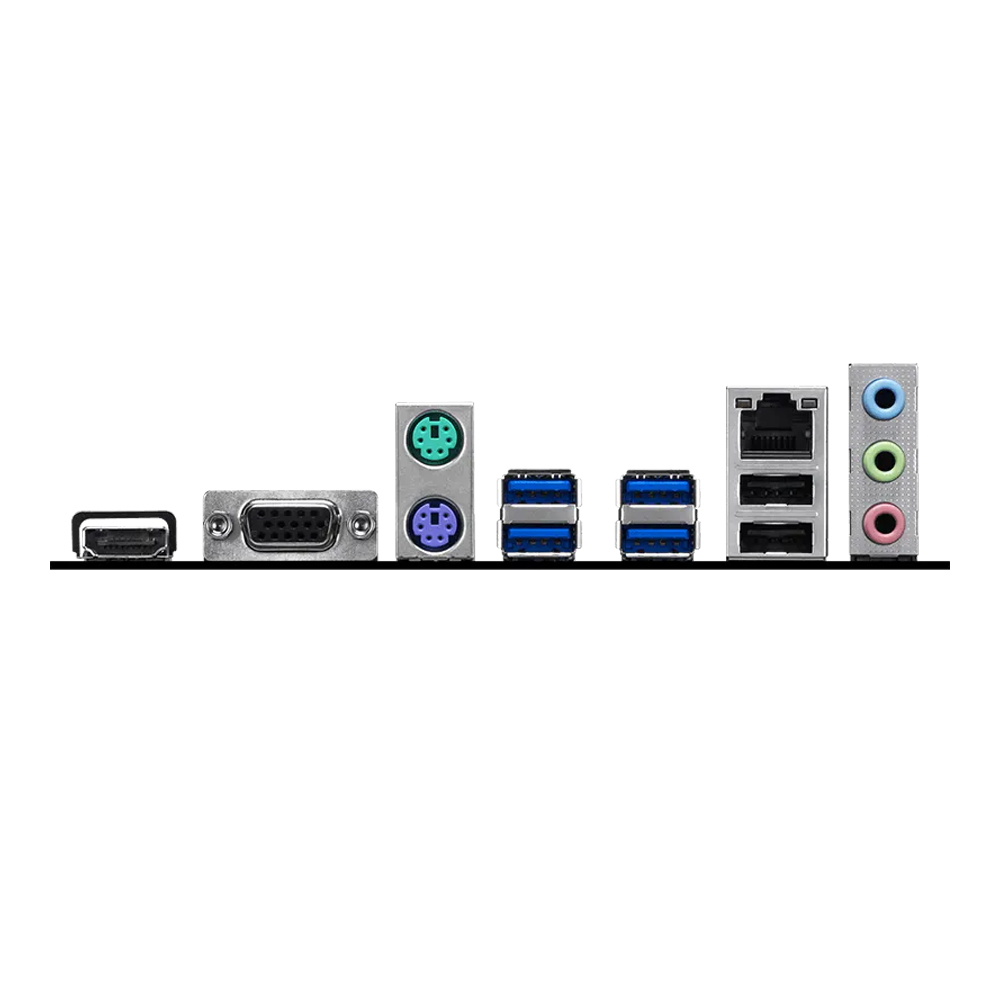

USB Ports

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Graphic

1x VGA
1x HDMI 2.1
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN

Realtek® RTL8125 2.5G LAN
Operating System

Supports Windows 10 64-bit and Windows 11 64-bit
Form Factor

mATX
218mmx243.84mm
Warranty

1 Year
