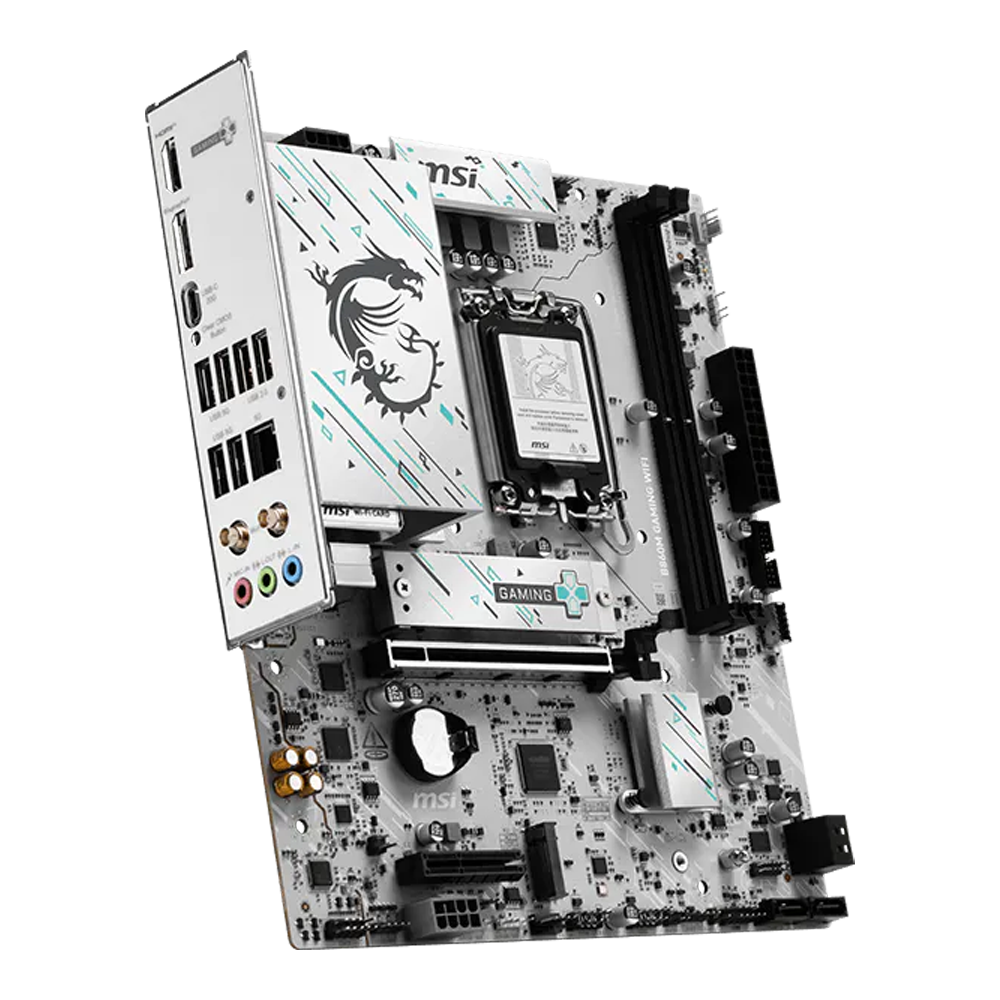

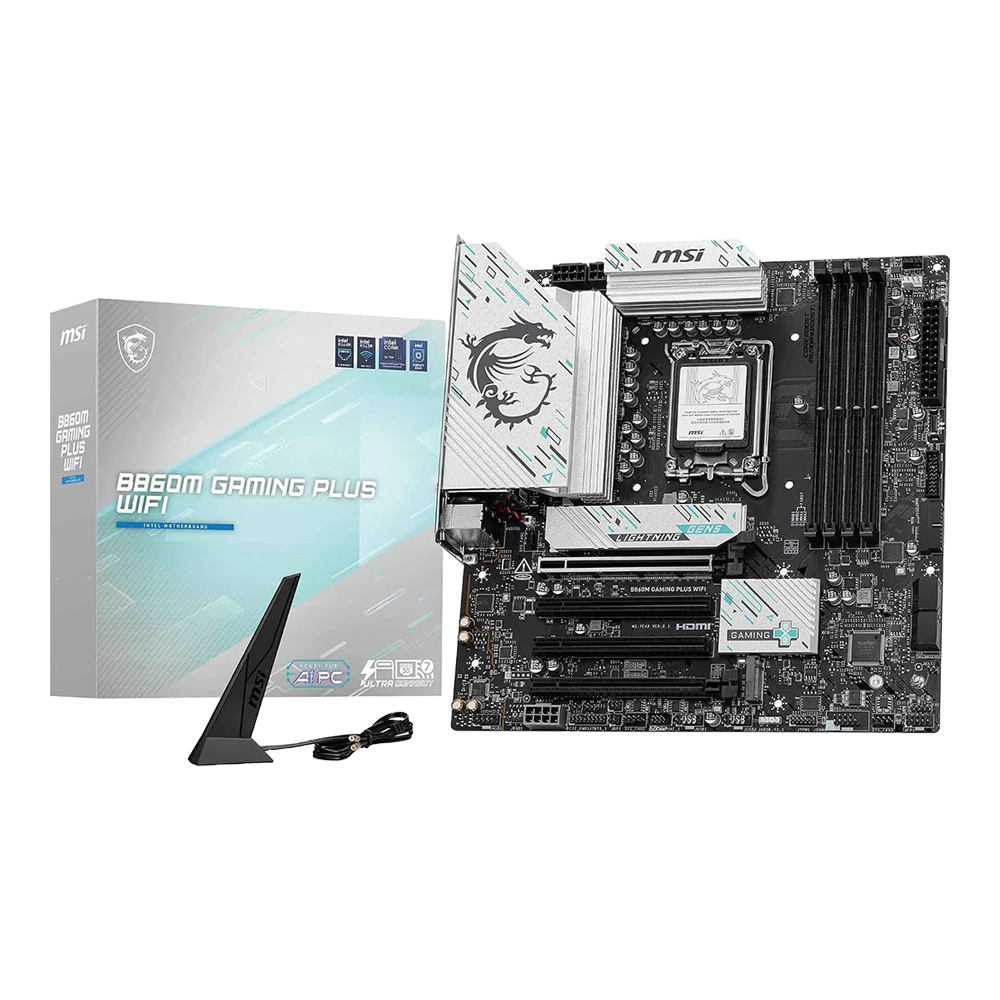

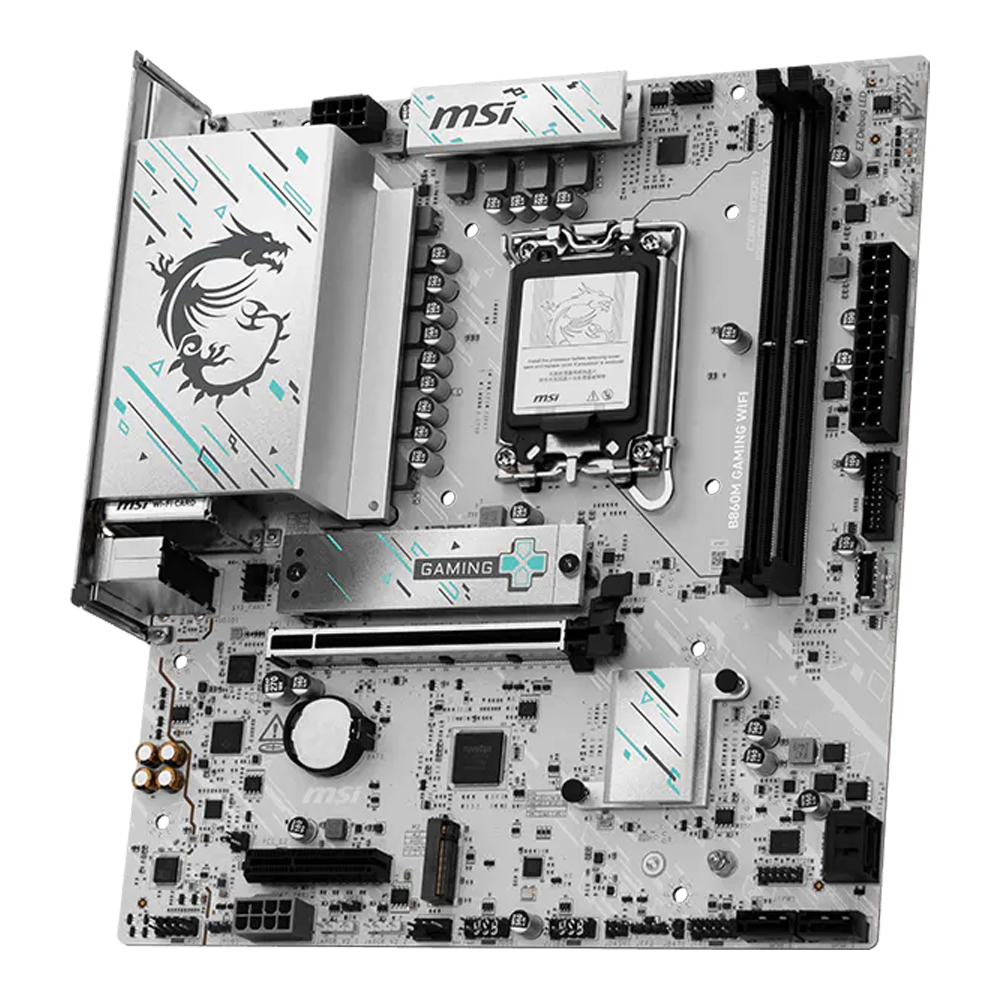

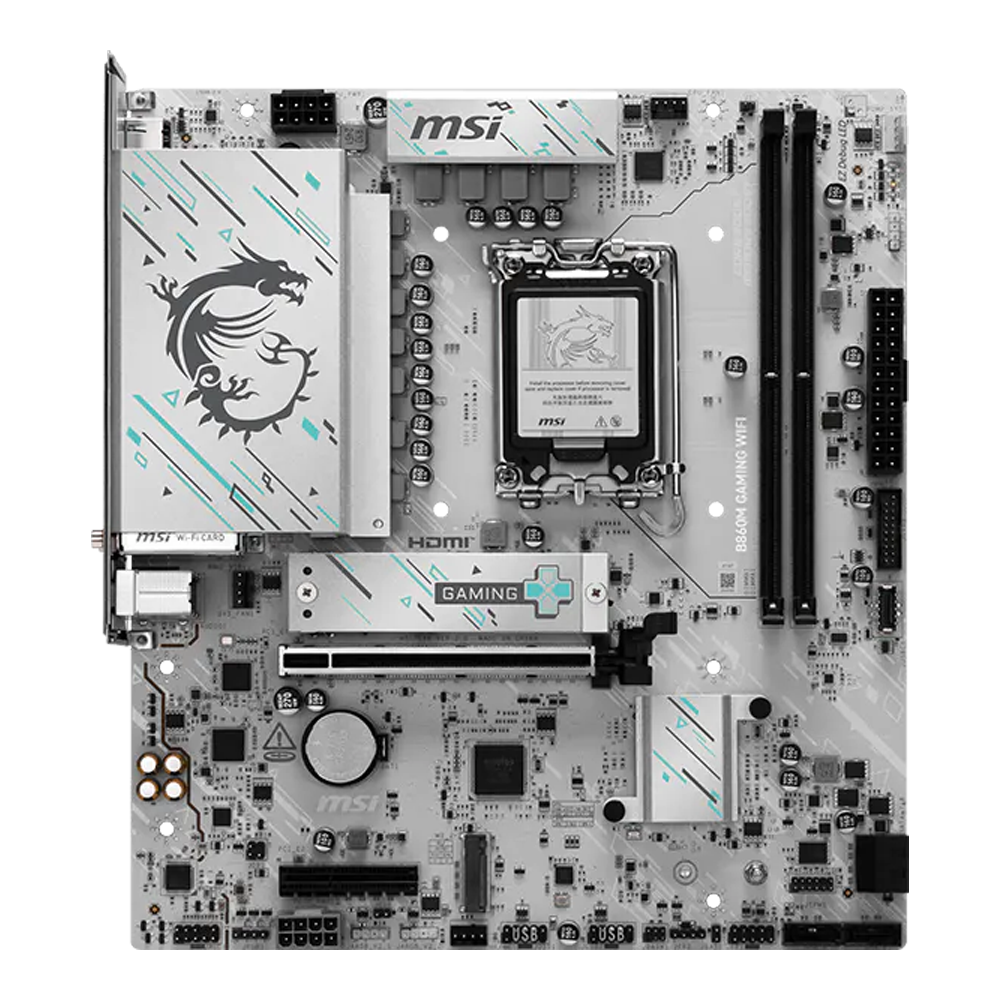

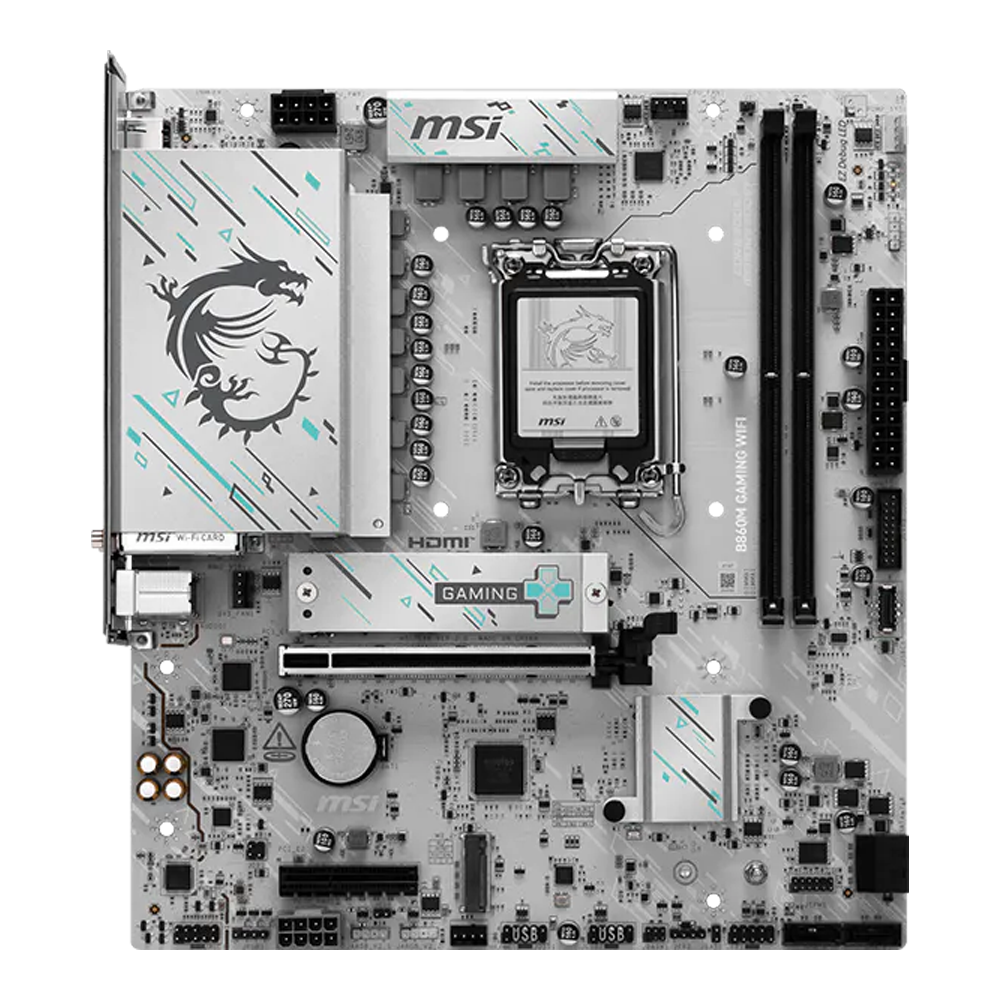

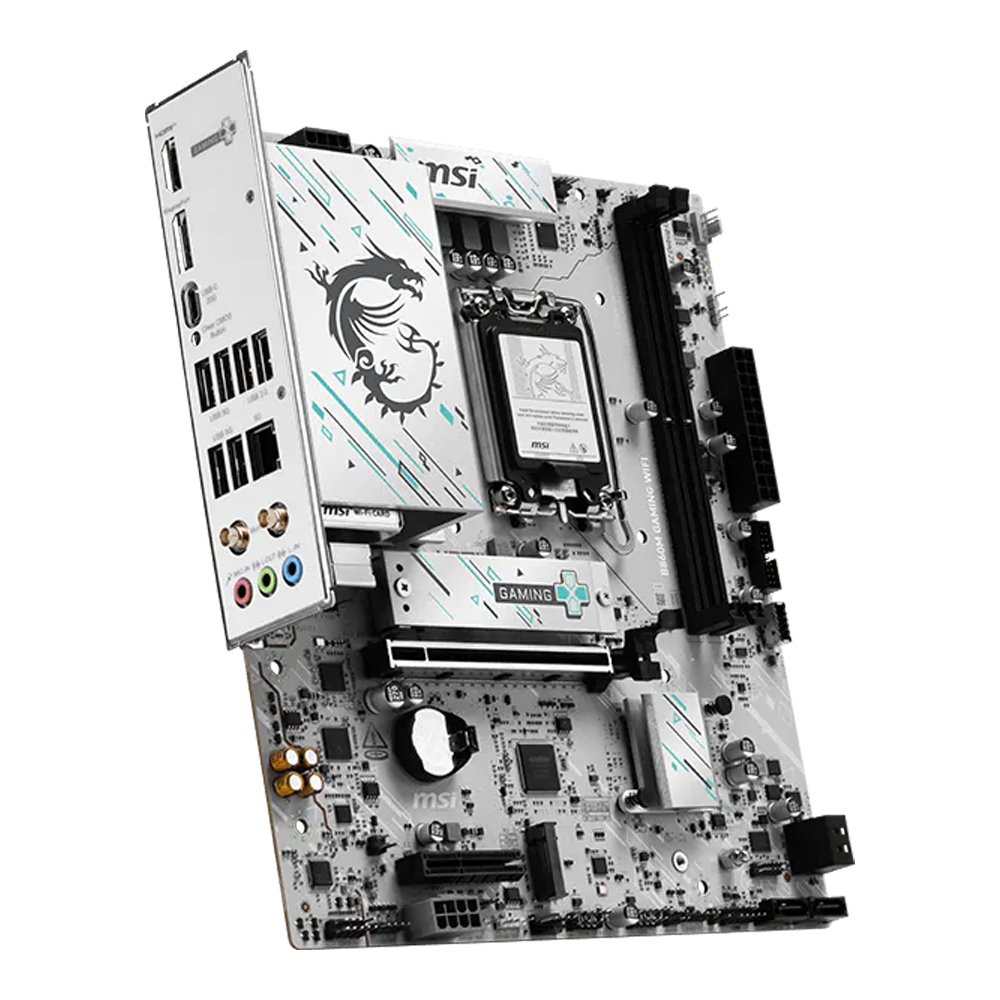

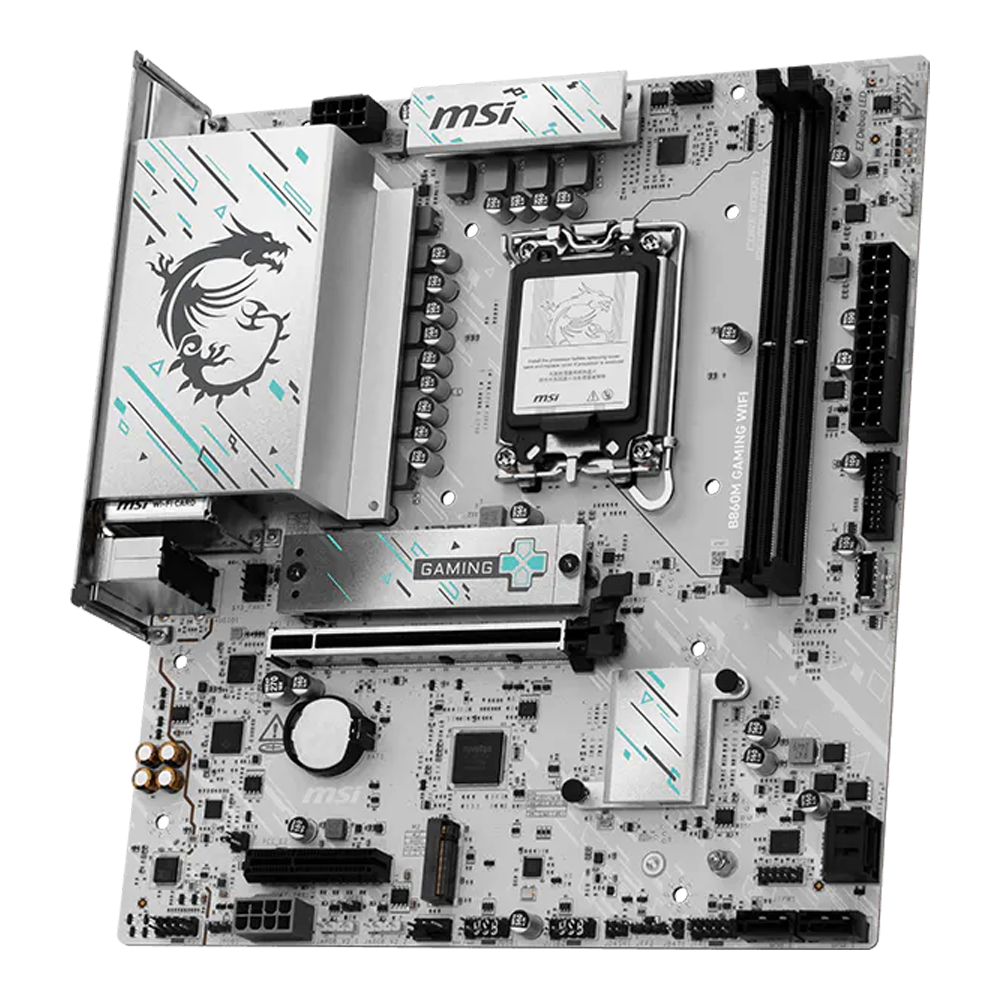

  • MSI B860M WiFi 7 Gen 5 Gaming Motherboard (DDR5)
Brand

MSI
Model

B860M
Chipset

Intel® B860 Chipset
CPU Support

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory Channel

Dual
DIMM Slots

2 x DIMM, up to 128GB
Memory Support

Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Storage

2 x M.2 slots and 4 x SATA 6Gb/s ports
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Ethernet

Realtek® 8126 5Gbps LAN
Wireless & Bluetooth

Wi-Fi 7 module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

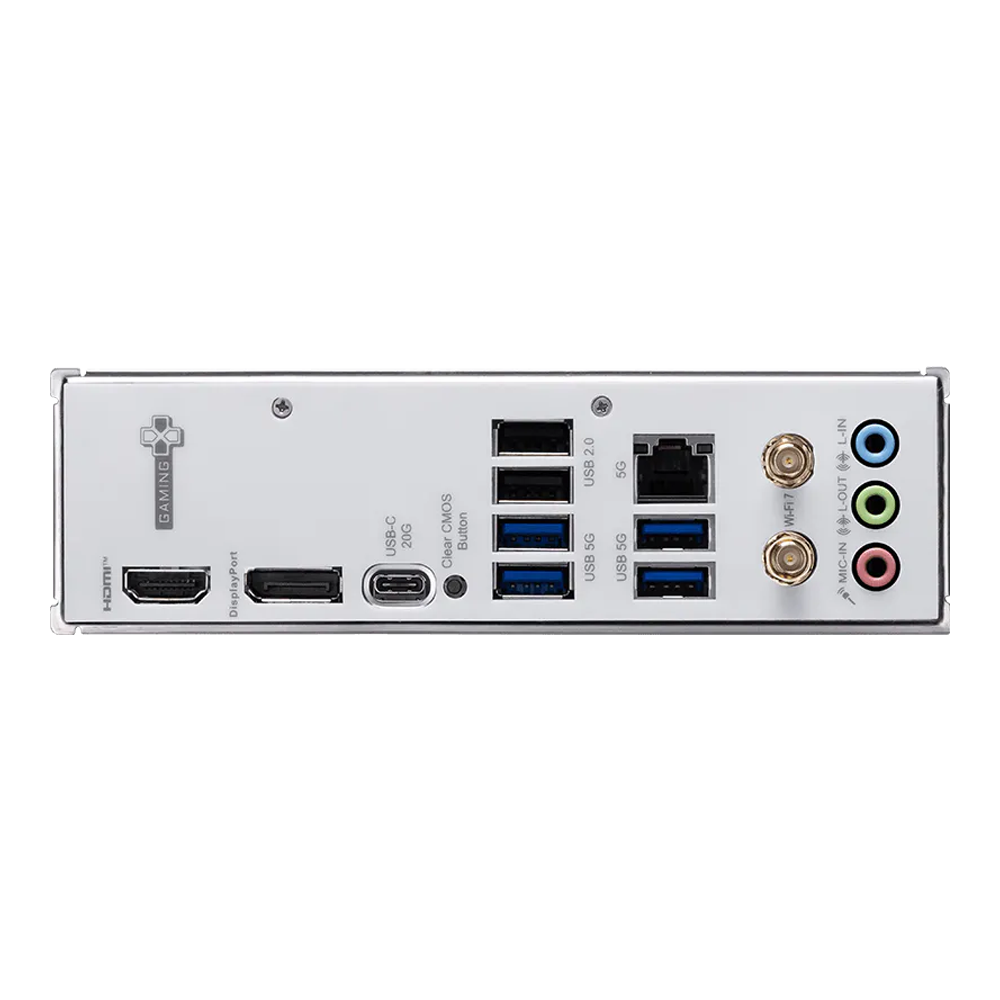

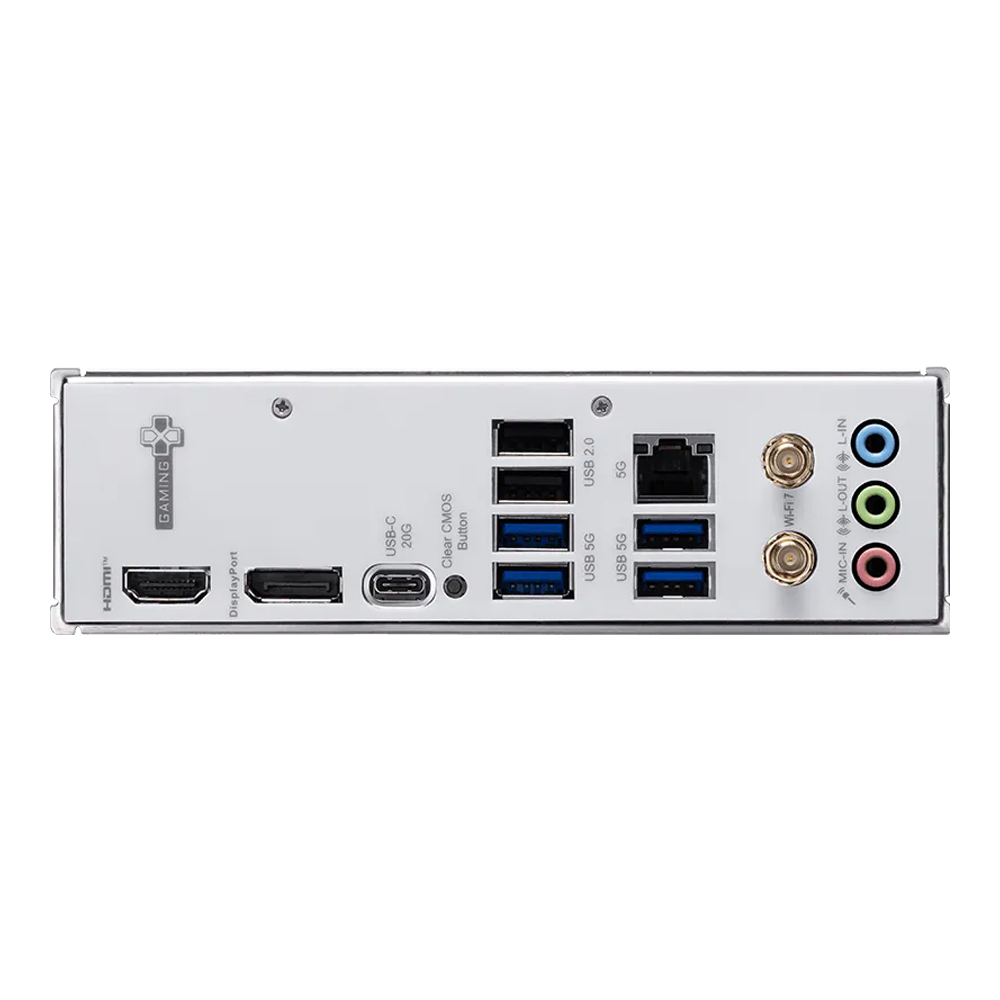

Back Panel I/O Ports

USB 2.0
5G LAN
Wi-Fi / Bluetooth
HDMI™
Display Port
USB 20Gbps (Type-C)
Clear CMOS Button
USB 5Gbps (Type-A)
Audio Connectors
Expansion Slots

1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Form Factor

mATX
220mmx243.84mm
Warranty

1 Year
