Brand

MSI
Model

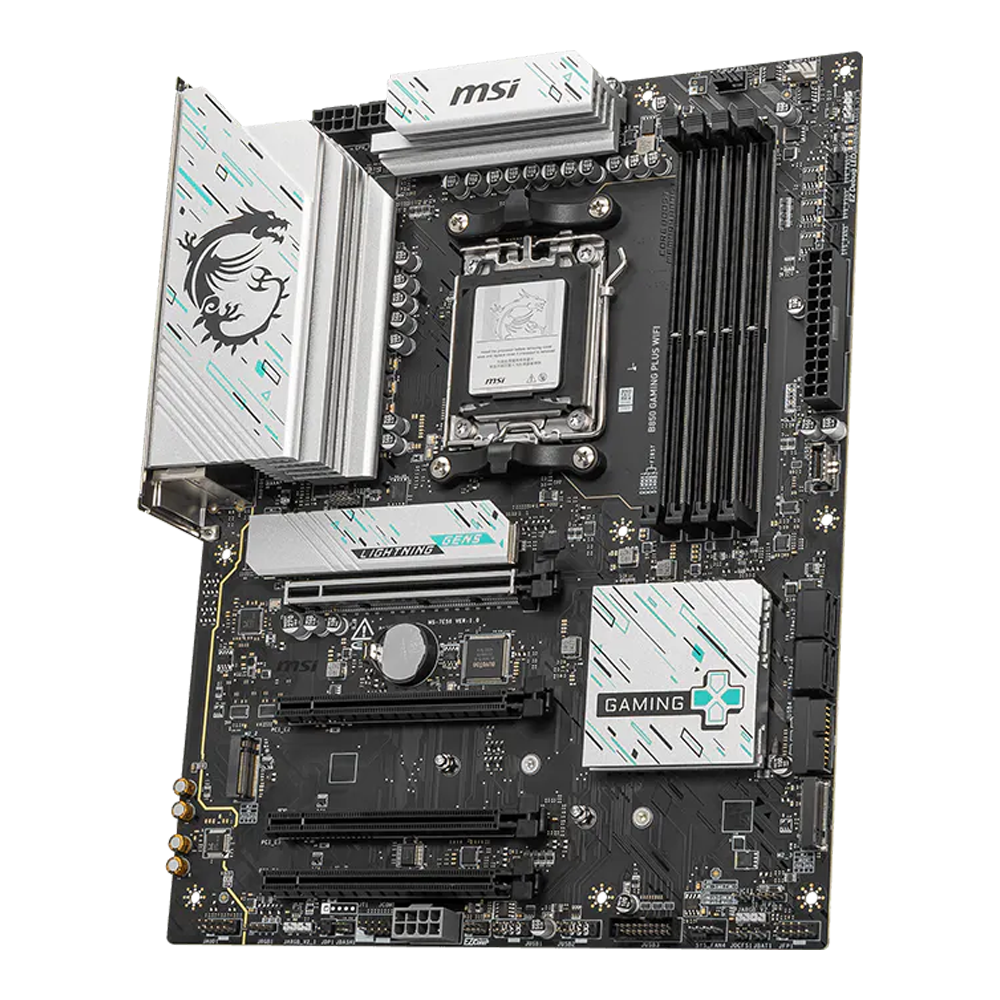

MSI B850
Chipset

AMD B850
CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket

AM5
Memory Channel

Dual Channel DDR5
DIMM Slots

4
Max Memory

256 GB
Onboard Graphics

1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
Expansion Slots

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio

Realtek® ALC897
7.1-Channel High Definition Audio
Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2 Slot

3
Raid

Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB Ports

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
LAN

Realtek® 8126VB 5G LAN
Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Wireless LAN & Bluetooth

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
LED Feature

4x EZ Debug LED

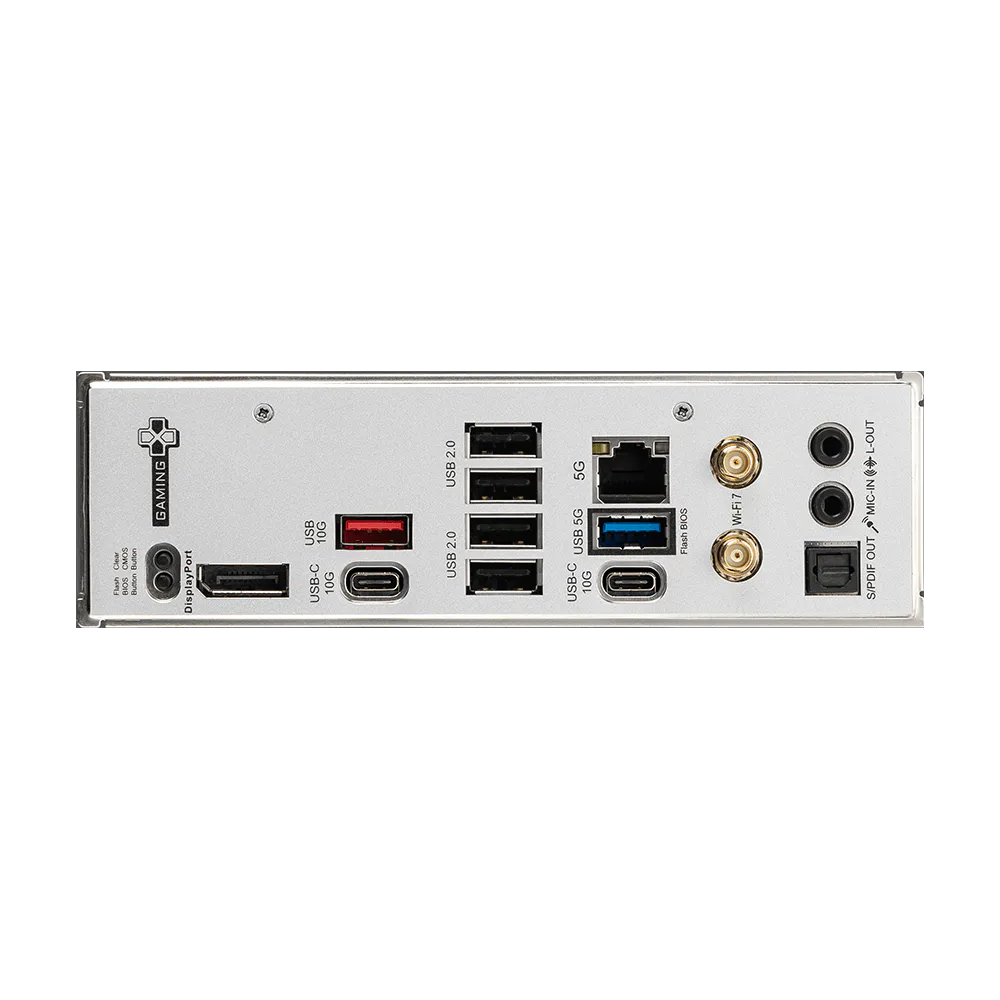

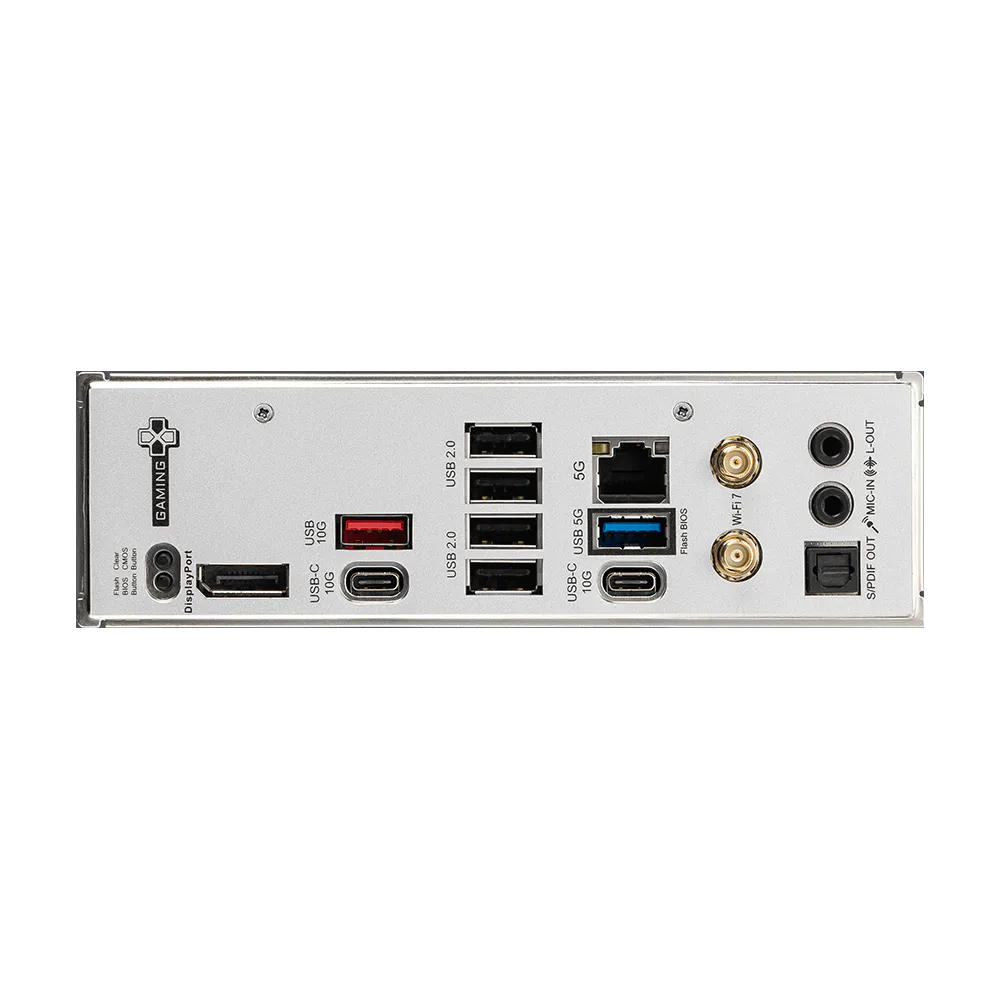

Back Panel Ports

Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT
Operating System

Support for Windows® 11 64-bit
PCB Dimension (LxW)

ATX, 243.84mmx304.8mm
Warranty

1 Year
