Brand

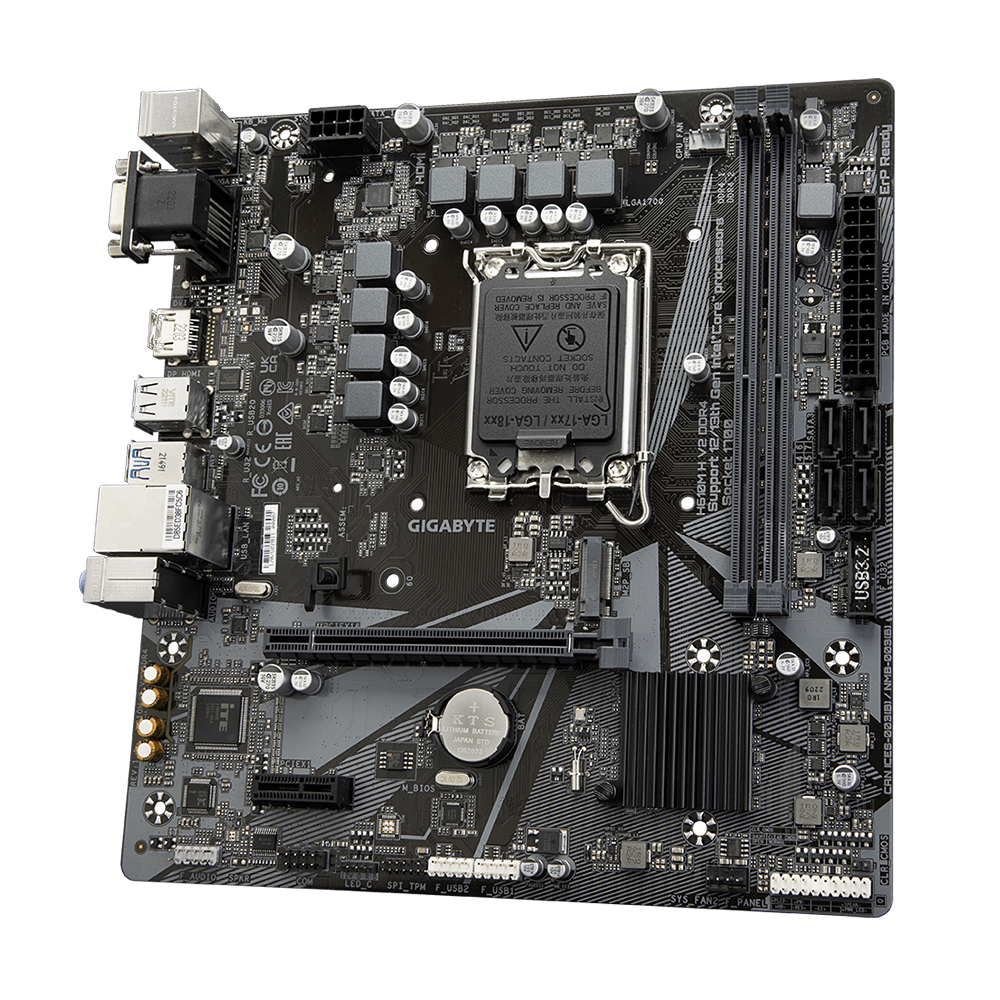

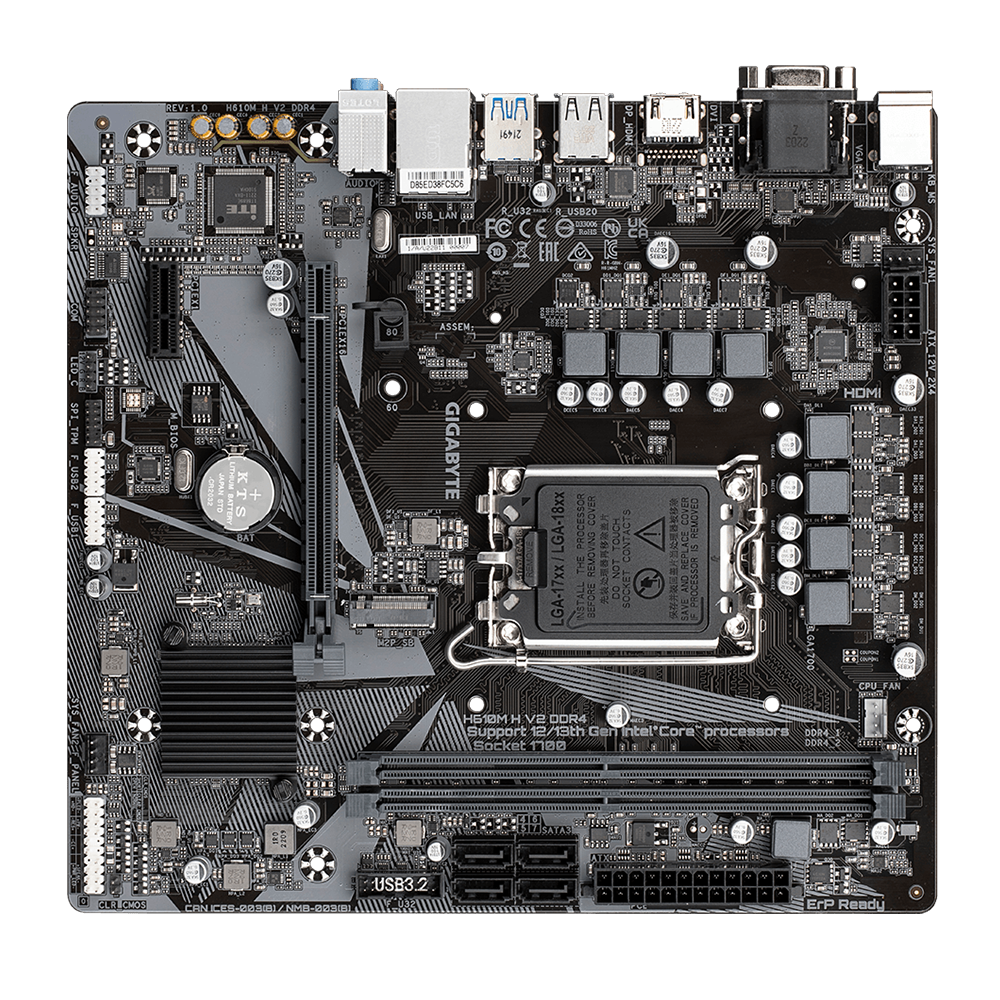

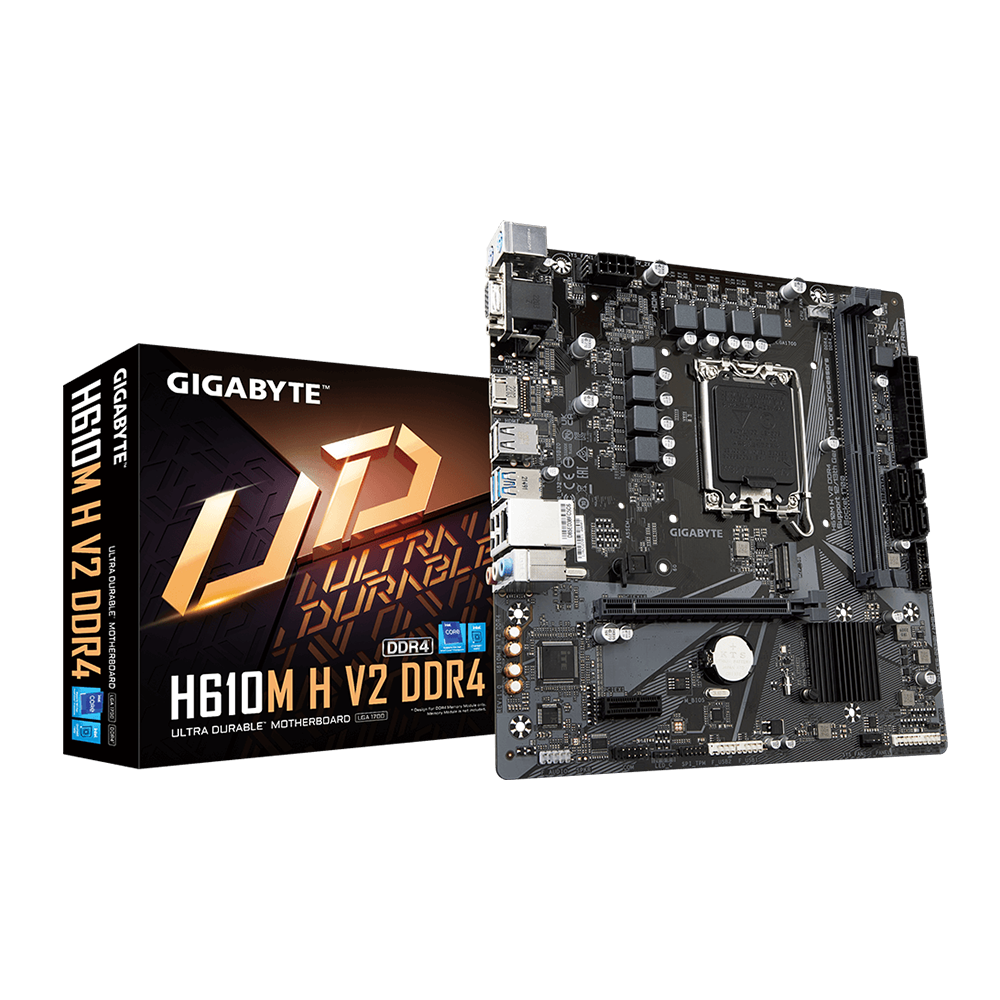

Gigabyte
Model

H610M H V2
Chipset

Intel H610 Express Chipset
Socket

Intel LGA1700
CPU Support

Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
Memory Support

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
DIMM Slots

2
Max Memory

Up to 64 GB
Expansion Slots

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface

Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Raid Support

No
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channe
LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps)
USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

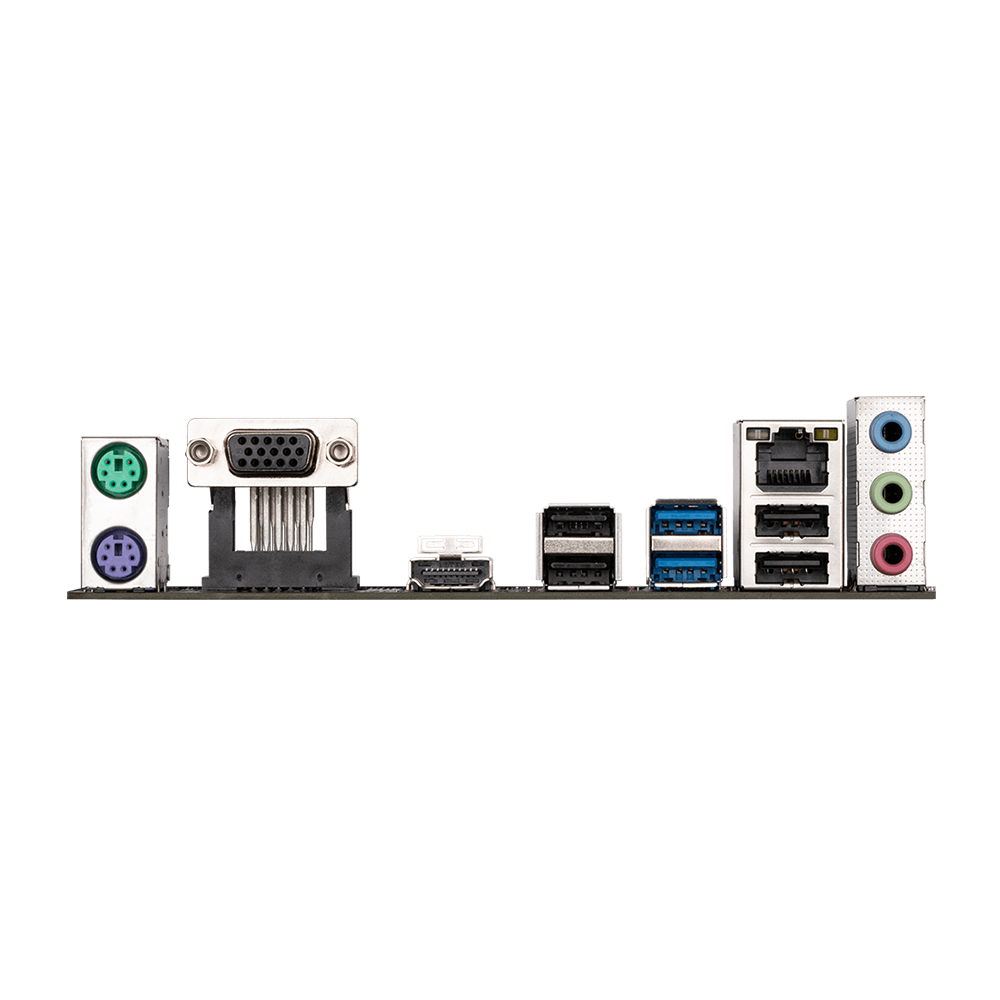

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller

iTE I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for APP Center
Support for Q-Flash
Support for Xpress Install
Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty

1 Year
