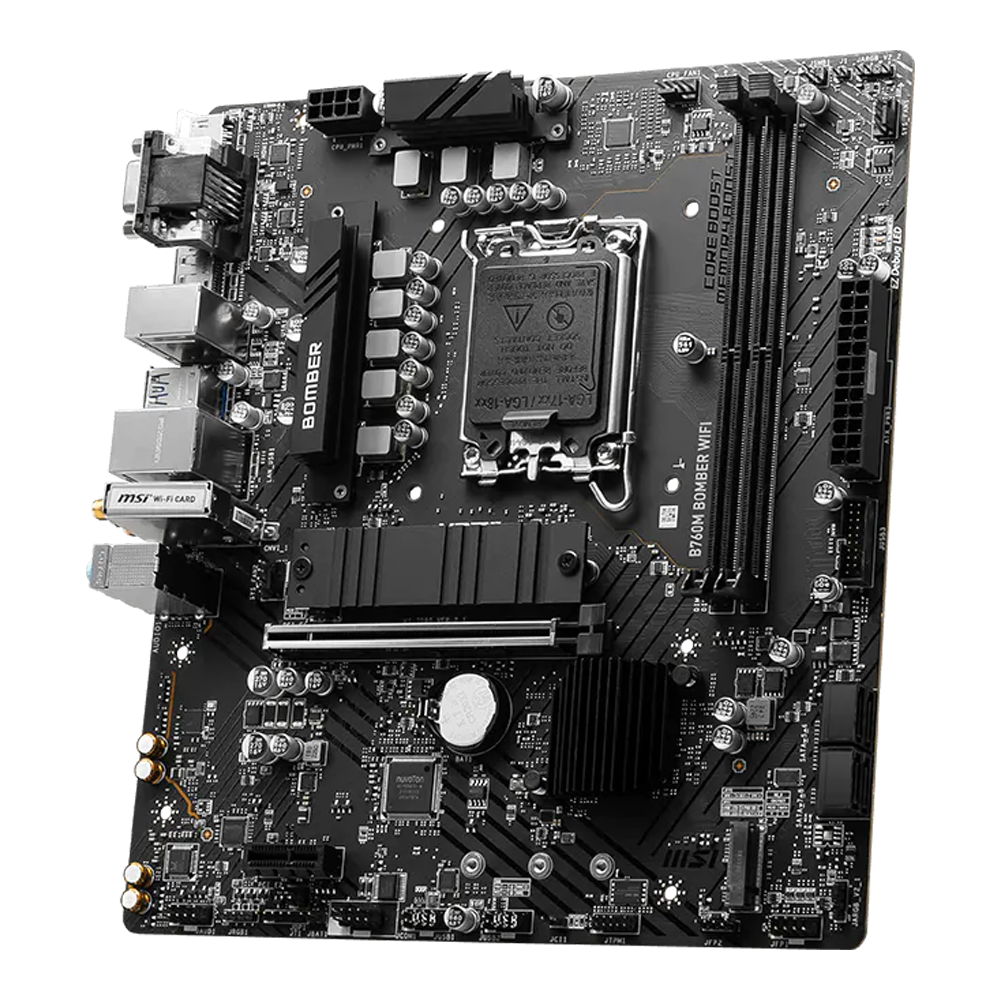

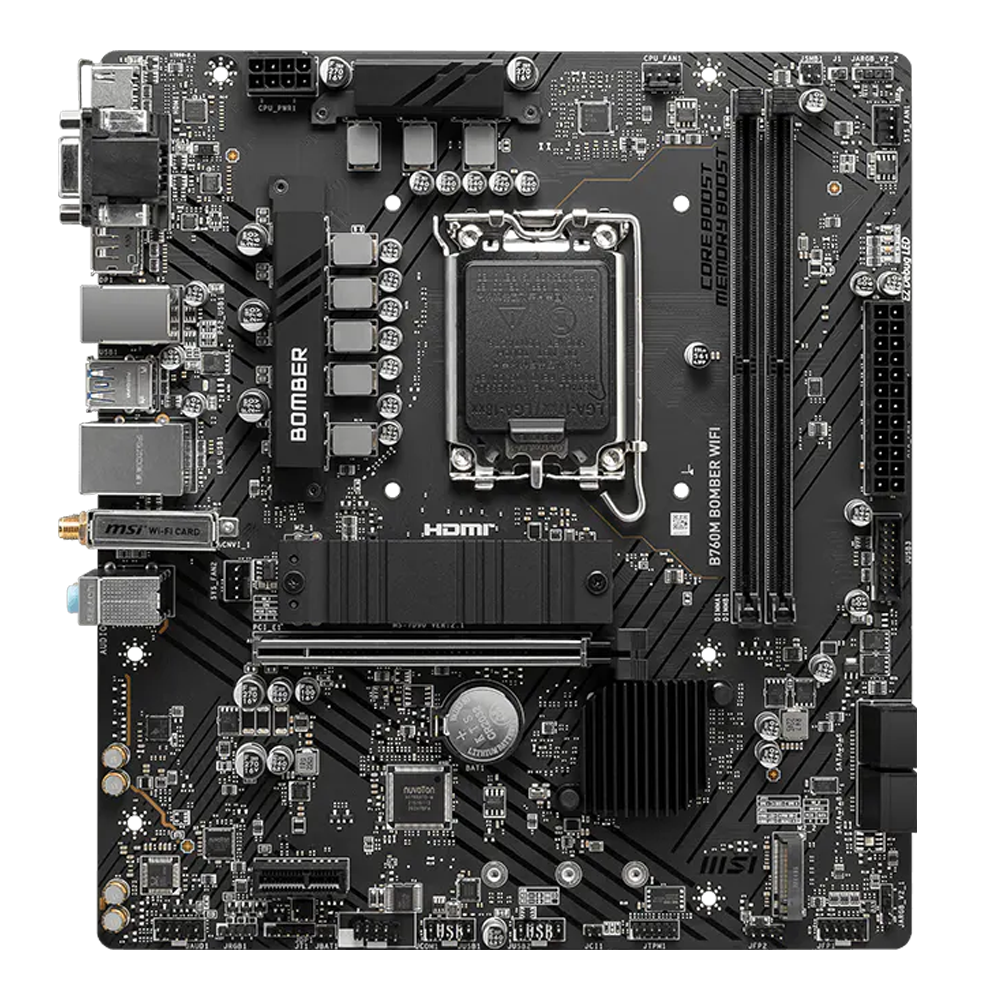

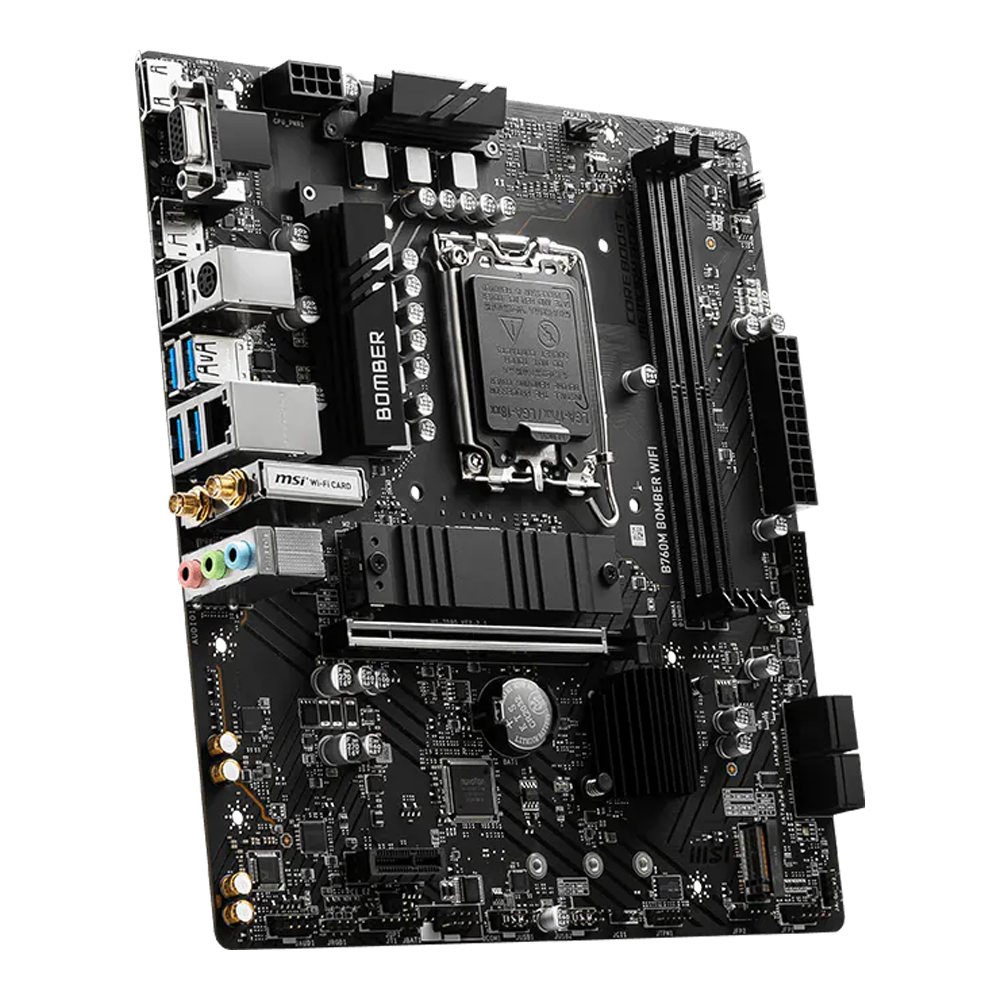

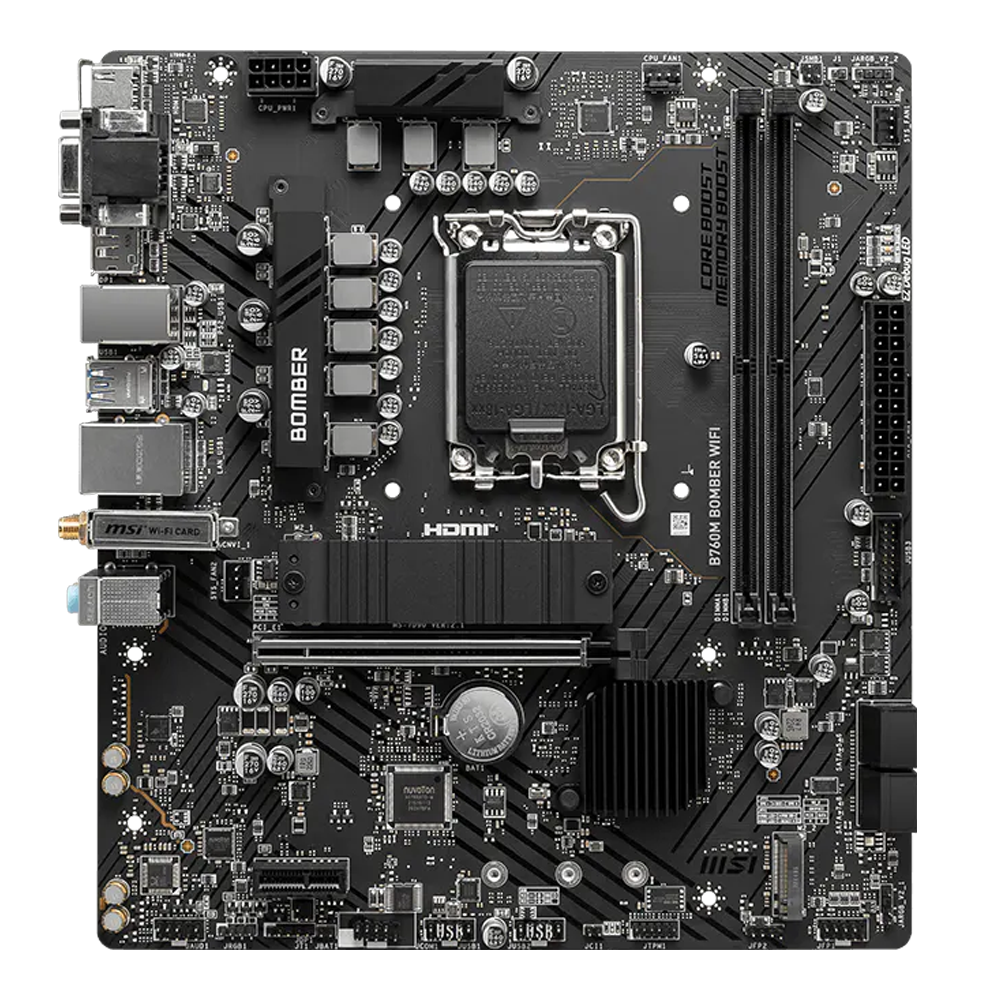

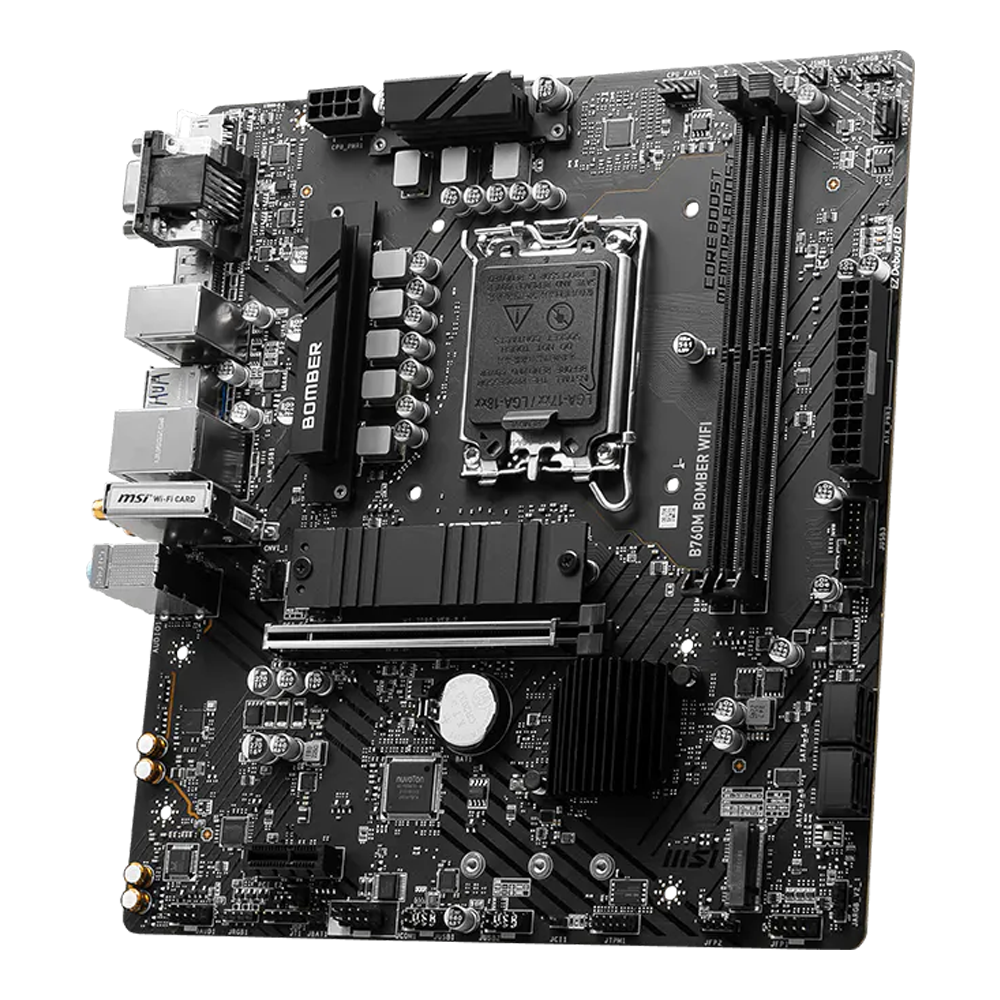

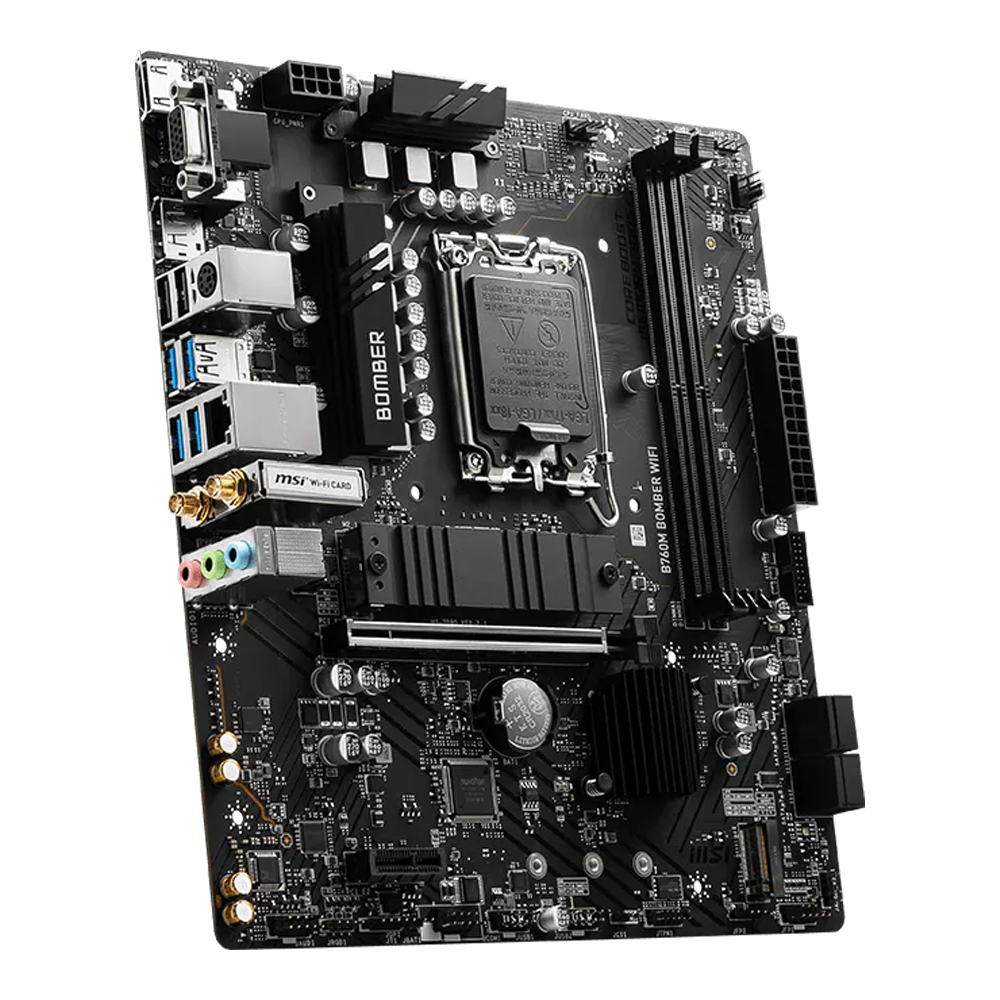

  • MSI B760M Bomber Wifi, DDR5, LGA1700 Motherboard
Brand

MSI
Model

B760M Bomber Wifi
Chipset

Intel B760
Socket

LGA1700
Memory Channel

Dual Channel DDR5
DIMM Slots

2
Max Memory

Up to 128 GB
Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage Interface

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Raid Support

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Onboard Graphics

1x HDMI™
1x DisplayPort
1x D-Sub
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

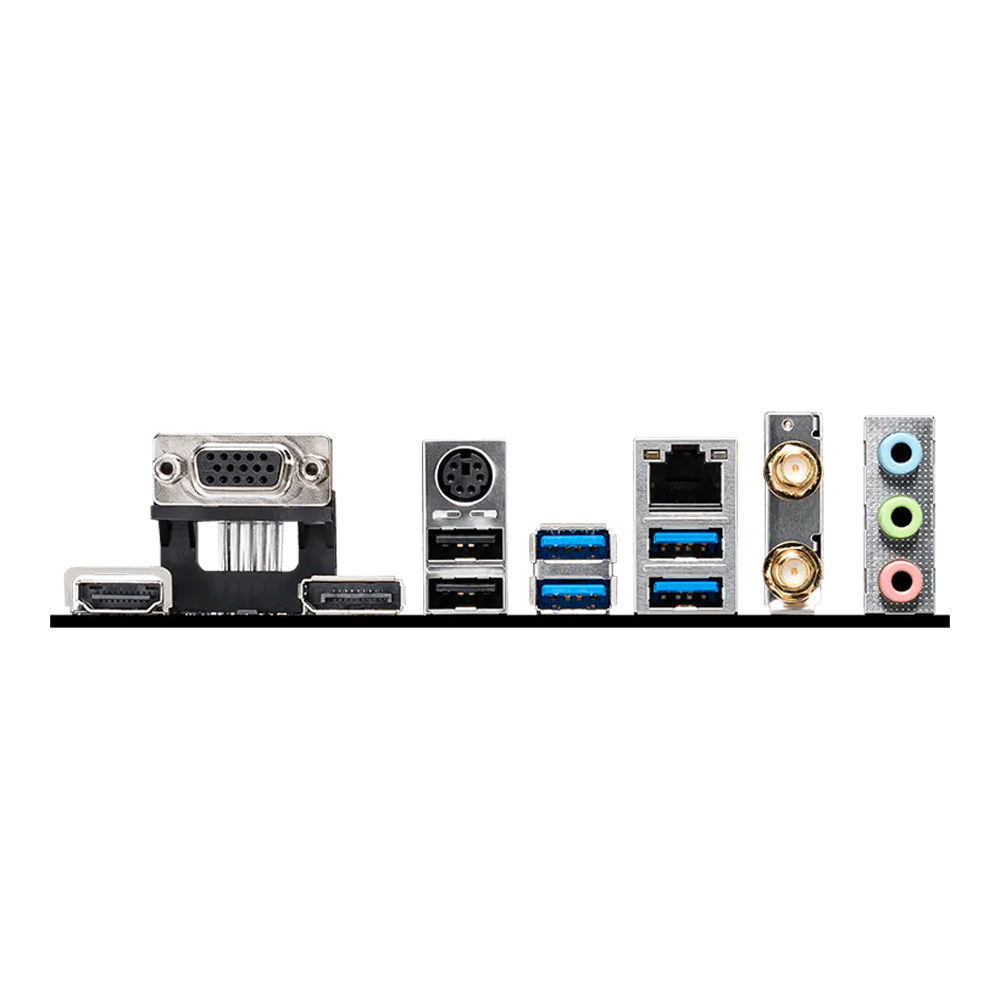

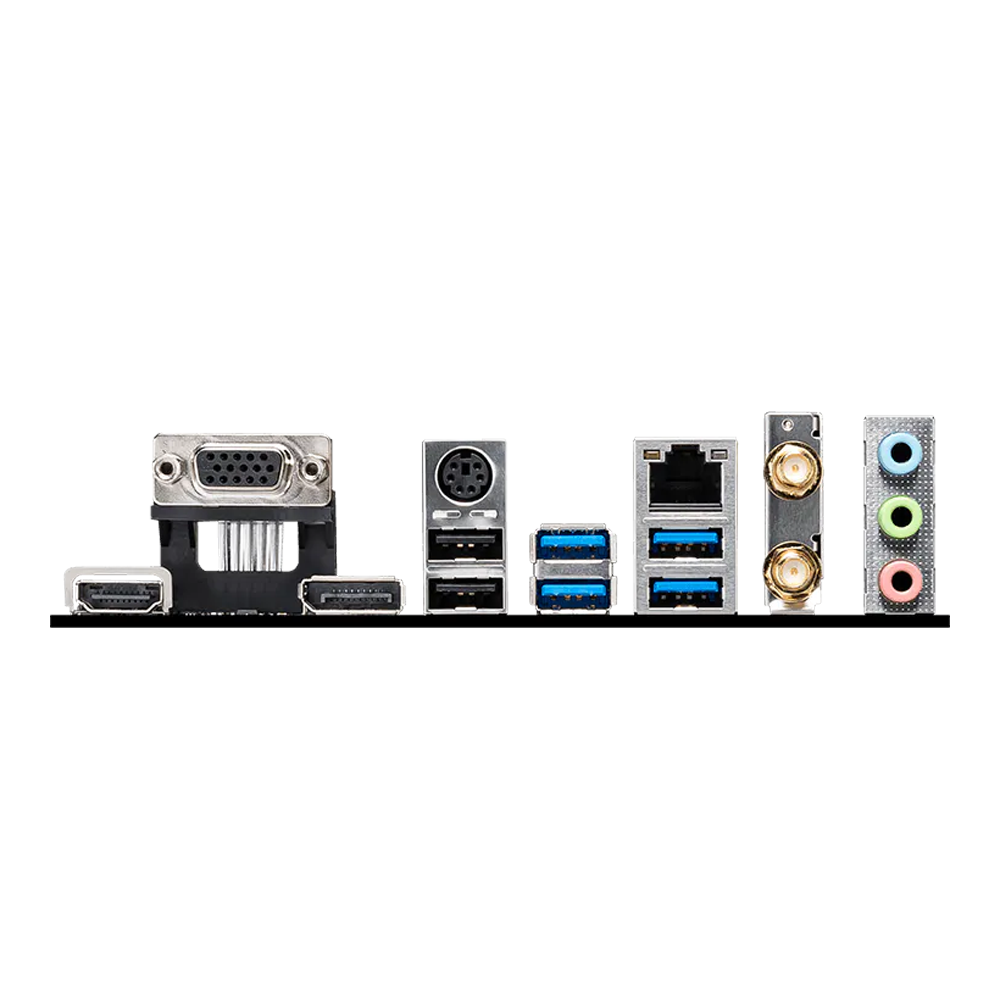

Back Panel Connectors

HDMI™
VGA
DisplayPort
Keyboard / Mouse
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
WiFi / BT

Intel Wi-Fi 6E, Bluetooth 5.3
Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 220mmx243.84mm
Warranty

1 Year
