Product Description

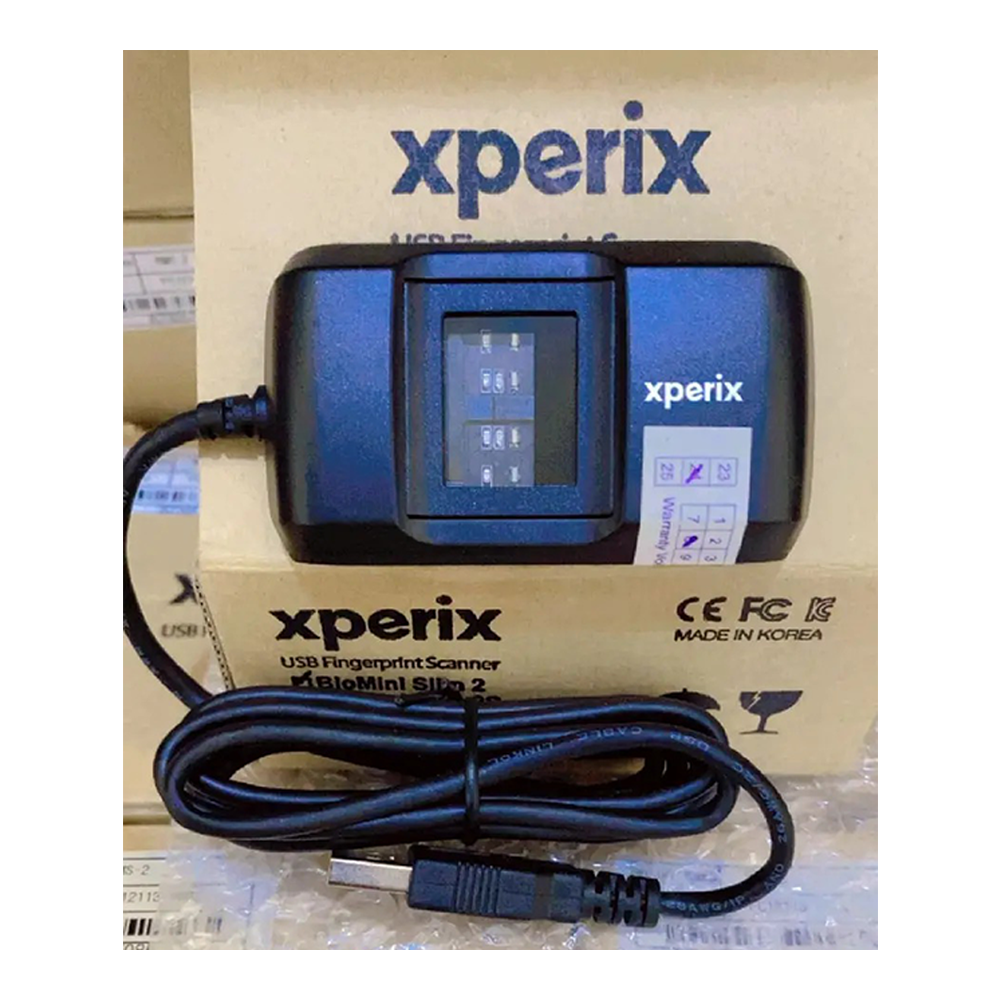

Suprema’s BioMini Slim 2 scanner range is known for offering rich features in a nicely designed, super thin package, and the BioMini Slim 2 does seem to deviate from the trend. It offers a host of cutting-edge technologies with a sleek design and a super compact form factor.

First and foremost, the BioMini Slim 2 is the world’s thinnest FBI PIV and FBI Mobile ID certified FAP20 optical fingerprint scanner. The thickness of the optical sensor measures a mere 13.5mm. At 16.5mm x 21.0mm, its platen size is way larger than what is required to be FAP20 certified.

Suprema has equipped the BioMini Slim 2 with MDR (Multi Dynamic Range) technology, which makes sure that fingerprint image quality stays unaffected even in the harshest lighting conditions. The MDR technology makes the BioMini Slim 2 immune to ambient lighting, and it can uphold image quality even in 100,000 LUX of direct light, which can be as intense as direct sunlight.

The BioMini Slim 2 is immune to fake fingerprint attacks as well, thanks to Suprema’s advanced Live Finger Detection technology, which can detect fingerprint spoofs made from different materials, including glue, clay, film, rubber, paper, silicon, and more.

Application Example
  • PC / network security
  • Smart card application
  • Time and attendance system
  • Public application
  • Health and medical
  • Telecommunication
  • Banking / finance
  • POS / mPOS / ATM / Kiosk
  • Enterprise
Features
  • FBI PIV/FIPS 201 and FBI mobile ID FAP20 certificates
  • NIST certified interoperable image and template format standards (ANSI-378/ISO 19794-2, ISO 19794-4)
  • Image compression standard (WSQ)
  • Advanced live finger detection (LFD) technology
  • World’s best performing fingerprint algorithm top results in NIST MINEX tests and FVC
  • FIPS 201 certified template extractor and matcher
  • Fast matching speed 100,000 match / second (with Intel Core 2 Duo)
  • USB 2.0 high speed interface
  • Supports multiple device handling
  • Automatic finger placement detection
  • Ergonomic indication LED
  • 500 dpi optical fingerprint sensor
  • Rugged IP65 dust and waterproof form factor
  • Large platen size 0.71” X 1.0”(18.0mm x 25.4mm)(FAP20 standard: 0.6” x 0.8”)
  • BioMini SDK for easy application software development
  • Supports Android / MS Windows / Linux
  • Supports multiple programming languages VC++, VB, VB.NET, C#, Java
  • Multi-threaded code design fully utilizing multi-core CPU power
  • Works under direct sunlight
Brand

Suprema ID

Model

BioMini Slim 2 Ultra-slim FAP20

Sensor Type

Optical

Image Resolution

500 PPI

Gray Scale

256 Level

Protection

IP65(Sensor Surface)

Live Fingerprint Detection

Supported

Platen Size (W x L)

18.0mm x 25.4mm (0.71” X 1.0”)

Sensing Area (W x H)

17.0mm x 25.0mm (0.67” x 0.99”)

Image Size

320 x 480 pixels

Template Size

1024 Bytes ( Configurable )

Enrolment Time

< 0.1 second

Verification Time

< 0.1 second

Identification Time

100,000 matches / second (with Intel Core 2 Duo)

Database

Microsoft Access (sample)

Interface

USB 2.0 Hi-Speed

Device Size

72.8 x 40.7 x 18.5 mm

Weight

0.91 kg

Supported OS

Android 4.1(Jelly Bean) or above
Windows 8, 7, Vista, XP, Server 2003/2008
Linux(Ubuntu, Devian, Fedora, OpenSUSE, Cent OS)

Warranty

One year limited
