Brand

Asus
Model

ROG STRIX Z790-H
Chipset

Intel Z790 Chipset
Socket

LGA1700
Memory Channel

Dual
DIMM Slots

4 x DIMM, Max. 192GB
Memory Support

DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Graphics

1 x DisplayPort
1 x HDMI port
Storage

4 x M.2 Slot
4 x SATA 6Gb/s Ports
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Ethernet

1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth v5.3
USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

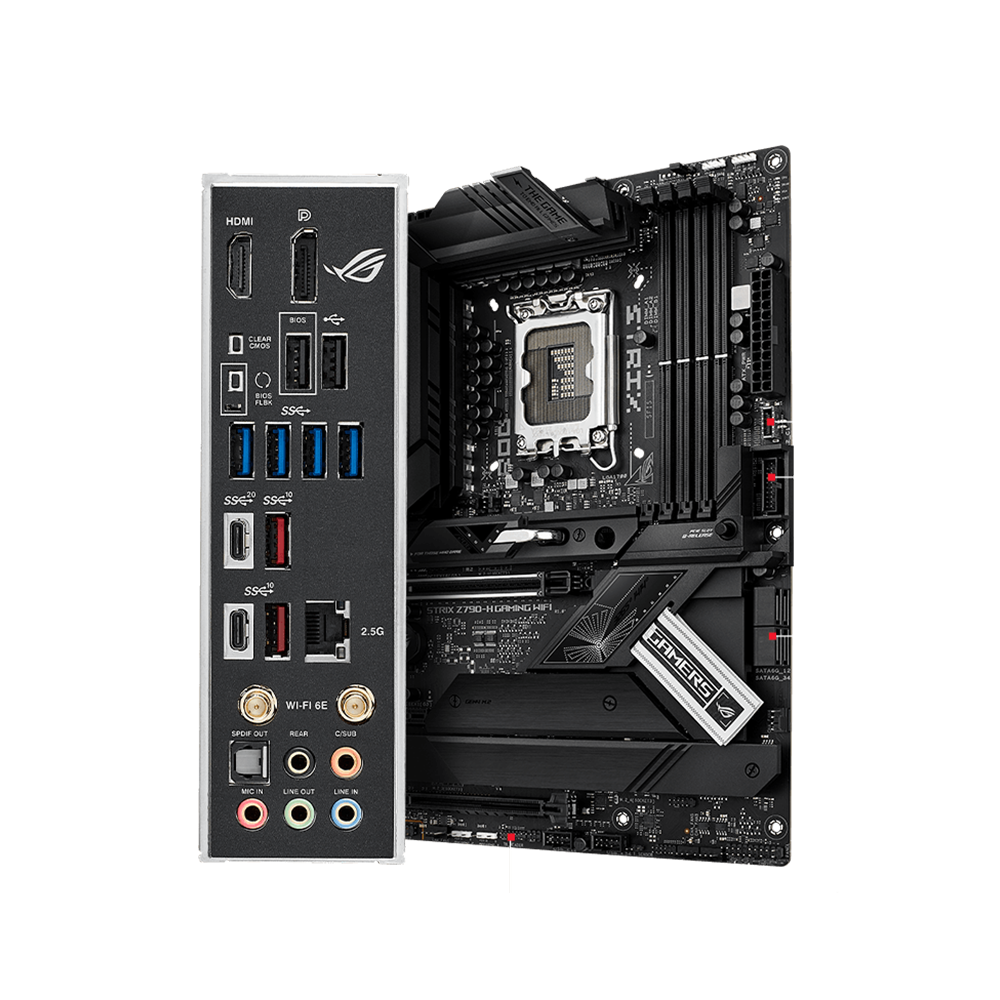

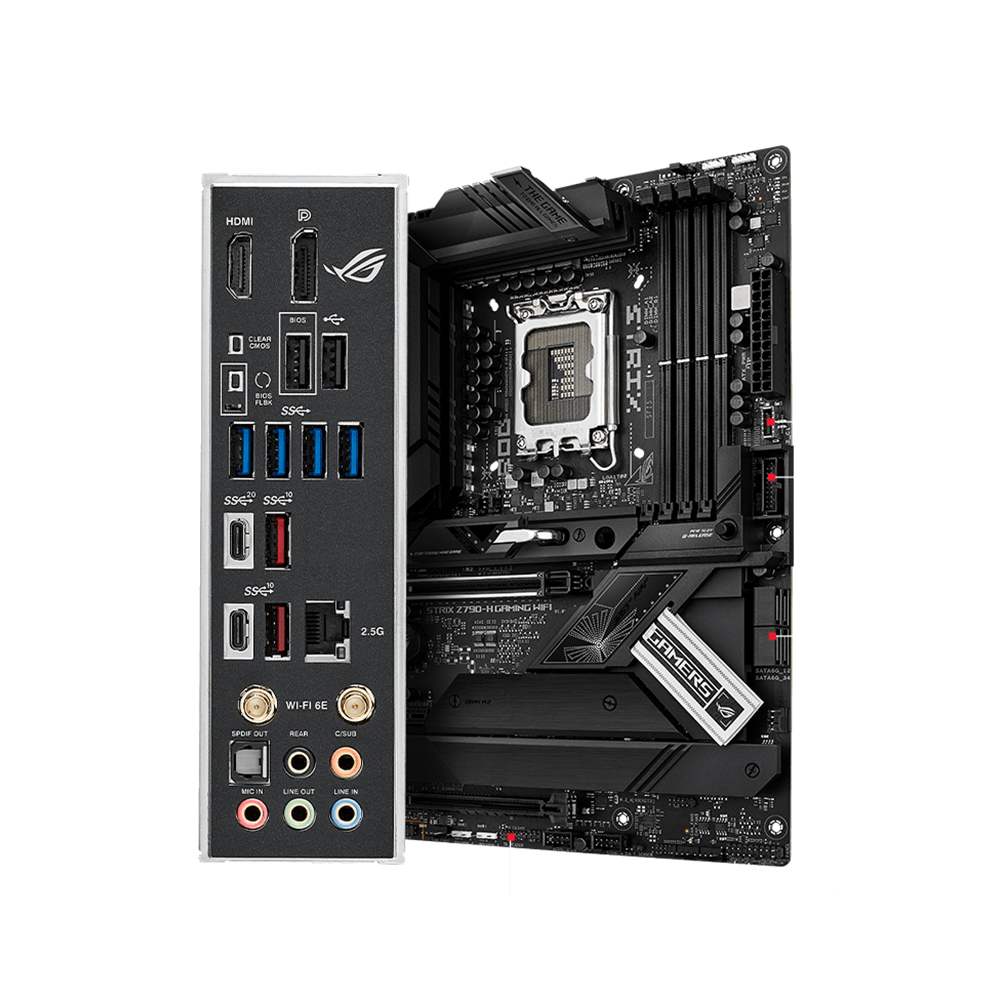

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Expansion Slots

Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
1 x PCIe 3.0 x1 slot
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty

1 Year
