Brand

Asus
Model

B850 MAX GAMING WIFI
Chipset

AMD B850 Chipset
CPU Support

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
Memory Channel

Dual
DIMM Slots

4 x DIMM slots, max. 256GB, DDR5
Memory Support

Supports up to
8400+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,
9000+MT/s(OC)**/8600+MT/s(OC)*** with Ryzen™ 8000 Series
Graphics

1 x DisplayPort 1.4
1 x HDMI Port 2.1
Storage

4 x M.2 slots
4 x SATA 6Gb/s Ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

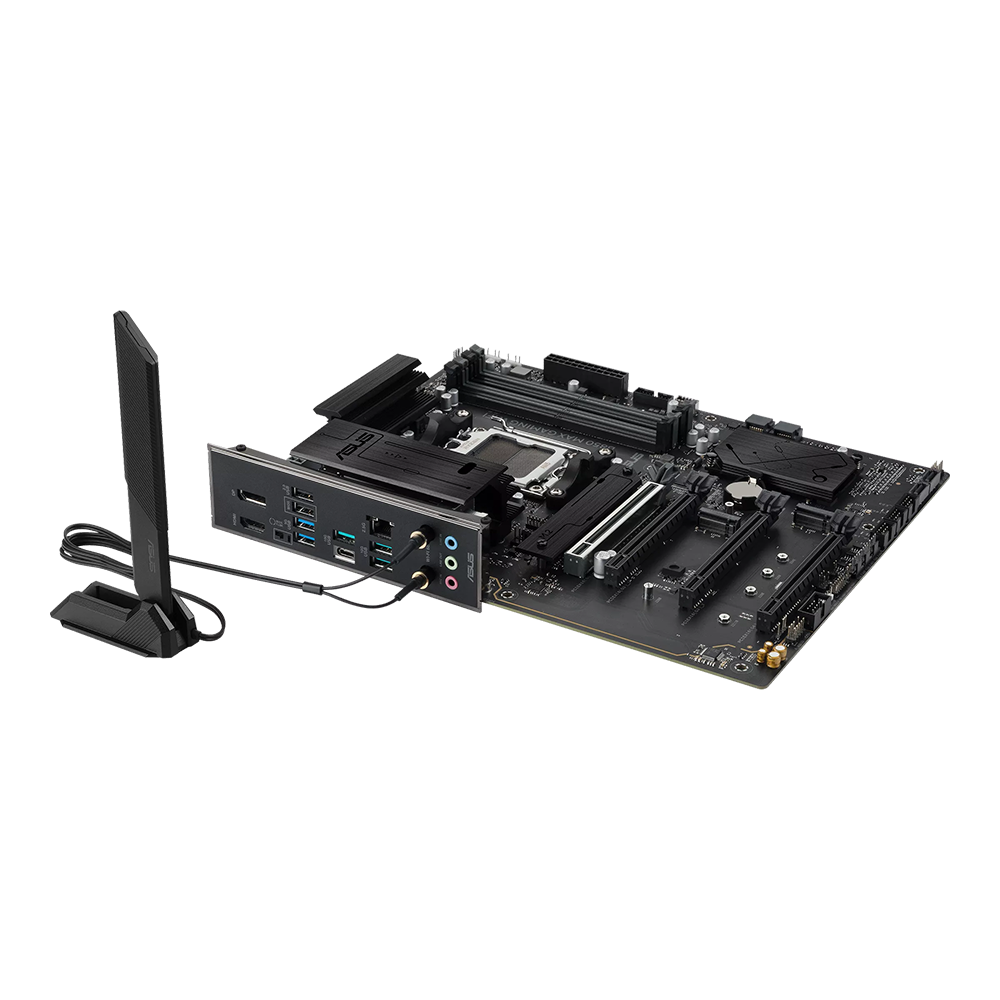

Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.4 (supports LE Audio)
USB

Rear USB (Total 8 ports)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Internal I/O Ports

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header

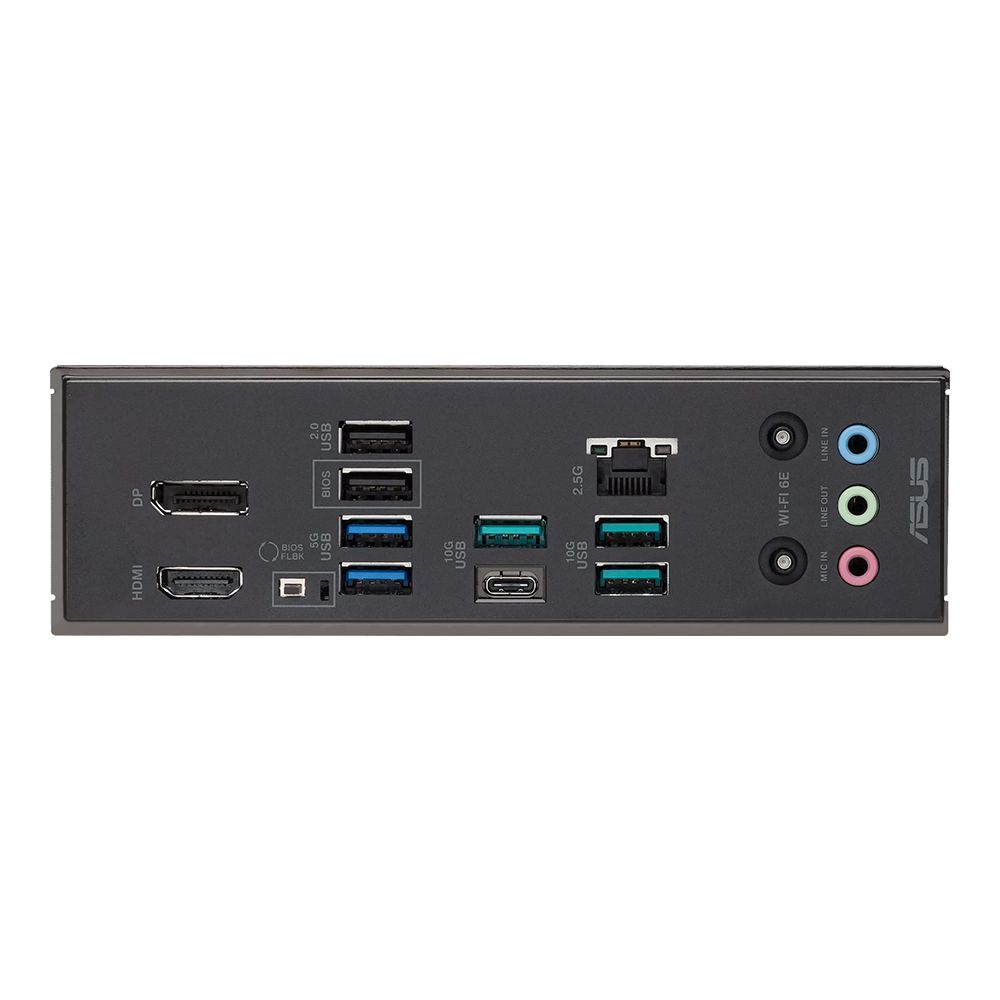

Back Panel I/O Ports

4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek® 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
BIOS

32MB (256Mb) Flash ROM, UEFI AMI BIOS
Form Factor

ATX Form Factor
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
Warranty

1 Year
