Brand

Donview

Model

DS-75IWMS-L05PA

Screen Size

75"

Panel Type

a-Si TFT LCD

Aspect Ratio

16:9

Backlight

LCD

Display Resolution

3840×2160

Refresh Rate (Hz)

60

Brightness

400 nits

Contrast Ratio

1200:1

Viewing Angles

178 Degree

Display Color

1.07B colors (10bit)

Touch Area (LxW)

1681.53 x 959.78 mm

Display Area (LxW)

1650.24 x 928.26 mm

Backlight Life (Hours)

120,000 hours (Min)

Glass Plate

Anti-glare (AG) Tempered Glass, Reflectivity < 1%

Hardness

Mohs 7

Thickness

3.2 mm

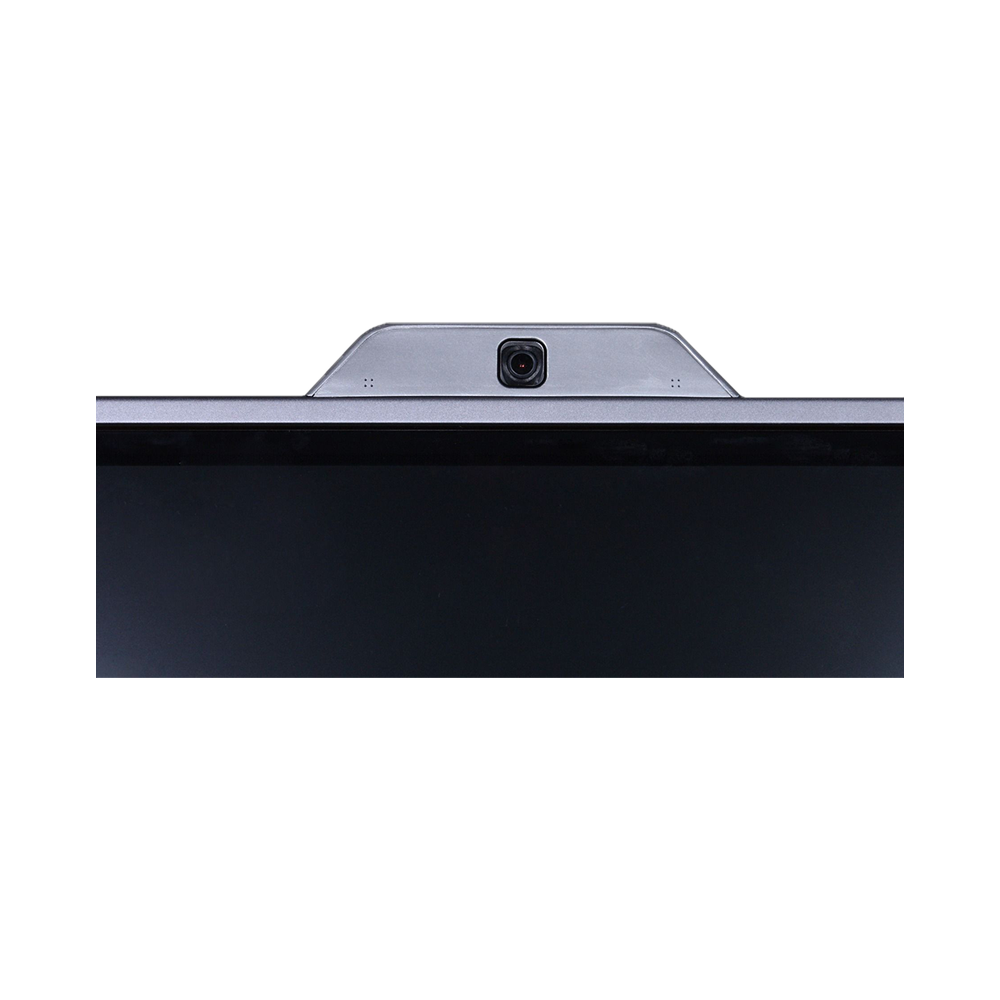

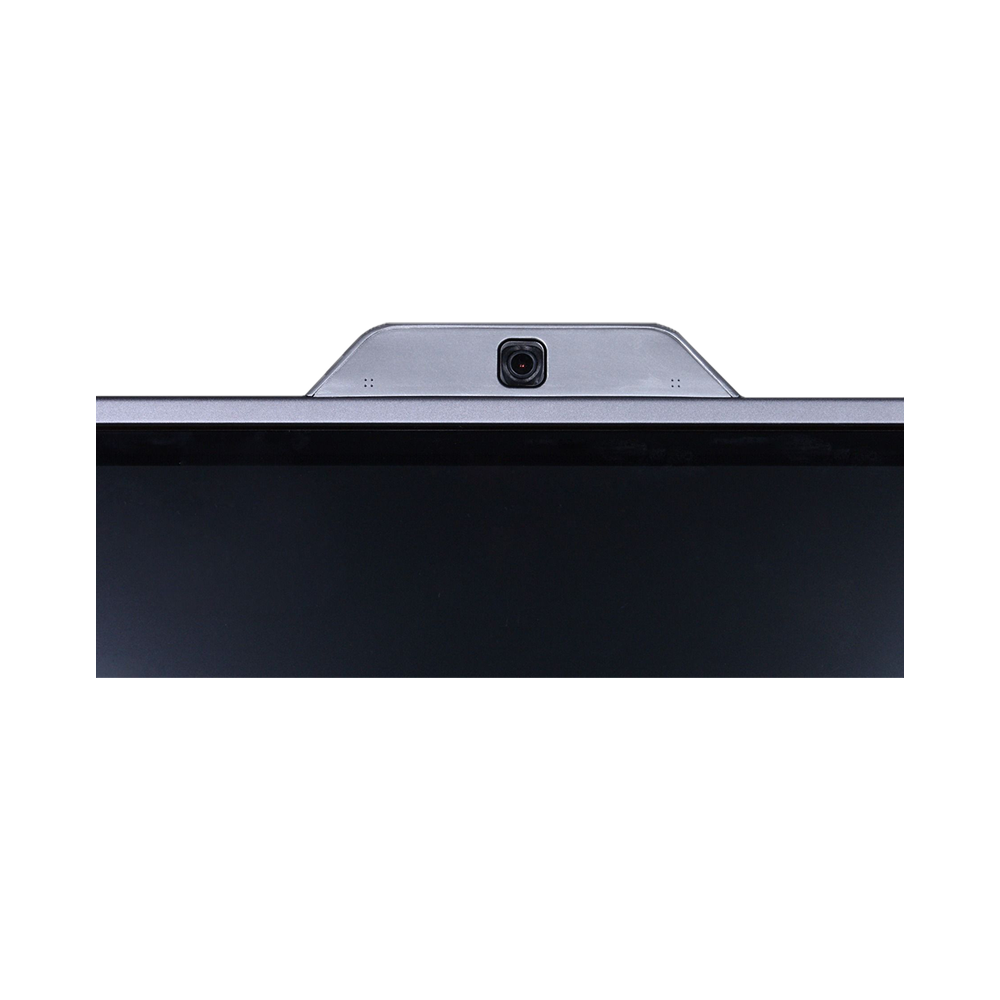

Webcam

Yes

Audio

2x 20W

Processor

ARM Cortex-A73*2 + Cortex-A53*2 1.7GHz.
GPU: MaliG51*4 600MHz

RAM

4GB

Storage

32GB

Ethernet

LAN: 10/100/1000Mbps
WiFi: IEEE 802.11a/b/g/n/ac (2.4GHz + 5GHz)
Bluetooth: 5.0

Front Ports

1x DP 1.2 (Input)
1x HDMI 2.0 (Input)
1x Type-C (Input) Multimedia, Data Transfer, Charging Combined

Ports (Rear)

1x HDMI 2.0 (Input)
1x USB Type-C 3.0
3x USB Type-A 3.0
1x USB Type-A 2.0 (Touch)
1x VGA (Input)
1x Audio In (3.5mm)
1x AV In
1x HDMI 2.0 (Output)
1x Spdif out (Optical)
1x Headphone Out 3.5mm
2x USB Type-A 3.0 (Public)
1x USB Type-A 2.0 (Android)
1x USB Type-A 2.0 (Touch)
2x RJ45
2x WiFi Antenna
1x Bluetooth Antenna
1x RS232

Touch Technology

Infrared 32 Points Touch, 20 Points Writing

Touch Accuracy

Minimum Touch Object 1mm

Response Time

Single: <5ms
Double: <7ms

Product Dimensions (LxWxT)

Physical (mm): 1718.28 x 1053 x 87.75 mm

Weight

Net: 54kg
Gross: 68kg

Embedded OS

Android 8

Power

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 330W (Max), 0.5W (Standby)

Color

Black

Warranty

1 Year
